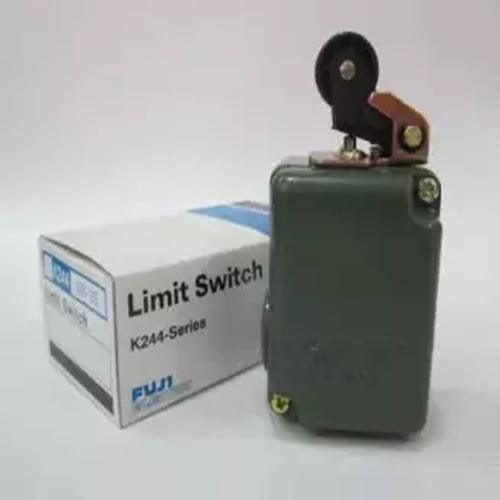

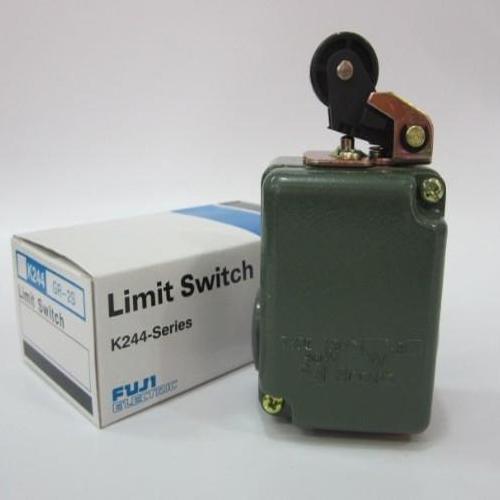

Control Limit switches K244-Series

Regular price Rs 830
Regular price Rs 900 Sale price Rs 830
Sale Sold out
BR4837

Control Limit switches  K244-Series in Pakistan BR4837

Description

AL-S series limit switches feature a forced contact opening mechanism. Under abnormal conditions, the mechanism forces the contacts open to prevent pitting and fusing. Gold-plated silver contacts with scrubbing action have high reliability.The K244 series is provided with four different kinds of contact operating actions: standard normal stroke, snap action, make-before-break, and extended stroke.

Features:

  • Insulation resistance: Over 100MΩ at 500V DC
  • Dielectric strength: 2500V AC rms 1 minute
  • Max. operating cycle: 3000 cycles/h
  • Life expentancyMechanical: 10 million operationsElectrical:K244-2, 2U and 2V3.3 million operations at 24 to 550V AC 3AK244-2S1.3 million operations at 24 to 550V AC 3A

Specifications:

Model Name/Number AL-S, K244
Brand Fuji
Frequency 50 Hz
Low Temperature -55 deg C
Voltage 220-240 V
Power Source Electric



Best Online Shopping website for Control Limit switches  K244-Series. Here you get Control Limit switches  K244-Series at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package Includes:

1 x Control Limit switches  K244-Series
