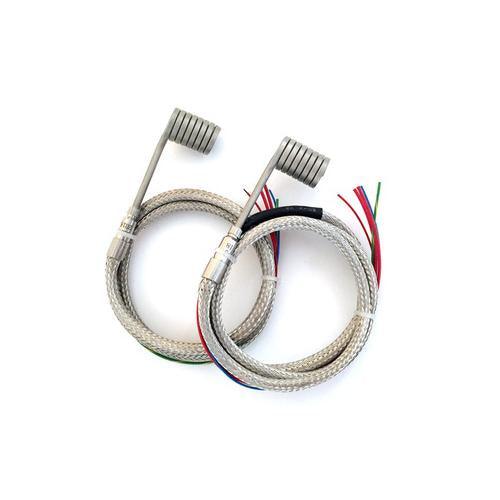

Coil Spring Hot Runner Heater with Thermocouple for Heat Exchange In Pakistan BR3197

Description

Hot runner coil heaters are made of nickel chrome resistance wire placed inside a chrome-nickel steel tube filled with MgO powder and compacted for faster and efficient heat transfer. The heaters are annealed to acquire malleability for bending into any shape. Hot runner heaters with built-in thermocouple are also available. Hot runner bushes are produced with hot runner heaters of the different cross ...

Product detail

Hot runner coil heaters are made of nickel chrome resistance wire placed inside a chrome-nickel steel tube filled with MgO powder and compacted for faster and efficient heat transfer. The heaters are annealed to acquire malleability for bending into any shape. Hot runner heaters with built-in thermocouple are also available. Hot runner bushes are produced with hot runner heaters of the different cross-section with inner brass and an outer stainless steel cover.

Specification

• Sheath Material
• Cr Ni-Steel
• Insulation Material
• MgO
• Resistance Wire
• Ni Cr 80-20
• Maximum Sheath Temperature
• 700°C
• Die Electrical Strength
• 800V A/C
• Insulation
• >5 M W
• Thermocouple
• J type (Standard) or K type
• Length Tolerance (Straight)
• 5%
• Wattage Tolerance
• +/- 10% (+/- 5% Available Upon Request)
• Resistance Tolerance
• +/- 10% (+/- 5% Available Upon Request)
• Unheated Length
• 35mm (Standard)
• Dimensional Tolerance
• Coil I.D +/- 0.1 to 0.2mm Coil Length +/- 1mm

Online Shopping website for Coil Spring Hot Runner Heater with Thermocouple for Heat Exchange. Here you get Coil Spring Hot Runner Heater with Thermocouple for Heat Exchange at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package Include

1 x  Coil Spring Hot Runner Heater with Thermocouple
