A Push Button switch is a type of switch which consists of a simple electric mechanism or air switch mechanism to turn something on or off. ... This means that when a button is pressed it can cause another button to release.

Features:

• The COB series are used in controlling circuits of AC 50HZ or 60HZ, Voltage to 660V, DC voltage below 400v, it is used for controlling signal and interlocking.
• The main body adopts zinc alloy and high-grade anti-flaming plastic, the contact adopts a circuit of AC voltage 380v, 50hz or 60hz, DC voltage below 380V.
• Used as kinds of indication signal, warning signal, accident signal, and other signals.
• These are rainproof crane control push button switch which is newly developed products.
• These are made up of very high-quality fine plastic, and their designs are very beautiful.
• These have advanced and big contact capacity, mechanical interlocking, and if necessary they can achieve interlock circuits to assure more safety and reliable use.
• The products matched cable jacket and waterproof rubber sealing strip, have a good (IP65 level) performance of dust and rain.
• So these are most suitable for the remote control in an outdoor, rainy and snowy, dusty and damp environment, such as electric hoist, open conveyor belt, building line, etc.

Specifications:

• Model: COB-63
• Material: plastic
• Waterproof: yes
• Colour: Orange.
• Ambient operating temperature: -20 ~ + 131 F.
• Contact structure: composite button.
• Contact resistance: 50 (Ω)
• Insulation resistance: 50 (MΩ).
• Push buttons: 6 ways, up, down, east, west, north, south.
• Type of contact: momentary.
• Easy to use and easy to install.
• Small size and easy to carry.

Package Includes:

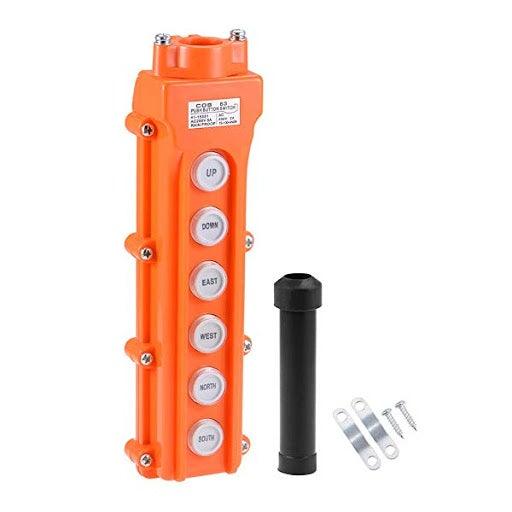

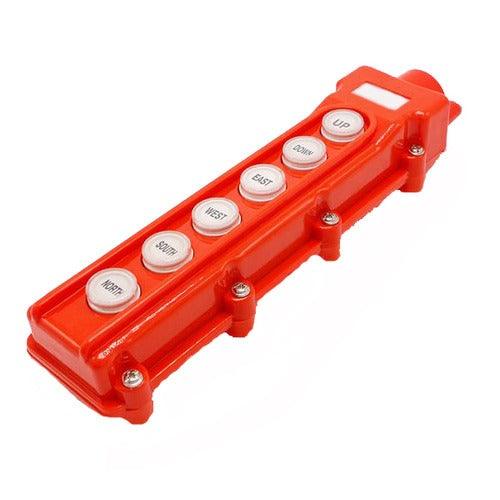

1 x COB 63 Push Button Switch Rain Proof
