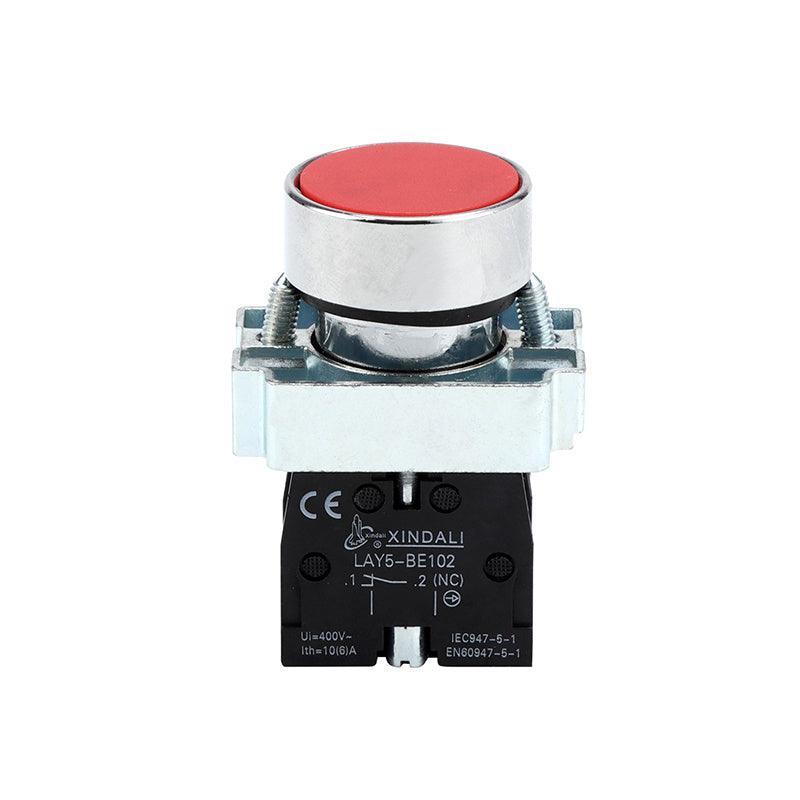

CNC Push Buttons LAY5 in Pakistan

1 total reviews

Regular price Rs 315
Regular price Sale price Rs 315
Sale Sold out
BR7749
Type

The push button series are used in controlling circuit of AC voltage up to 660V/AC50Hz or 60Hz, and DC voltage below 400V. It is used for controlling signal and interlocking purposes. The main body of the push buttons adopts zinc alloy and high-grade anti-flam plastic. The contact adopts special silver alloy in order to enjoy the benefit of high anti-electrical erosion. The signal lamp series are suitable for electrical appliances circuit of AC voltage up to 380V/50Hz, and DC voltage below 380V. It is ideal for using as indicating signals, warning signals, emergency signals, etc. Our products comply with GB/T14048.1 and IEC60947-5-1, all products are CE, ISO9001, ROHS and UL certified.

Specification:

  • Model: LAY5 series
  • Standard: IEC/EN 60947-5-1
  • Use condition: 415V/1.9A(AC-15) or 250V/0.27A(DC-13)
  • Frequency: 50/60Hz
  • Drill Plan: Φ 22mm
  • Head colors: Red, Black, Green, Blue, Yellow, White
  • Ambient Temp: -5~40
  • Head: Flush head, Mushroom head, selector switch
  • Contact type: N/O, N/C, N/C+N/O, N/O+N/O, N/C+N/C
  • Certificate: ISO9001: 2000, ISO14001: 1996, CE

Industryparts.pk is the Best Online Shopping website for CNC Push Buttons LAY5 in Pakistan. We deliver in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package includes:

    1 x CNC Push Buttons LAY5

CNC Push Buttons LAY5 in Pakistan

Description

The push button series are used in controlling circuit of AC voltage up to 660V/AC50Hz or 60Hz, and DC voltage below 400V. It is used for controlling signal and interlocking purposes. The main body of the push buttons adopts zinc alloy and high-grade anti-flam plastic. The contact adopts special silver alloy in order to enjoy the benefit of high anti-electrical erosion. The signal lamp series are suitable for electrical appliances circuit of AC voltage up to 380V/50Hz, and DC voltage below 380V. It is ideal for using as indicating signals, warning signals, emergency signals, etc. Our products comply with GB/T14048.1 and IEC60947-5-1, all products are CE, ISO9001, ROHS and UL certified.

Specification:

  • Model: LAY5 series
  • Standard: IEC/EN 60947-5-1
  • Use condition: 415V/1.9A(AC-15) or 250V/0.27A(DC-13)
  • Frequency: 50/60Hz
  • Drill Plan: Φ 22mm
  • Head colors: Red, Black, Green, Blue, Yellow, White
  • Ambient Temp: -5~40
  • Head: Flush head, Mushroom head, selector switch
  • Contact type: N/O, N/C, N/C+N/O, N/O+N/O, N/C+N/C
  • Certificate: ISO9001: 2000, ISO14001: 1996, CE

Industryparts.pk is the Best Online Shopping website for CNC Push Buttons LAY5 in Pakistan. We deliver in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package includes:

    1 x CNC Push Buttons LAY5

CNC Push Buttons LAY5 in Pakistan
