A limit switch is a switch operated by the motion of a machine part or the presence of an object. A limit switch can be used for controlling machinery as part of a control system, as a safety interlock, or as a counter enumerating objects passing a point.

Features:

1. Applicable to the electric circuit of voltage: ≤ 380V 50/60Hz (AC Ue) & ≤ 220V 50/60Hz (DC Ue)

2. Working current: ≤ 5A (AC Ie)  &  ≤ 0.15A (DC Ie)

3. Widely used in Direction changeover, Speed limit, Travel/procedure control, and Movement automation in machines.

Specifications:

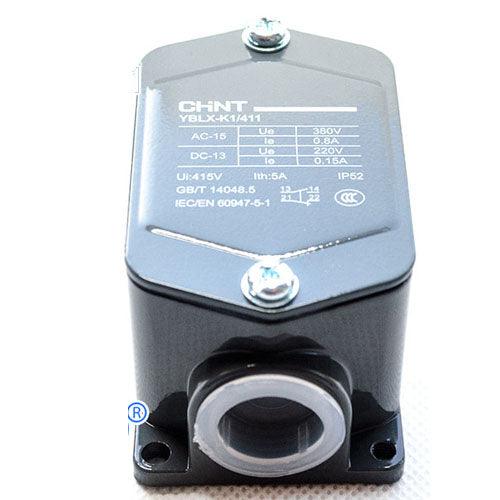

• Model: YBLX-K1/411
• Type: Roller Plunger Type travel switch
• Ingress protection: IP52
• Conventional thermal current (Ith): 5A
• Rated voltage: 380V AC / 220V DC
• Rated control current: AC 5A / DC 0.15A
• Operation frequency: 20 times / minute
• On-load factor: 40%
• Life span:
  • Mechanical: 600,000 times
  • Electrical: 300,000 times
• Ambient temperature: -5°C - +40°C
• Relative humidity: ≤ 85%(20°C)
• Altitude: ≤ 2000 meters
• Voltage resistance:
  • Between terminals at same levels (1140V)
  • Between live parts and grounding (1890V)
  • Between terminal and dead metal parts (2500V)
• Maximum operating force (max OF): 20N
• Maximum operating range ( max PT): 5mm
• Minimum overtravel (min OT): 5mm
