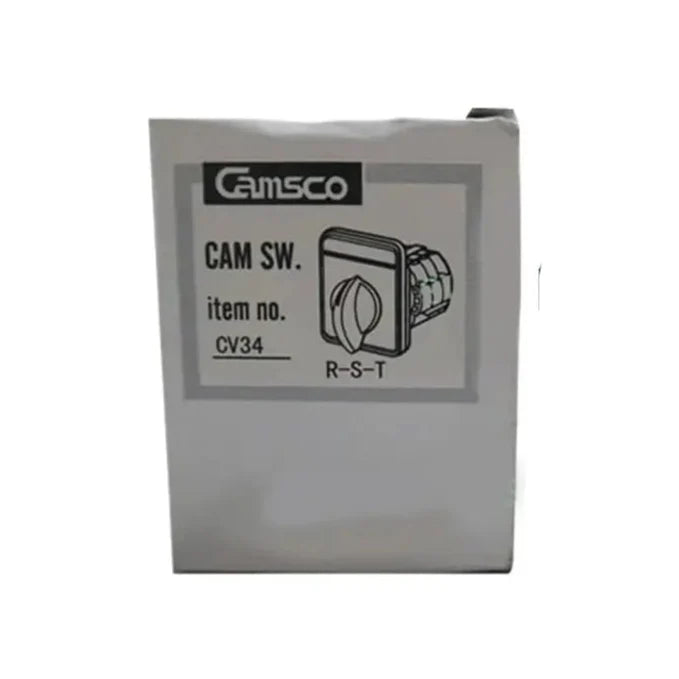

CAMSCO CV-34 VOLTMETER SELECTOR SWITCH in Pakistan
SKU:BR12516
Couldn't load pickup availability

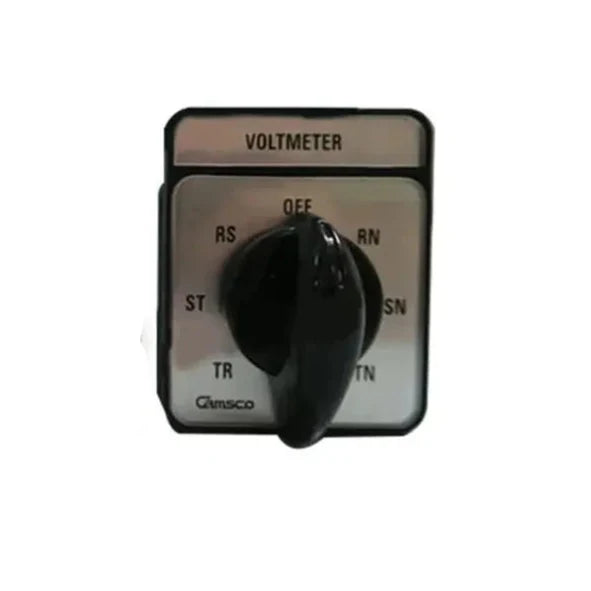

The CAMSCO CV-34 is a switch used to select which voltage you want to measure. It's like a dial that lets you choose between different circuits or points in a system to check their voltage. This is useful in situations where you need to monitor multiple voltages with a single voltmeter, saving space and making testing more convenient. Instead of having to move the voltmeter's probes to different locations, you simply turn the CV-34 switch to the desired position.
Features of CAMSCO CV-34 VOLTMETER SELECTOR SWITCH:
Silver-Alloy Contacts: Ensures reliable and accurate operation with good conductivity.
Sliding Contacts: Provides smooth switching action and long-term durability.
Compliant with Standards: Meets EN60947, VDE-0660, and IEC-947 standards, ensuring safety and quality.
Rear Wiring: Simplifies installation and maintenance.
Multiple Stages: The CV-34 is a 3-stage switch, suitable for 3-phase 4-wire systems.
Specifications of CAMSCO CV-34 VOLTMETER SELECTOR SWITCH:
Contact Rating: 16A 300VAC (This means it can handle up to 16 Amps at 300 Volts AC)
Switch Type: Rotary Cam Switch
Number of Stages: 3 (for 3-phase 4-wire systems)
Name Plate Frame Size: Available in 48x60mm and 60x73mm
Suitable for: 3-phase 4-wire systems
Uses:
Monitoring Voltage in 3-Phase Systems: Used to select and measure voltage between different phases and neutral in a 3-phase 4-wire electrical system.
Switchboards and Control Panels: Commonly found in electrical panels to provide convenient voltage monitoring.
Industrial Equipment: Used in various industrial machinery and equipment that utilize 3-phase power.
Benefits:
Convenient Voltage Measurement: Allows users to check multiple voltages with a single voltmeter, eliminating the need to move test leads.
Space Saving: Reduces the number of instruments required for voltage monitoring.
Improved Efficiency: Makes voltage testing quicker and easier, saving time and effort.
Enhanced Safety: Provides a safe and reliable way to switch between different voltage sources
Package includes:

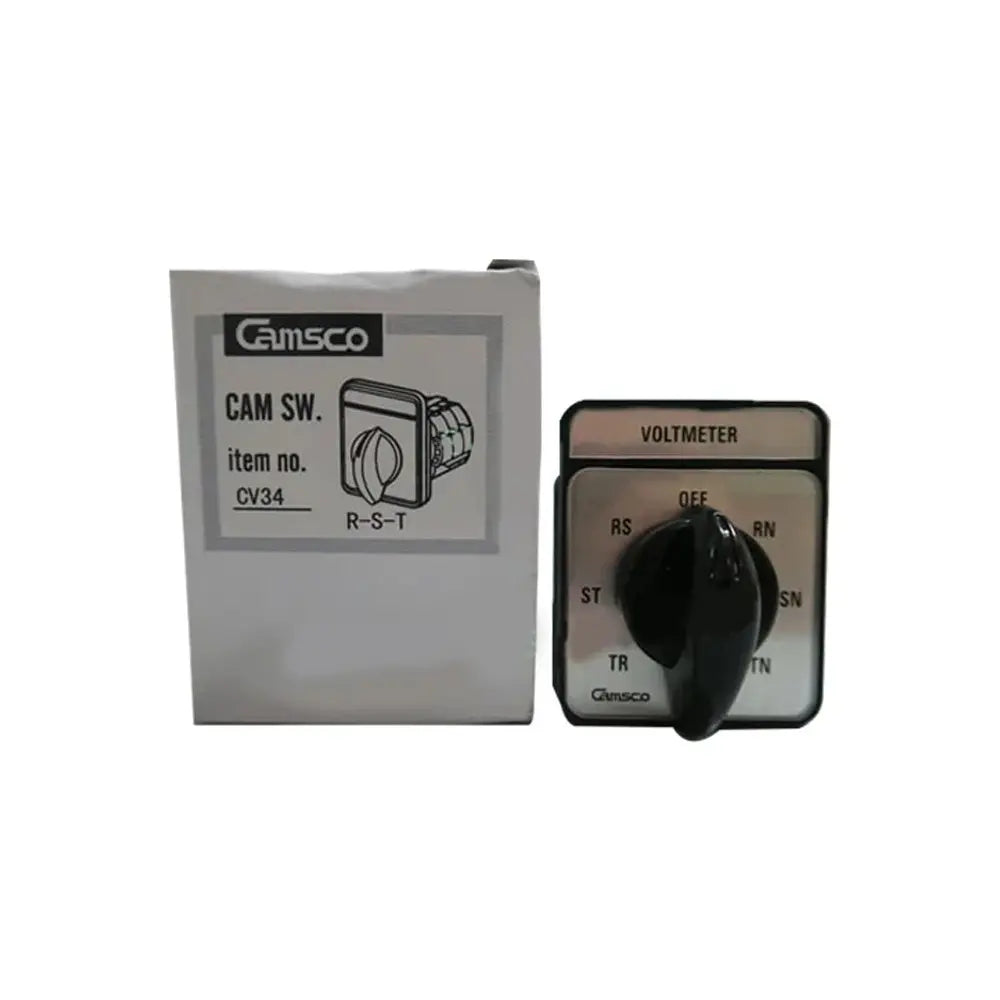

- 1x CAMSCO CV-34 VOLTMETER SELECTOR SWITCH
Industryparts.pk is the Best Online Shopping website for CAMSCO CV-34 VOLTMETER SELECTOR SWITCH. Here you get CAMSCO CV-34 VOLTMETER SELECTOR SWITCH at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
