C.LBE CLBDF‑32LB 10×38 PV DC Fuse Holder + 25A gPV Fuse in Pakistan

C.LBE CLBDF‑32LB 10×38 PV DC Fuse Holder
Designed for DC safety, it shields panels, inverters and combiner boxes from short circuits and reverse currents. The flip‑open, touch‑safe body allows quick fuse replacement and DIN‑rail mounting in compact enclosures.

Rated up to 550V DC, the included 10×38 gPV cartridge delivers dependable breaking capacity for modern 1‑string and 2‑string arrays. Screw terminals accept 2.5–10 mm² PV cable with solid clamping.

It reduces nuisance trips, minimizes arc risk, and meets typical IEC gPV application needs. Choose multiple units for series/parallel arrays and label each string for faster service and easier audits.

Features of C.LBE CLBDF‑32LB 10×38 PV DC Fuse Holder:

• 10×38 PV DC fuse holder with 25A gPV fuse
• Up to 550V DC rating (gPV)

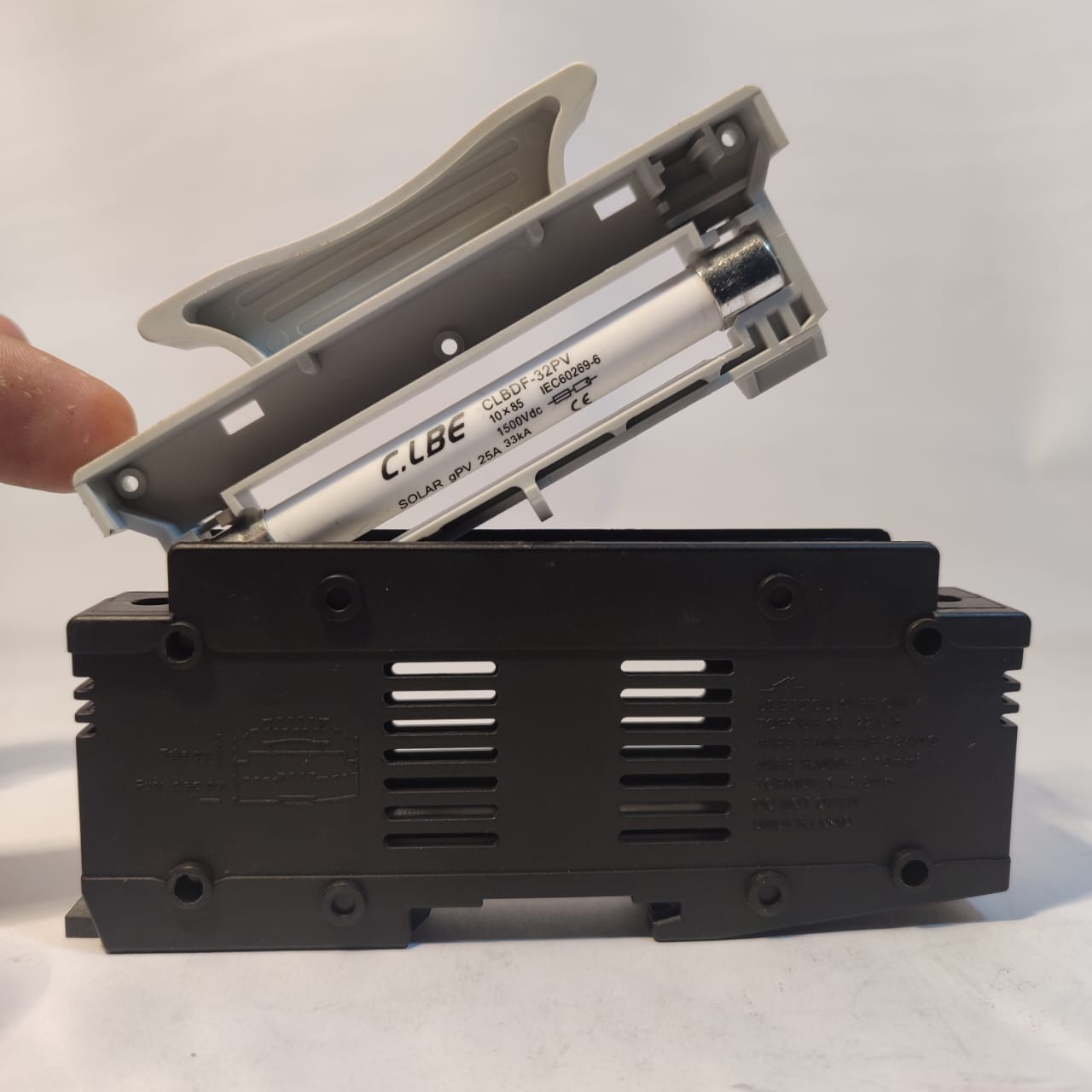

• Touch‑safe flip‑open design, DIN‑rail mount
• 2.5–10 mm² screw terminals, strong clamping

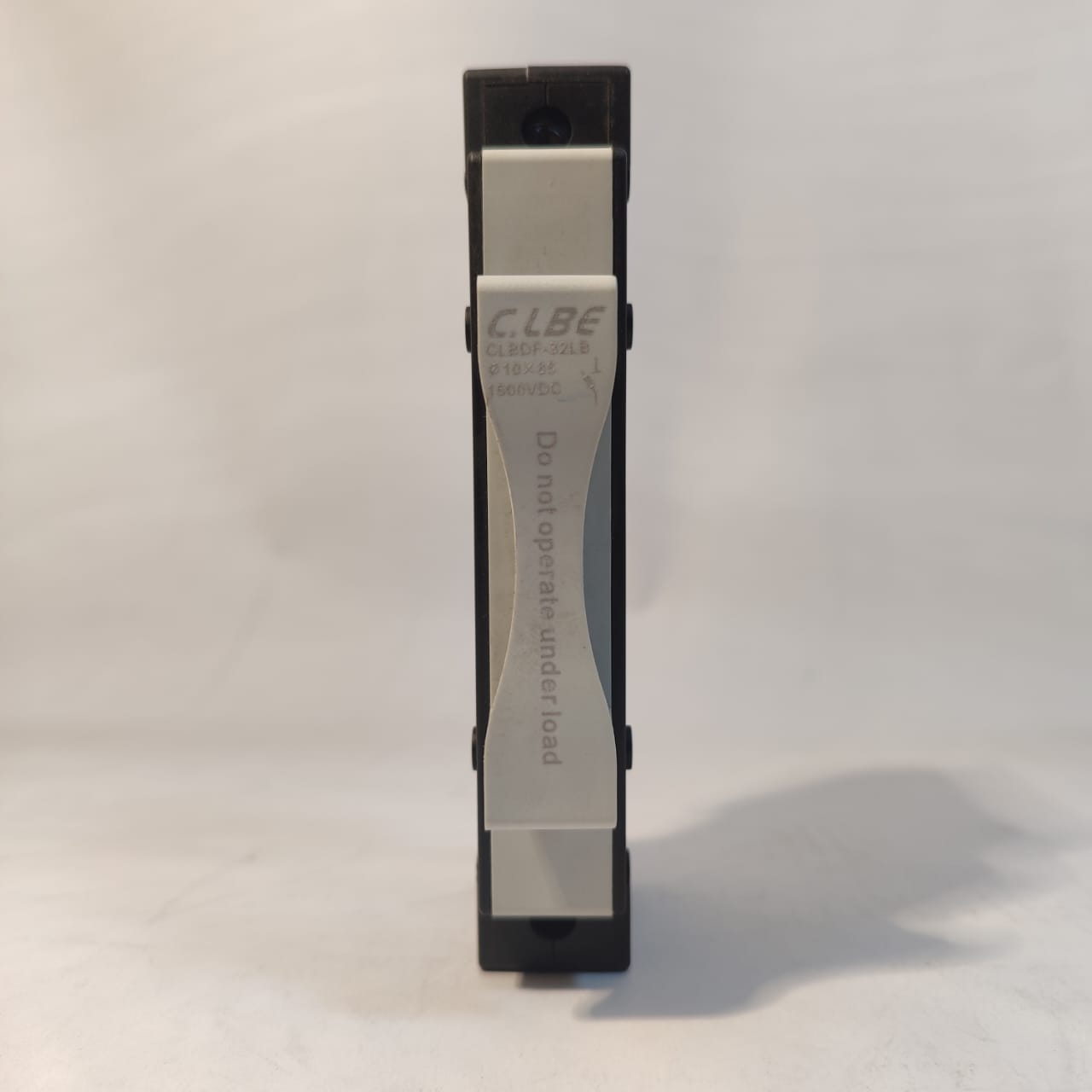

• “Do not operate under load” safety label

Specifications:

• Brand/Model: C.LBE CLBDF‑32LB
• Fuse Size/Type: 10×38 mm, 25A gPV cartridge
• Voltage: up to 550V DC (typical PV)

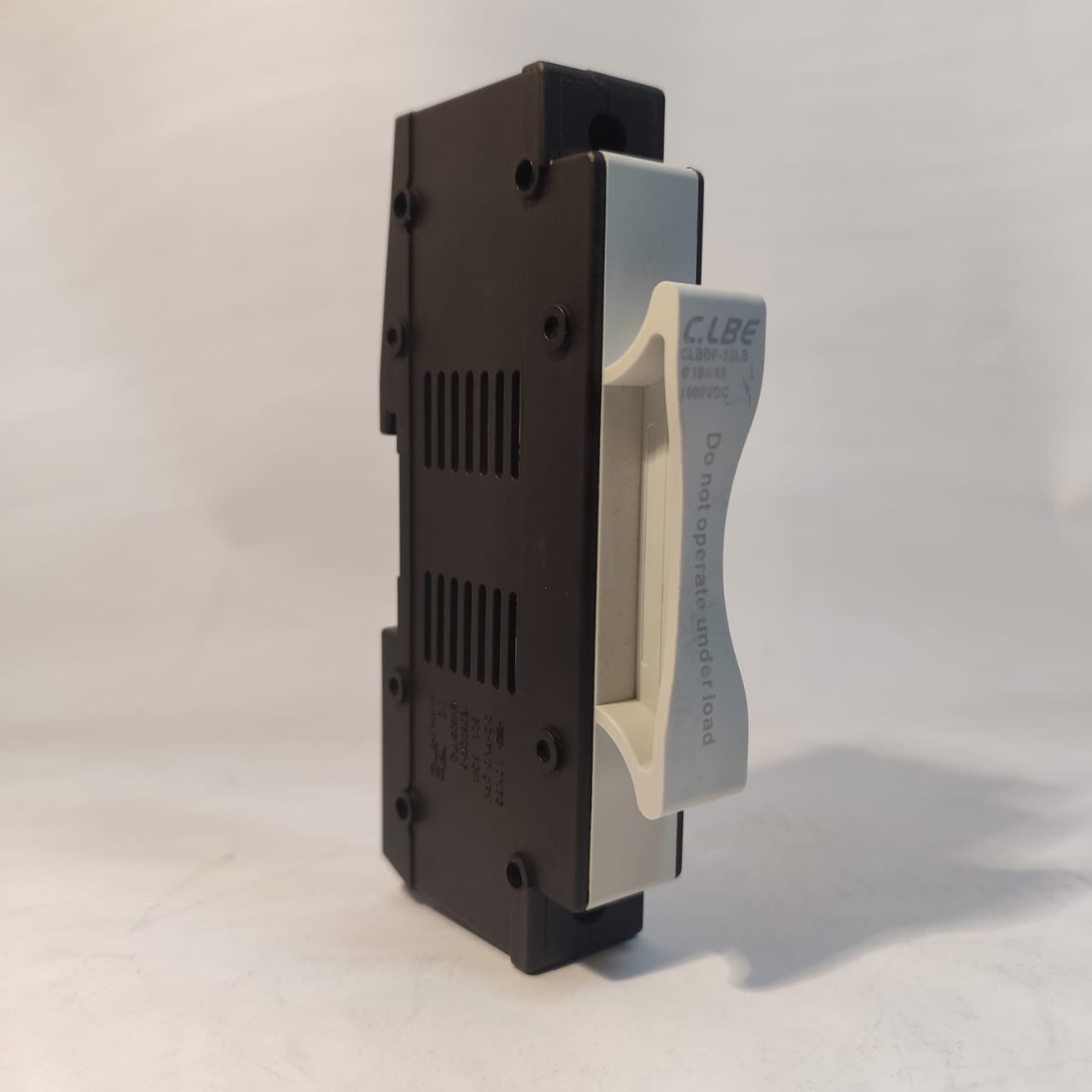

• Mounting: 35 mm DIN‑rail; IP20 touch‑safe
• Terminals: screw clamp for 2.5–10 mm² PV cable

Uses:

• PV string protection in combiner boxes
• Inverter DC input protection
• Off‑grid charge controller input
• Rooftop and ground‑mount arrays
• Street light and pump PV systems
