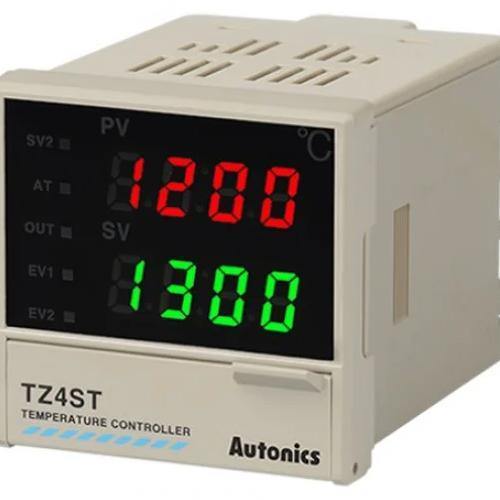

Autonics TZ4ST-14R Dual-Speed PID Temperature Controller In Pakistan BR3205

Description

The TZ4ST-14R is a panel-mount dual PID Auto-Tuning Controller with relay output. The dual PID temperature controller realizes ±0.3% high display accuracy by the FS value of each input. The series also supports various functions including a 2-step auto tuning control function, diverse sub-output function, in addition, 13 kinds of multi-input function which makes temperature sensor, voltage, and current input possible is also embodied in order to guarantee better users convenience.

Features:

• Dual PID auto tuning function: High-speed response of PID control to reach the desired value fast, the low-speed response of PID control to minimize the overshoot even though the response is a little bit slow.

• High display accuracy: ± 0.3% (by FS value of each input.)

• 2-Steps auto-tuning control function.

• Multi-input function (13 kinds of multi-input selection function): Temperature sensor, voltage, and current selection function.

• Various sub output functions: Includes in LBA, SBA, 7kinds of alarm output, and 4 kinds of alarm option functions, PV value transmission output (4-20mADC), RS485 communication output.

• Display the decimal point for analog input.

• +/- 0.3% accuracy

• 2-steps auto-tuning control function

• Temperature, voltage, and current inputs

• Alarm outputs

• PV transmission output

• RS485 output

• Displays decimal for analog input

Specification

SUMMARYSize48X48 technical SPECIFICATIONControl output single 1: Relay 1c ContactGENERAL SPECIFICATIONTypeDual PIDPower Supply110 – 220 VAC

Brandrethroad. pk is the Best Online Shopping website for Autonics TZ4ST-14R Dual-Speed PID Temperature Controller New. Here you get Autonics TZ4ST-14R Dual-Speed PID Temperature Controller New at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

YouTube Link
Pinterest Link
Instagram Link
Facebook Link

Package Include:

1 x Autonics TZ4ST-14R Dual-Speed PID Temperature Controller
