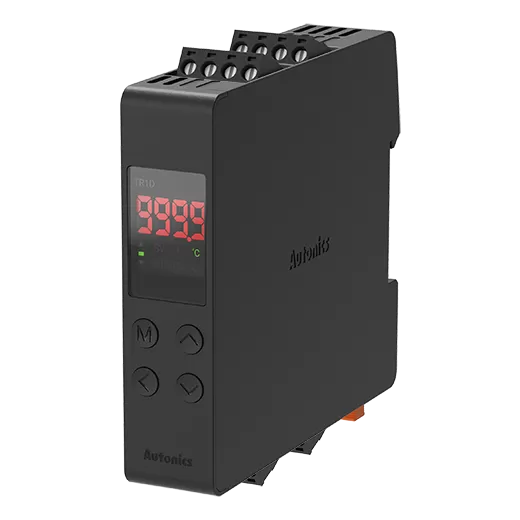

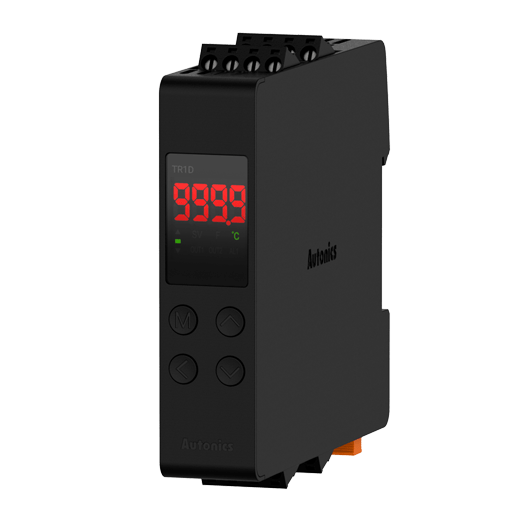

Autonics TR1D -T4CC Digital Temperature Controller (Used) in Pakistan

SKU:BR31366

Rs 12,500 PKR

Sale Sold out

The Autonics TR1D-T4CC Digital Temperature Controller is a reliable device used to measure and control temperature in industrial systems. It operates with a power supply of 100–240VAC at 50/60Hz, making it suitable for many industrial environments. Moreover, it offers stable performance with low power consumption and accurate control outputs. The controller supports SSR drive output and current output options, which provide flexible control for heating or cooling equipment. In addition, it can transmit signals using a 4–20 mA output, allowing easy integration with automation systems and monitoring equipment.

Features

Wide 100–240VAC power supply range for flexible industrial installation.
Stable temperature control performance for reliable process operation.
Supports SSR drive output up to 12VDC ±3V, 20mA for heater control.

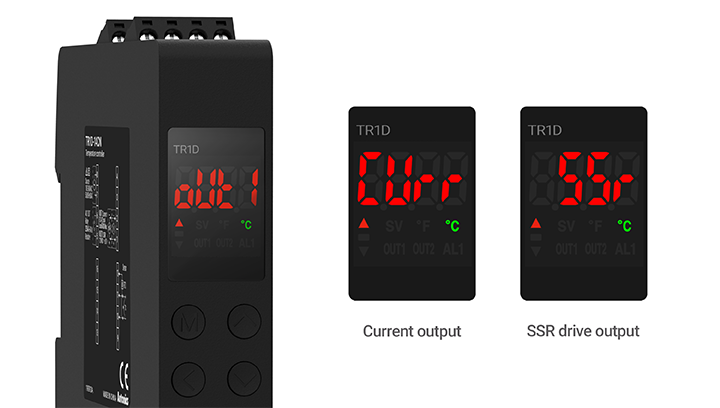

Selectable current output (0–20mA or 4–20mA) for different control systems.
Low power consumption (max. 8VA) improves energy efficiency.
Optional 4–20mA transmission output for remote monitoring.
Designed for easy integration with industrial automation equipment.
Durable design suitable for continuous industrial operation.

Specification

Power voltage	100-240VAC~ 50/60Hz
Allowable voltage range	90 to 110% of rated voltage
Power consumption	Max. 8VA
Sampling cycle	50, 100, 250ms
Input type_RTD	DPt100Ω, Cu50Ω, Nickel120Ω (permissible line resistance max. 5Ω)
Input type_TC	K(CA), J(IC), L(IC), T(CC), R(PR), S(PR)
Input type_CT	0.0-50.0A(primary current measurement range) ※CT ratio=1/1000
Display accuracy	RTD/Thermocouple: ㆍ At room temperature (23℃ ±5℃): (PV ±0.3% or ±1℃, select the higher one) ±1-digit ㆍ Out of room temperature ranges: (PV ±+H400.5% or ±2℃, select the higher one) ±1-digit
Display accuracy_CT input	±5% F.S. ±1-digit
Control output_SSR	Max. 12VDC ±3V 20mA
Control output_Current	Selectable DC 4-20mA or DC 0-20mA(load resistance max. 500Ω)
Option output_Trans.	DC 4 - 20 mA (load resistance: ≤ 500 Ω, output accuracy: ±0.3% F.S.)
Display method	7-segment (red) 4-digit
Control method	ON/OFF, P, PI, PD, PID
Control output_Hysteresis	Control output: 1 to 100℃/℉ (0.1 to 100.0℃/℉) Alarm output: 1 to 100℃/℉ (0.1 to 50.0℃/℉)
Proportional band	0.1 to 999.9℃
Integral time	0 to 9999 sec
Derivative time	0 to 9999 sec
Control period	Relay output: 0.5 to 120.0 sec, SSR output: 0.5 to 120.0 sec
Dielectric strength	Between the charging part and the case : 3,000 VAC~ 50/60 Hz for 1 min
Vibration	0.75 mm amplitude at frequency of 5 to 55 Hzin each X, Y, Z direction for 2 hours
Relay life cycle_Mechanical	OUT1/2, AL1/2: min. 5,000,000 operations
Relay life cycle_Electrical	OUT1/2, AL1/2: min. 100,000 (resistance load: 250VAC~ 5A)
Insulation resistance	≥ 100 MΩ (500 VDC megger)
Insulation type	Double insulation or reinforced insulation (dielectric strength between the charging part and the case: 3 kV)
Noise immunity	±2 kV square shaped noise by noise simulator (pulse width: 1 ㎲) R-phase, S-phase
Memory Protection	≈ 10 years (non-volatile semiconductor memory type)
Environment_Ambient temperature	-10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Weight	Approx. 194.5g (approx. 123.5g)

Uses

Used for temperature control in industrial heating systems.
Commonly applied in ovens, furnaces, and heaters.
Suitable for automation and manufacturing process control.
Used in laboratories and testing equipment for temperature monitoring.
Installed in machines requiring accurate temperature regulation.

Package includes:

1x Autonics TR1D -T4CC Digital Temperature Controller (Used)
