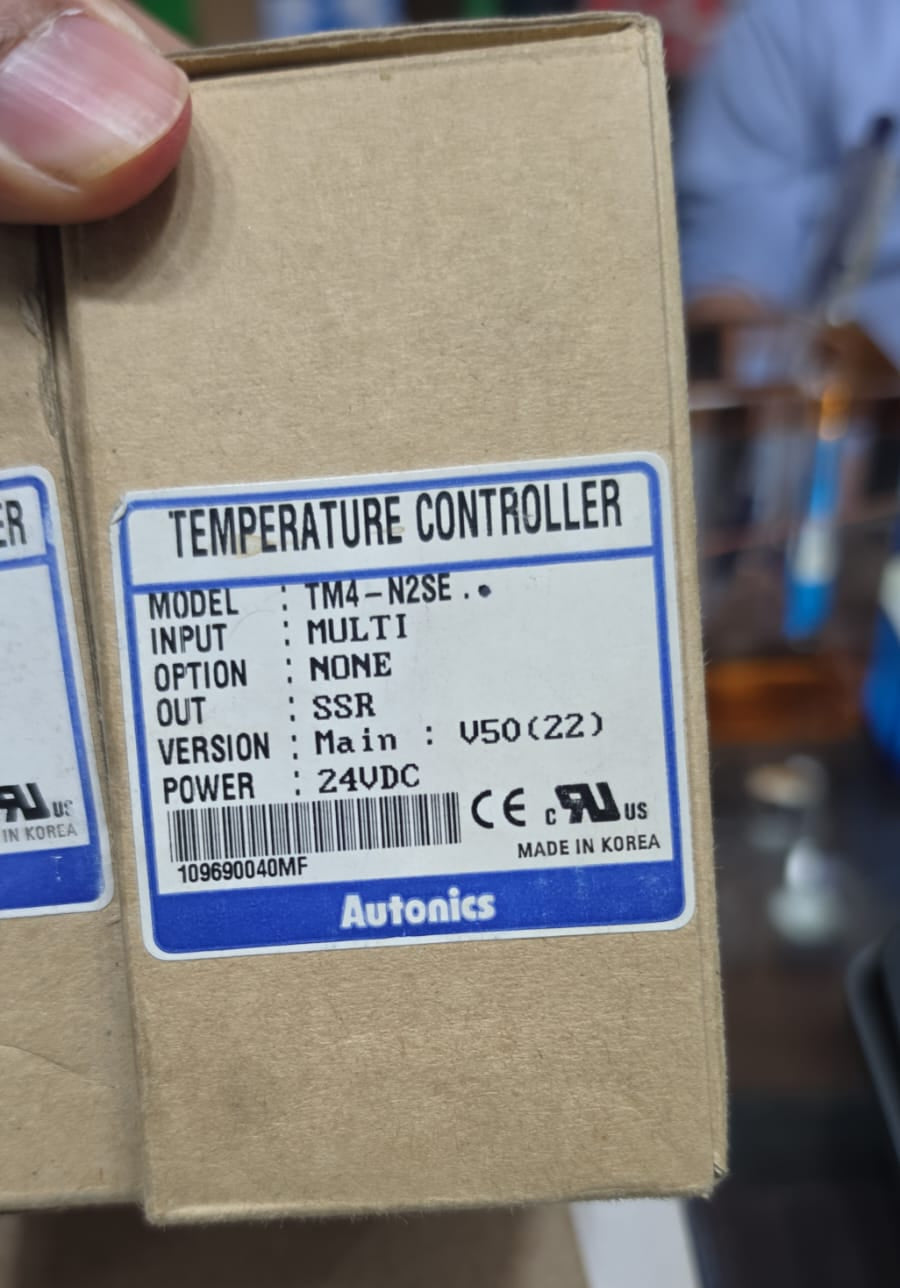

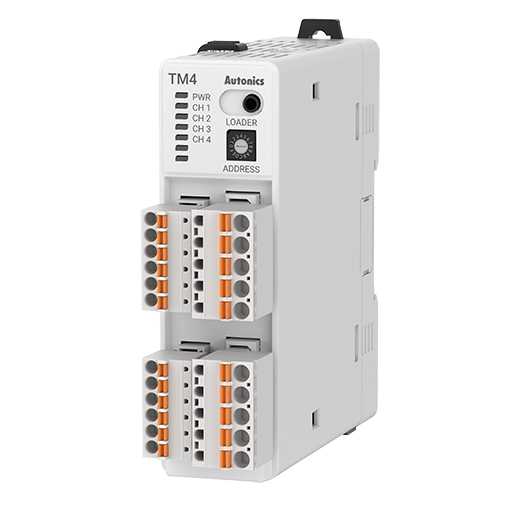

Autonics TM4-N2SE Temperature controller in Pakistan

The Autonics TM4-N2SE Temperature Controller is a high-performance 4-channel multi-input temperature controller designed for accurate temperature monitoring and advanced process control in industrial automation systems. Operating on a 24VDC ±10% power supply, it supports ON/OFF, P, PI, PD, and PID control methods for precise temperature regulation. The controller features a 100ms synchronous sampling cycle, built-in RS485 Modbus ASCII/RTU communication, and a 22VDC pulse (SSR drive) control output, making it ideal for driving solid state relays (SSRs). With adjustable PID parameters, compact non-display design, and low power consumption, the TM4-N2SE is suitable for ovens, furnaces, plastic molding, packaging, food processing, and other industrial temperature control applications.

Features

• 4-channel multi-input temperature controller.
• Operates on 24VDC ±10% power supply.
• 22VDC pulse output for driving Solid State Relays (SSR).
• Supports ON/OFF, P, PI, PD, and PID control modes.
• Fast 100ms synchronous sampling for accurate control.
• Built-in RS485 Modbus ASCII/RTU communication.
• Adjustable PID settings for precise temperature regulation.
• Compact non-display module for panel mounting.
• Low power consumption of 5W maximum.
• Ideal for industrial automation and multi-zone temperature control.

Specifications

• Brand: Autonics
• Model: TM4-N2SE
• Product Type: Multi-Channel Temperature Controller
• Number of Input Channels: 4 Channels
• Power Supply: 24VDC ±10%
• Power Consumption: ≤ 5W (Maximum Load)
• Sampling Cycle: 100ms (4-Channel Synchronous Sampling)
• Communication Interface: RS485
• Communication Protocol: Modbus ASCII / RTU
• Control Output: 22VDC ±3V, ≤30mA (SSR Drive Output)
• Display Type: Non-Display
• Control Methods: ON/OFF, P, PI, PD, PID
• Hysteresis Range: 1 to 100 (0.1 to 100) °C/°F
• Proportional Band: 0.1 to 999.9°C/°F
• Integral Time: 0 to 9999 Seconds
• Derivative Time: 0 to 9999 Seconds
• Control Period: 0.1 to 120.0 Seconds
• Manual Reset: 0.0 to 100.0%
• Operating Temperature: -10°C to +50°C (Storage: -20°C to +60°C)
• Weight: Approx. 231g (Expansion Module Approx. 166g)

Uses

• Controls multiple heating and cooling zones with SSR outputs.
• Used in ovens, furnaces, plastic molding, and packaging machines.
• Suitable for food processing and industrial manufacturing systems.
• Monitors and regulates temperature in automated production lines.
• Ideal for industrial process control requiring precise multi-channel PID temperature regulation.

Package includes:

1x  Autonics TM4-N2SE Temperature controller
