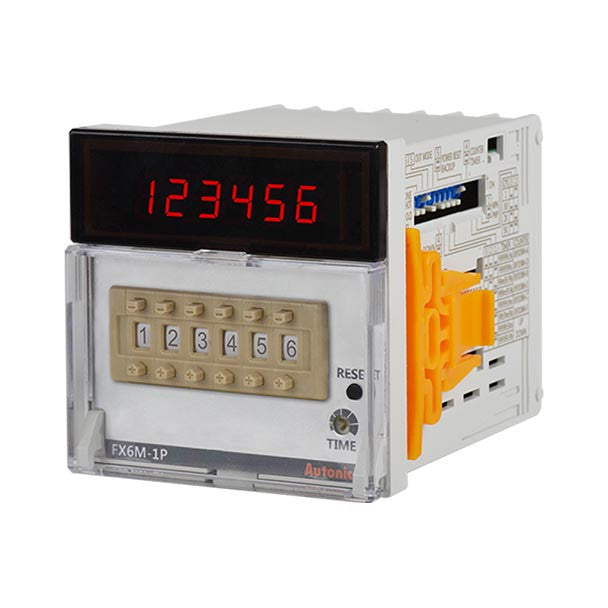

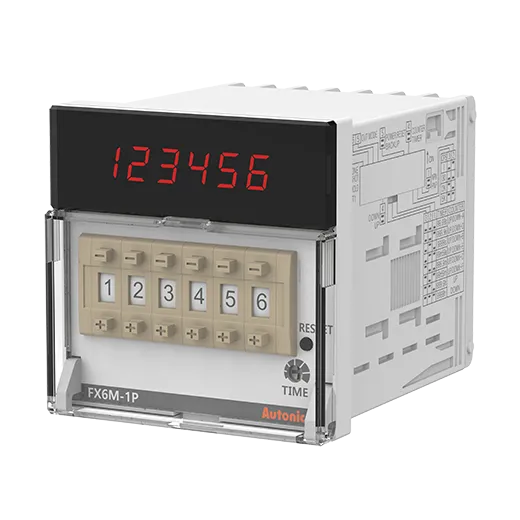

Autonics FX6M-1P Digital Counter Timer Relay Module in Pakistan

The Autonics FX6M-1P Digital Counter Timer Relay Module is a versatile industrial control device designed for accurate counting and timing applications. It features a clear 6-digit 7-segment LED display for easy reading and supports multiple operation modes such as count up, count down, and timer functions. Moreover, it operates on a wide voltage range of 100–240VAC, making it suitable for various systems. With relay and NPN outputs, durable terminal connections, and long memory retention, it ensures reliable performance in automation environments.

Features:

• Bright 6-digit 7-segment LED display for clear visibility
• Supports counter and timer functions in one device
• Multiple modes: count up, count down, and combined modes
• Power ON delay and flicker output operations
• Wide input compatibility (PNP and NPN signals)
• High-speed counting capability up to 5k cps
• Long memory backup up to 10 years
• Easy wiring through terminal block connection
• Compact and durable design for industrial use
• Reliable relay and transistor (NPN) outputs

Specifications:

• Display Method: 6-digit 7-segment LED
• Operation Mode: Counter (Up/Down/Up-Down), Timer (Up/Down)
• Power Supply: 100–240VAC, 50/60Hz
• Output Operation: Power ON Delay, Flicker
• Time Operation: Power ON Start
• Terminal Type: Terminal block
• External Power Supply: Max. 12VDC ±10%, 50mA
• Signal Input: Voltage (PNP), No-voltage (NPN)
• Max Counting Speed: 1, 30, 2k, 5k cps
• Minimum Signal Width: 20 ms
• Setting Range: Wide multi-range timing options
• Control Output: 1-stage preset
• Relay Output: SPDT (1c) x1
• Transistor Output: NPN open collector x1
• Protection Rating: IP20 (front panel)
• Ambient Temperature: -10°C to 55°C
• Storage Temperature: -25°C to 65°C
• Humidity: 35% to 85% RH
• Weight: Approx. 245g

Uses:

• Industrial automation and process control systems
• Machine cycle timing and operation control
• Counting products on conveyor systems
• Packaging and manufacturing lines
• Electrical control panels and monitoring systems

Package includes:

1x  Autonics FX6M-1P Digital Counter Timer Relay Module
