Autonics CT6S-1P4 Counter/Timer in Pakistan

The Autonics CT6S-1P4 Counter/Timer is a digital industrial control device designed for accurate counting and timing operations. It has a clear 6-digit 7-segment LED display and supports count-up, count-down, and count-up/down functions. The timer supports count-up and count-down operation with several output modes, including signal ON delay, power ON delay, flicker, interval, and integration time. It accepts both PNP voltage and NPN no-voltage inputs. Furthermore, it provides relay and NPN open-collector outputs, flexible timing ranges, and an IP65-rated front panel, making it suitable for automation, production machinery, and process control.

Features

• Digital Counter/Timer: Combines counting and timing functions in one device.
• 6-Digit Display: Provides clear 7-segment LED indication.
• Multiple Counter Modes: Supports count-up, count-down, and count-up/down.
• Timer Functions: Supports count-up and count-down timing.
• Multiple Output Modes: Includes delay, flicker, interval, and integration functions.
• Flexible Inputs: Supports PNP voltage and NPN no-voltage signals.
• High-Speed Counting: Counting speed can reach up to 10,000 cps.
• Dual Output Types: Provides relay and NPN open-collector outputs.
• IP65 Front Protection: Helps protect the front panel from dust and water.
• Industrial Design: Suitable for automation and machine-control applications.

Specifications

• Model: Autonics CT6S-1P4
• Product Type: Digital Counter/Timer

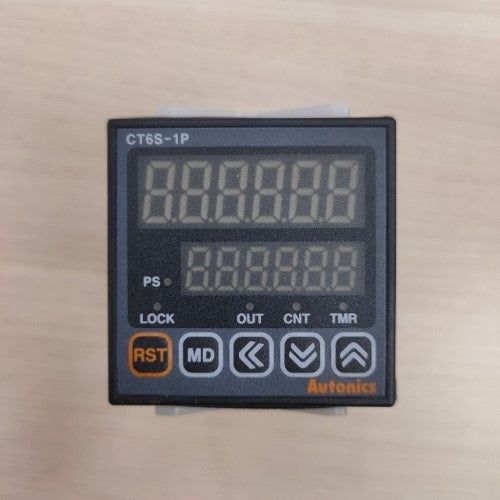

• Display Method: 6-digit 7-segment LED

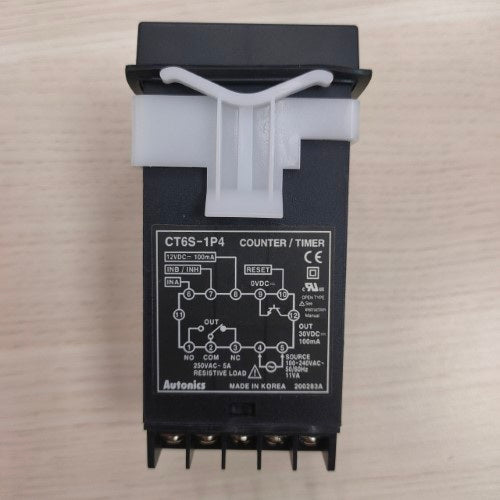

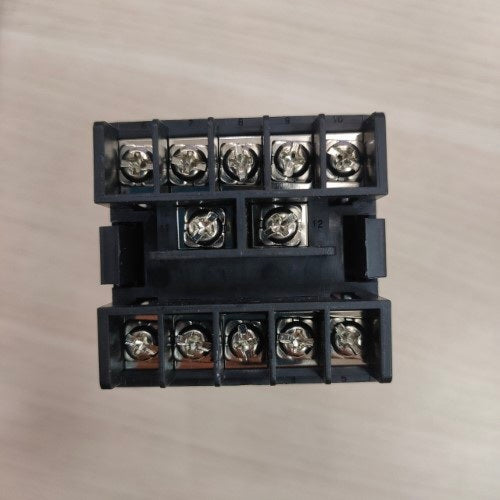

• Terminal: Terminal block
• Power Voltage: 100–240VAC, 50/60Hz
• Counter Operation: Count Up, Count Down, Count Up/Down
• Timer Operation: Count Up, Count Down
• Time Operation: Power ON Start, Signal ON Start
• Signal Input: Voltage input (PNP), No-voltage input (NPN)
• External Power Supply: Max. 12VDC ±10%, 100mA
• Maximum Counting Speed: 1, 30, 1k, 5k, 10k cps
• Minimum Signal Width: 1ms / 20ms selectable
• Output Operation: Signal ON Delay, Power ON Delay, Flicker, Interval, Signal OFF Delay, ON-OFF Delay, Integration Time
• Control Output: 1-stage preset
• Relay Output: SPDT (1c), 1
• NPN Output: Open collector, 1
• Counter Range: -99999 to 999999
• Counter Scale: Decimal point up to the fifth digit
• Timer Setting Range: 0.001 sec to 9999 hours, depending on selected range
• Memory Protection: Approximately 10 years
• Front Protection: IP65
• Operating Temperature: -10 to 55°C
• Storage Temperature: -25 to 65°C
• Ambient Humidity: 35 to 85% RH
• Weight: Approx. 212g (approx. 159g)

Uses

• Production Lines: Used for counting products and production cycles.
• Industrial Machinery: Suitable for machine timing and sequence control.
• Packaging Systems: Helps count and control repetitive packaging operations.
• Automation Systems: Used for counting and timing automated processes.
• Process Control: Suitable for repetitive industrial timing and counting applications.

Package includes:

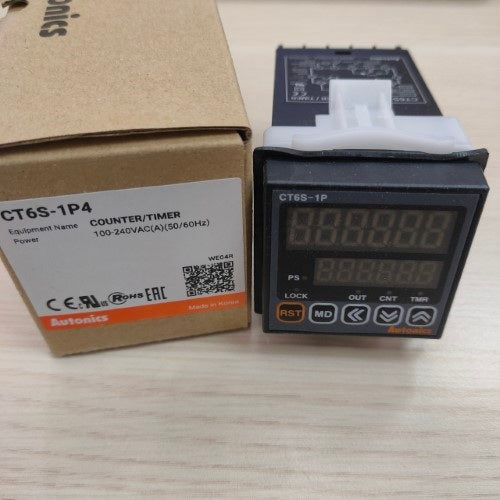

1x Autonics CT6S-1P4 Counter/Timer
