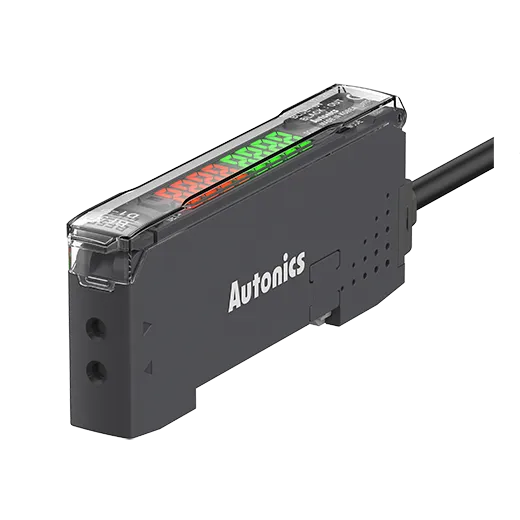

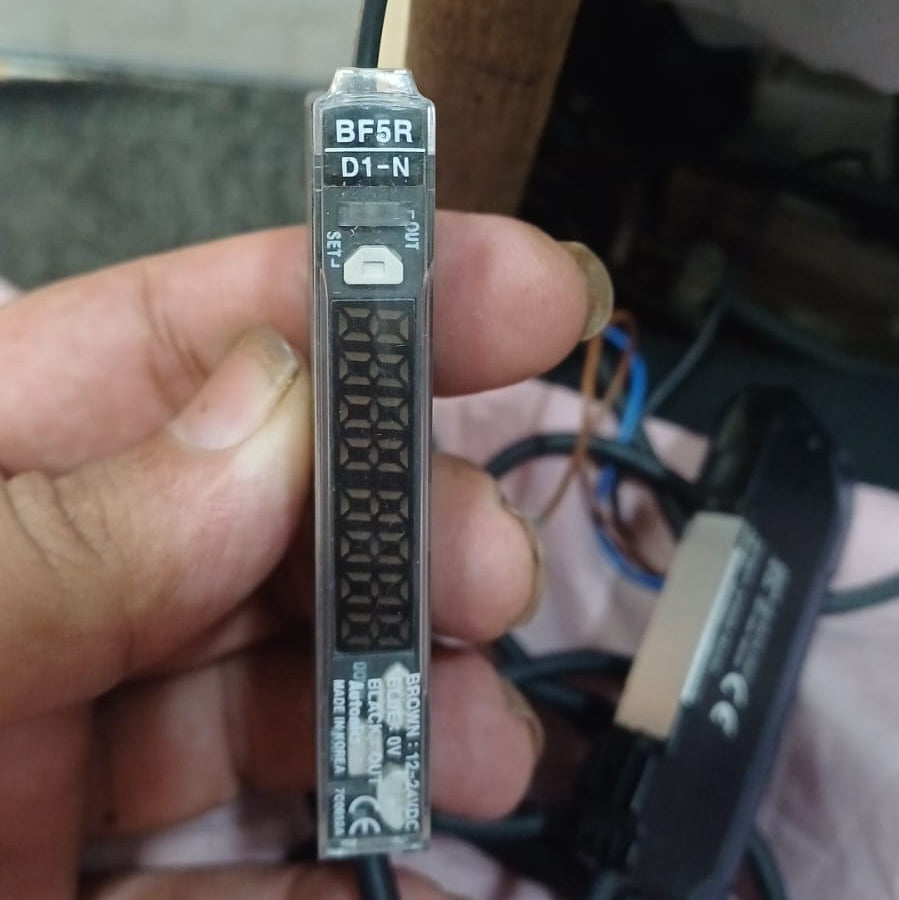

Autonics BF5R D1-N Fiber Optic Sensor in Pakistan

The Autonics BF5R D1-N Fiber Optic Sensor is a compact and high-performance fiber optic amplifier designed for accurate and reliable object detection in industrial automation systems. It features a dual display with a bright 4-digit 7-segment LED for easy monitoring and parameter adjustment. The sensor uses a 660nm red LED light source and offers multiple response time options to suit both high-speed and standard applications. It supports manual teaching functions, timer settings, Light ON/Dark ON operation, and I2C communication for connecting up to eight units. Furthermore, its energy-saving modes, interference prevention function, durable IP40 housing, and stable NPN output make it an excellent choice for modern factory automation and machine control.

Features

• Dual display design with a clear 4-digit 7-segment LED indicator.
• High-brightness 660nm red LED light source for accurate sensing.
• Multiple selectable response times for high-speed detection.
• Supports Light ON and Dark ON operating modes.
• Manual teaching with Auto-Tuning, 1-point, 2-point, and positioning methods.
• Batch teaching available when multiple sensors are connected.
• Built-in timer functions including OFF Delay, ON Delay, and One-shot.
• I2C communication allows connection of up to 8 sensor units.
• Mutual interference prevention ensures stable operation in multi-unit installations.
• Energy-saving modes help reduce power consumption without affecting performance.

Specifications

• Model: BF5R D1-N
• Product Type: Fiber Optic Sensor Amplifier
• Display Type: Dual Display
• Display Method: 4-digit 7-segment LED
• Light Source: Red LED (660nm)
• Response Time: 50μs, 150μs, 500μs, 4ms, 10ms
• Power Supply Voltage: 12–24VDC ±10%
• Ripple Voltage: Maximum 10% (P-P)
• Current Consumption: Maximum 50mA
• Operation Mode: Light ON / Dark ON (Parameter Setting)
• Control Output: NPN Open Collector
• Timer Functions: OFF, OFF Delay, ON Delay, One-shot (1–5000ms)
• Sensitivity Adjustment: Auto-Tuning, 1-Point, 2-Point, Positioning Manual Teaching
• Communication Interface: I2C (Maximum 8 Units)
• Ambient Illumination: Sunlight Max. 11,000lx, Incandescent Lamp Max. 3,000lx
• Operating Temperature: -10°C to +50°C
• Storage Temperature: -20°C to +70°C
• Ambient Humidity: 35–85% RH (Operating and Storage)
• Protection Rating: IP40
• Housing Material: Case – Polybutylene Terephthalate (PBT), Cover – Polycarbonate (PC)
• Accessories: Ø4mm 3-wire 2m connector cable (AWG22) and side connector
• Weight: Approximately 138g (Amplifier Approx. 20g)

Uses

• Used for accurate object detection in industrial automation systems.
• Ideal for packaging, labeling, and assembly machine applications.
• Suitable for high-speed production lines requiring fast response sensing.
• Used for position detection, counting, and presence verification of small objects.

Package includes:

1x  Autonics BF5R D1-N Fiber Optic Sensor
