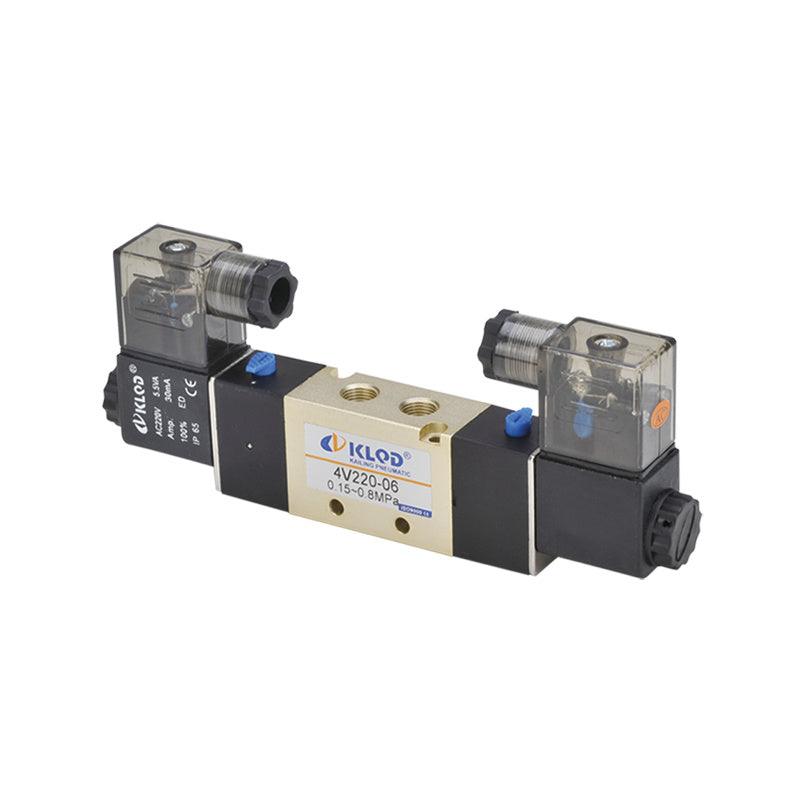

4V220-08 5 Way 2 Position 1/4" Pneumatic Solenoid Valve In Pakistan
SKU:BR6843
Regular price
Rs 1,890
Regular price
Sale price
Rs 1,890
Unit price
per
Couldn't load pickup availability
AIRTAC type 4V220-08 5 Way 2 Position 1/4" Pneumatic Solenoid Valve In Pakistan
Description
Type |
4V210-06 | 4V220-06 | 4V230C-06 | 4V230E-06 | 4V230P-06 | 4V210-08 | 4V220-08 | 4V230C-08 | 4V230E-08 | 4V230P-08 |
| 4V210-06 | 4V220-06 | 4V230C-06 | 4V230E-06 | 4V230P-06 | 4V210-08 | 4V220-08 | 4V230C-08 | 4V230E-08 | 4V230P-08 | |
Position Number |
Two-position Five-way | Three-postion Five-way | Two-position Five-way | Three-position Five-way | ||||||
Effective Sectional Area |
14mm2(CV=0.78) | 12mm2(CV=0.67) | 16mm2(CV=0.89) | 12mm2(cv=0.67) | ||||||
Joint Pipe Bore |
Air Inlet=Air Outlet=Exhaust=PT1/8" | Air Inlet=Air Outlet=Exhaust=PT1/4" | ||||||||
Working Medium |
40 Micron Fitered Air | |||||||||
Motion Pattern |
Inner Guide Type |
|||||||||
Working-pressure |
0.15~0.8MPa | |||||||||
Max. Pressure Resistance |
1.2MPa | |||||||||
Operating Temperature |
5~50 | |||||||||
Votagel Range |
±10% | |||||||||
Power Consumption |
AC:5.5VA DC:4.8W | |||||||||
Insulation & Protection Class |
F Class IP65 | |||||||||
Wring Form |
Lead Wire or Connector type | |||||||||
Highest Action Frequency |
3
Cycle Sec |
|||||||||
Shortest Excitation Time |
0.05 Second | |||||||||
Package Include
1xAIRTAC type 4V220-08 5 Way 2 Position 1/4" Pneumatic Solenoid Valve
