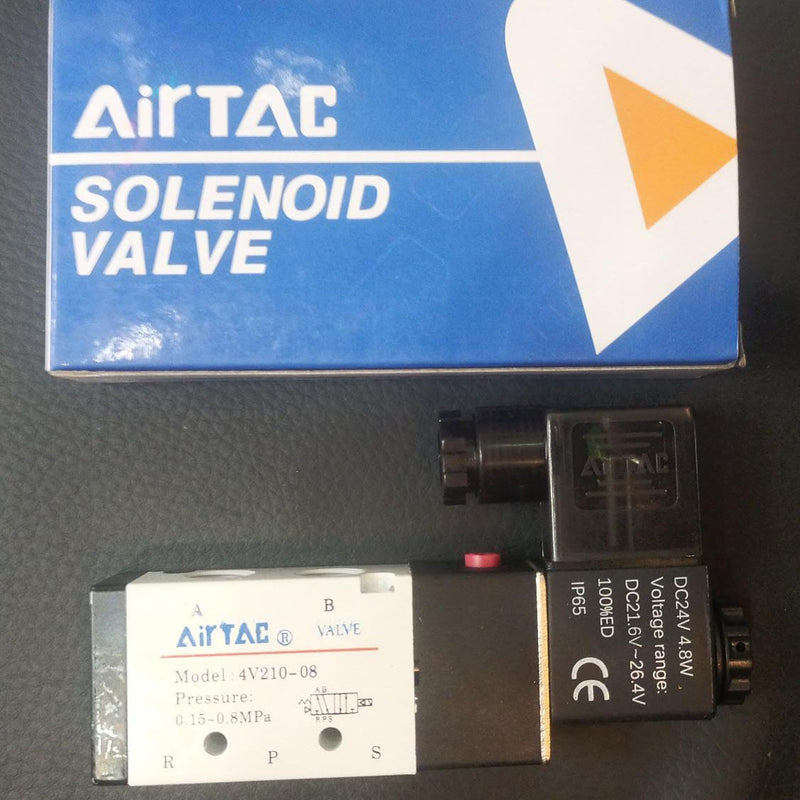

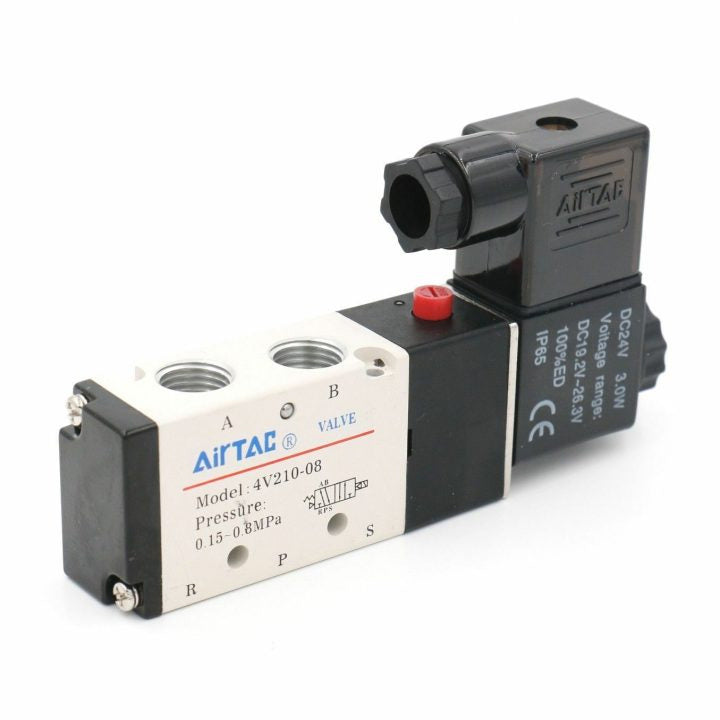

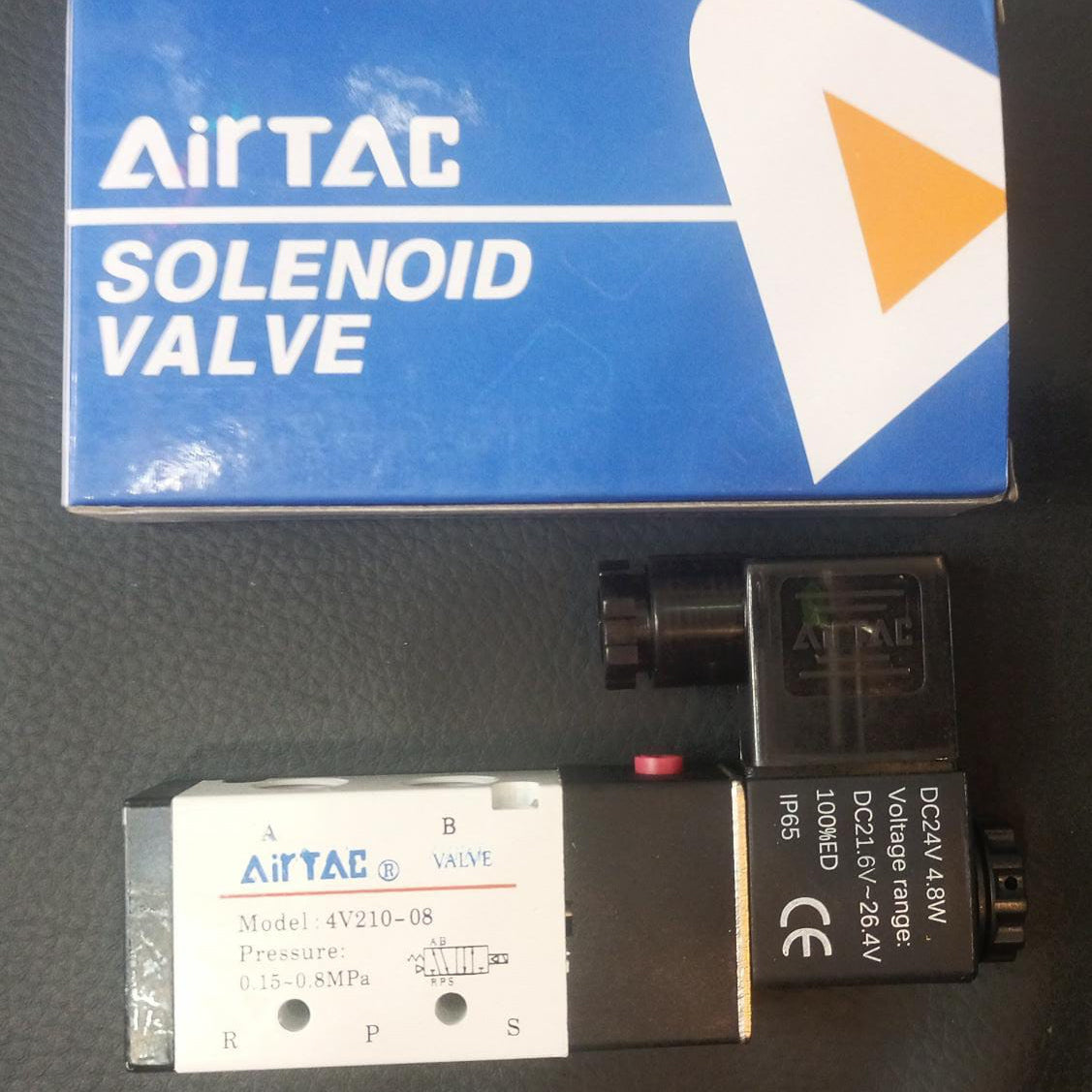

Airtac Solenoid Valve 5way 1/4″ (4v210-08) 3position in Pakistan

SKU:BR3734

Regular price Rs 1,050
Regular price Sale price Rs 1,050
Sale Sold out

Solenoid valves are control units that, when electrically energized or de-energized, either shut off or allow fluid flow. The actuator takes the form of an electromagnet. When energized, a magnetic field builds up which pulls a plunger or pivoted armature against the action of a spring.

Features:

  • Pilot-oriented mode: optional for internal or external.
  • Structure in sliding column mode: good tightness and sensitive reaction.
  • Three-position solenoid valves have three kinds of central functions for your choice.
  • Double control solenoid valves have memory function.
  • Internal hole adopts unique processing technology with little attrition friction, low start pressure, and long service life.
  • No need to add oil for lubrication.
  • It is available to form an integrated valve group with the base to save installation space.
  • Connected manual devices are equipped to facilitate installation and debugging.
  • Several standard voltage grades are optional.

Specifications:

  • Product Name: Solenoid Valve
  • Model: 4V210-08
  • Working Pressure: 0.15~0.8Mpa
  • Max. Pressure Resistance: 1.2Mpa
  • Operating Temperature: -5~50 degrees
  • Current: 250mA
  • Insulation&Protection Class: F. IP65
  • Highest Action Frequency: 4
  • Excitation Time: 0.05 Second
  • Position & Way Number: Two-position, Five-way
  • Effective Sectional Area: 16mm2 (CV=0.89)
  • Joint Pipe Bore: Inlet=Outlet=1/4””, Exhaust=1/8″
  • Total Size: 11.8 x 6.6 x 2.1cm/4.6”” x 2.6”” x 0.8″(L*W*H)
  • External Material: Metal, Plastic
  • Color: White, Black
  • Net Weight: 215g

Package Includes:

1 x Airtac Solenoid Valve 5way

Industryparts.pk is the Best Online Shopping website for Airtac Solenoid Valve 5way 1/4″ (4v210-08) 3position. Here you get Airtac Solenoid Valve 5way 1/4″ (4v210-08) 3position at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
