A voltage controller also called an AC voltage controller or AC regulator is an electronic module based on either thyristors, TRIACs, SCRs, or IGBTs, which converts a fixed voltage, fixed frequency alternating current (AC) electrical input supply to obtain variable voltage in output delivered to a resistive load.

Characteristics:

• Digital 3-phase voltage and fault detector
• Overvoltage detection -0.1 sec ~ 10-sec adjustable tripping delay
• Under-voltage detection -0.1 sec ~ 10-sec adjustable tripping delay
• Phase-loss detection -2 sec fixed tripping delay
• Phase sequence detection -0.5 sec fixed tripping day
• 3-phase voltage balance (±5%) detection -3 sec fixed tripping delay
• Phase-loss detection with an active motor
• Manual / Auto Reset selectable -1 sec or 5-sec auto-reset tripping delay

Specifications:

• Operating Voltage: 100 ~ 240 VAC

• Allow Operating Volt. Range: 85-110% of rated operating voltage

• Rated Frequency: 50/60 Hz

• Contact Rating: 250 VAC  5A (resistive load)

• Detecting method and range: Detect 3 phase supply voltage

  P-type: 77~143VAC,   L type: 160~300VAC,   H type: 277~519VAC

• Reset Time: 1 S  /  5 S

• Power Consumption: Approx. 3.3 VA

• Life: Mechanical : 5,000,000 times / Electrical : 100,000 times

• Ambient Temperature: -10~+50°C

• Ambient Humidity: Max 85% RH

• Weight: Approx. 135g.

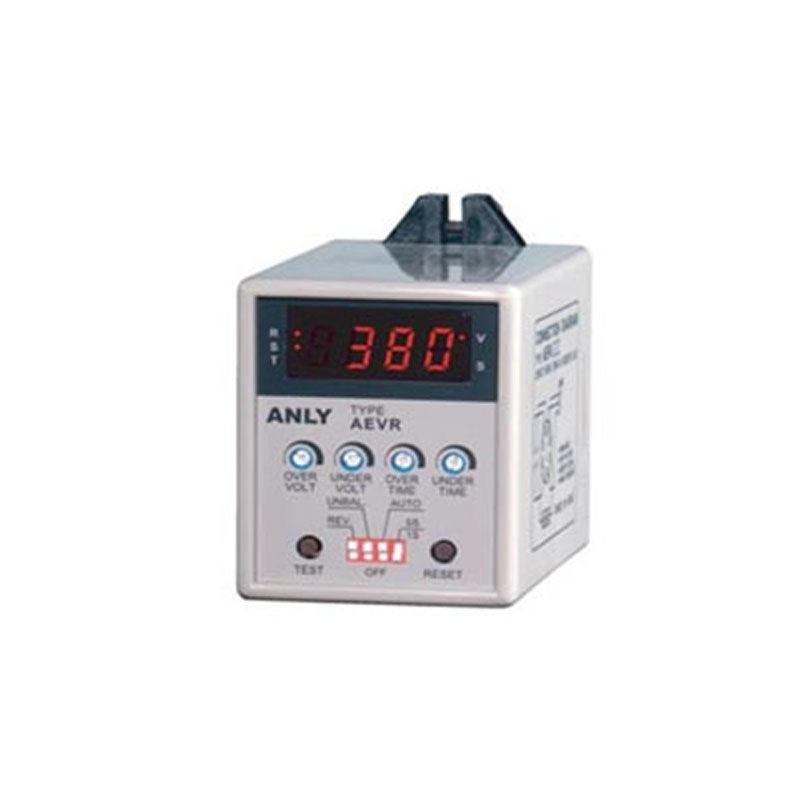

Industryparts.pk is the Best Online Shopping website for AEVR Multi-Functional Digital Voltage Controller. Here you get AEVR Multi-Functional Digital Voltage Controller at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package Includes:

1 x AEVR Multi-Functional Digital Voltage Controller
