Solenoid valves are control units that, when electrically energized or de-energized, either shut off or allow fluid flow. The actuator takes the form of an electromagnet. When energized, a magnetic field builds up which pulls a plunger or pivoted armature against the action of a spring.

https://youtu.be/MHbz798GNog

1. AC220V Power Supply: The valve operates on an alternating current (AC) power supply of 220 volts. This standard voltage makes it compatible with most industrial and commercial electrical systems.

2. Solenoid Valve: The BDN Pneumatic Control Valve utilizes a solenoid as its actuating mechanism. The solenoid coil generates a magnetic field when energized, causing the valve to open or close based on the control signals received.

3. Pneumatic Control: This valve is specifically designed for pneumatic control applications. It can regulate the flow of compressed air or other gases in pneumatic systems, providing precise control over the movement and operation of pneumatic actuators.

4. Control Signals: The AC220V Series Solenoid Valve can respond to electrical control signals to open or close. These control signals can be supplied by various devices such as programmable logic controllers (PLCs), relays, or manual switches, enabling remote or automated control of the valve's operation.

5. Durability and Reliability: The valve is constructed using high-quality materials to ensure durability and reliability in demanding industrial environments. It is designed to withstand high-pressure conditions, temperature variations, and harsh operating conditions, ensuring long-term performance.

6. Quick Response Time: The solenoid actuation mechanism enables rapid response times, allowing the valve to open or close swiftly in response to control signals. This feature is crucial for applications requiring fast and precise control over pneumatic processes.

7. Versatility: The AC220V Series Solenoid Valve is available in various configurations, such as different port sizes, pressure ratings, and flow capacities. This versatility allows it to be used in a wide range of applications, including industrial automation, process control systems, manufacturing equipment, and pneumatic machinery.

8. Easy Installation: The valve is designed for easy installation and integration into existing pneumatic systems. It typically includes mounting options and standard pipe thread connections, simplifying the installation process and reducing downtime.

9. Maintenance and Serviceability: The valve design facilitates easy maintenance and servicing. It may feature removable components or modular construction, allowing for straightforward troubleshooting, repair, and replacement of parts, minimizing downtime and associated costs.

10. Compliance and Certification: The AC220V Series Solenoid Valve may comply with industry standards and certifications, such as ISO, CE, or UL, ensuring its adherence to quality, safety, and performance requirements.

Specification:

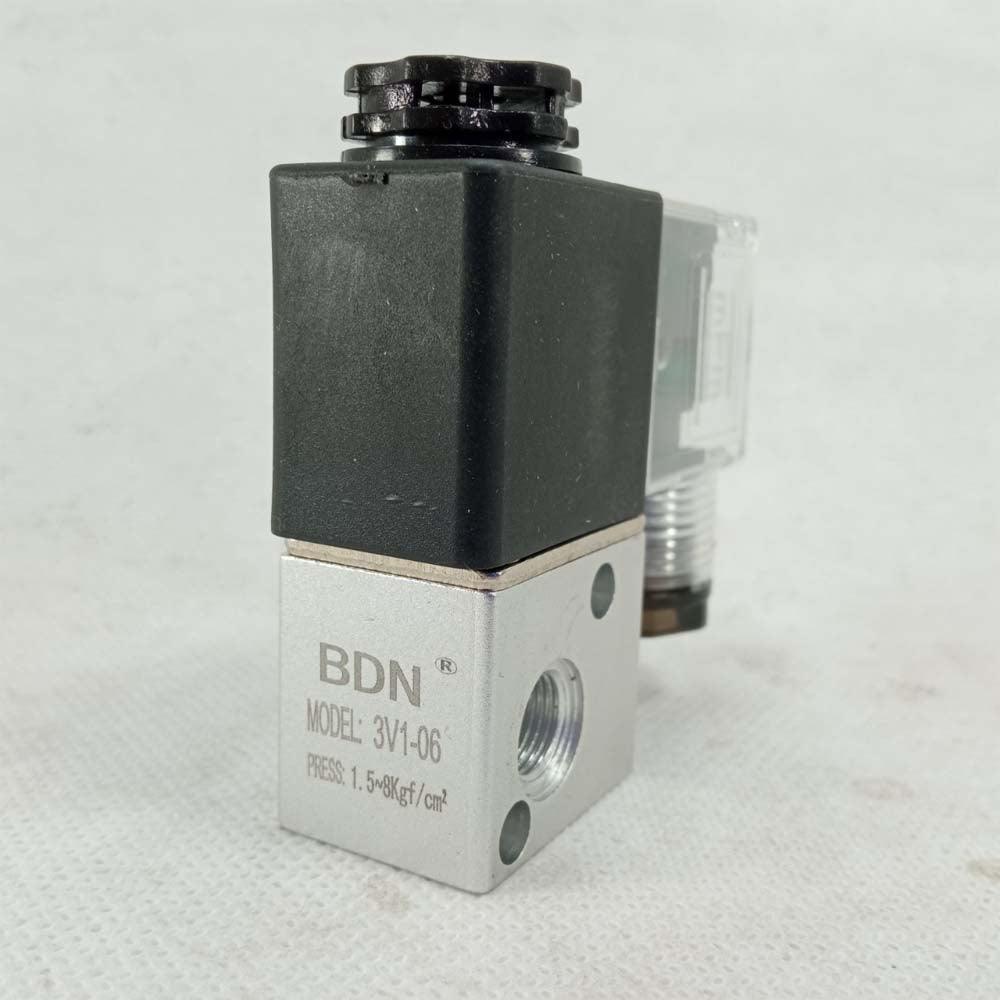

• Model: 3V1-06
• Type: NC
• Working voltage: AC220V
• Action: Direct acting
• Orifice size: Orifice size:1.2mm(CV=0.23)
• Type: 3 Port 2 position
• Port size: 1/8"PT
• Lubrication: Not required
• Pressure range: 0.1-0.8MPa(14-116psi)
• Material: Aluminum alloy
• Insulation: F Class
• Protection: IP65
• Voltage range:-15% - +10%
• Temp. range:-5 - 60℃
• Max. frequency:10 cycles/s
• Min. activate time:0.05second

Industryparts.pk is the Best Online Shopping website for AC220V Series Solenoid Valve BDN Pneumatic Control Valve . Here you get AC220V Series Solenoid Valve BDN Pneumatic Control Valve at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package Includes:
1 x AC220V Series Solenoid Valve BDN Pneumatic Control Valve
