ABB-CC-U RTD Universal Signal Converter in Pakistan
SKU:BR8191
Couldn't load pickup availability

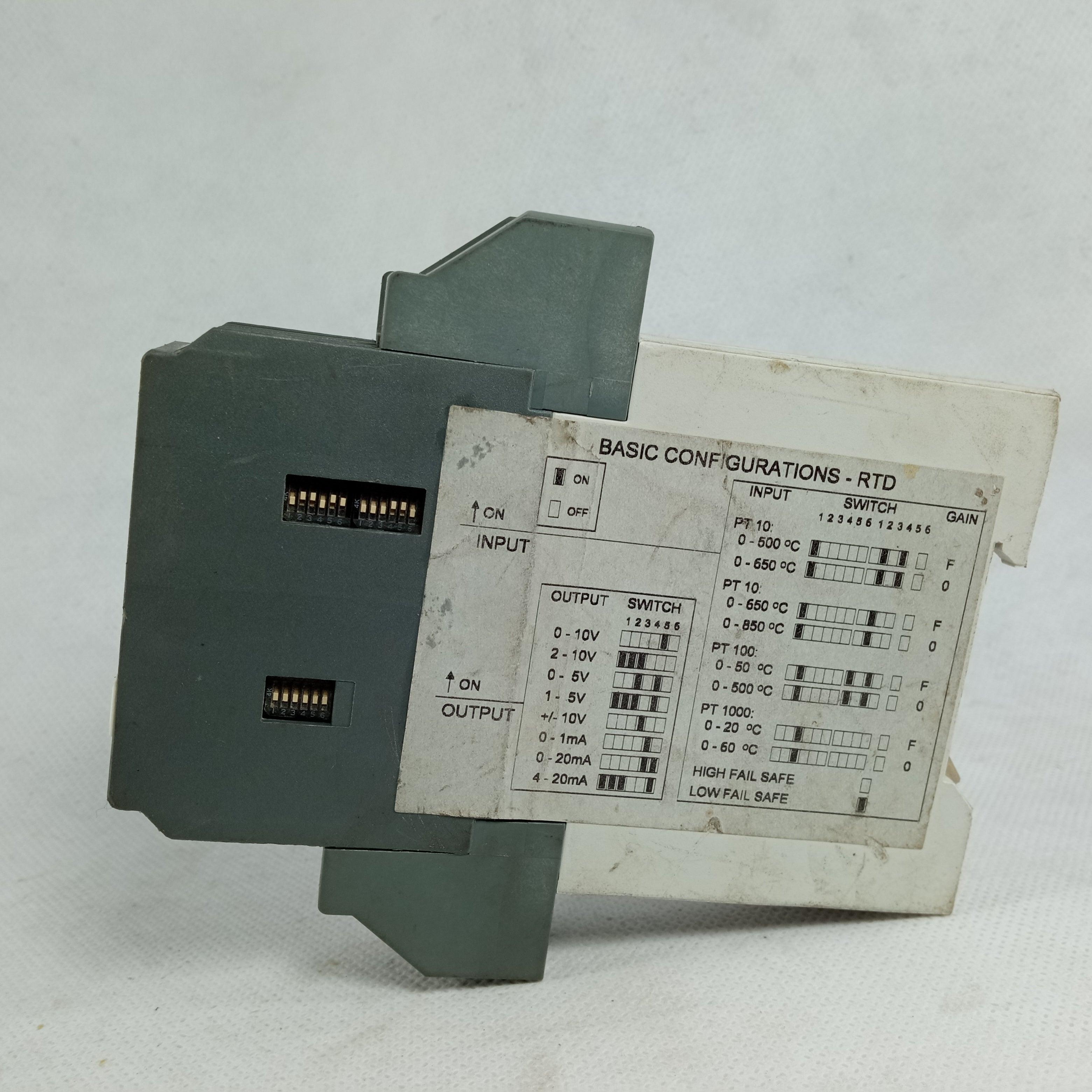

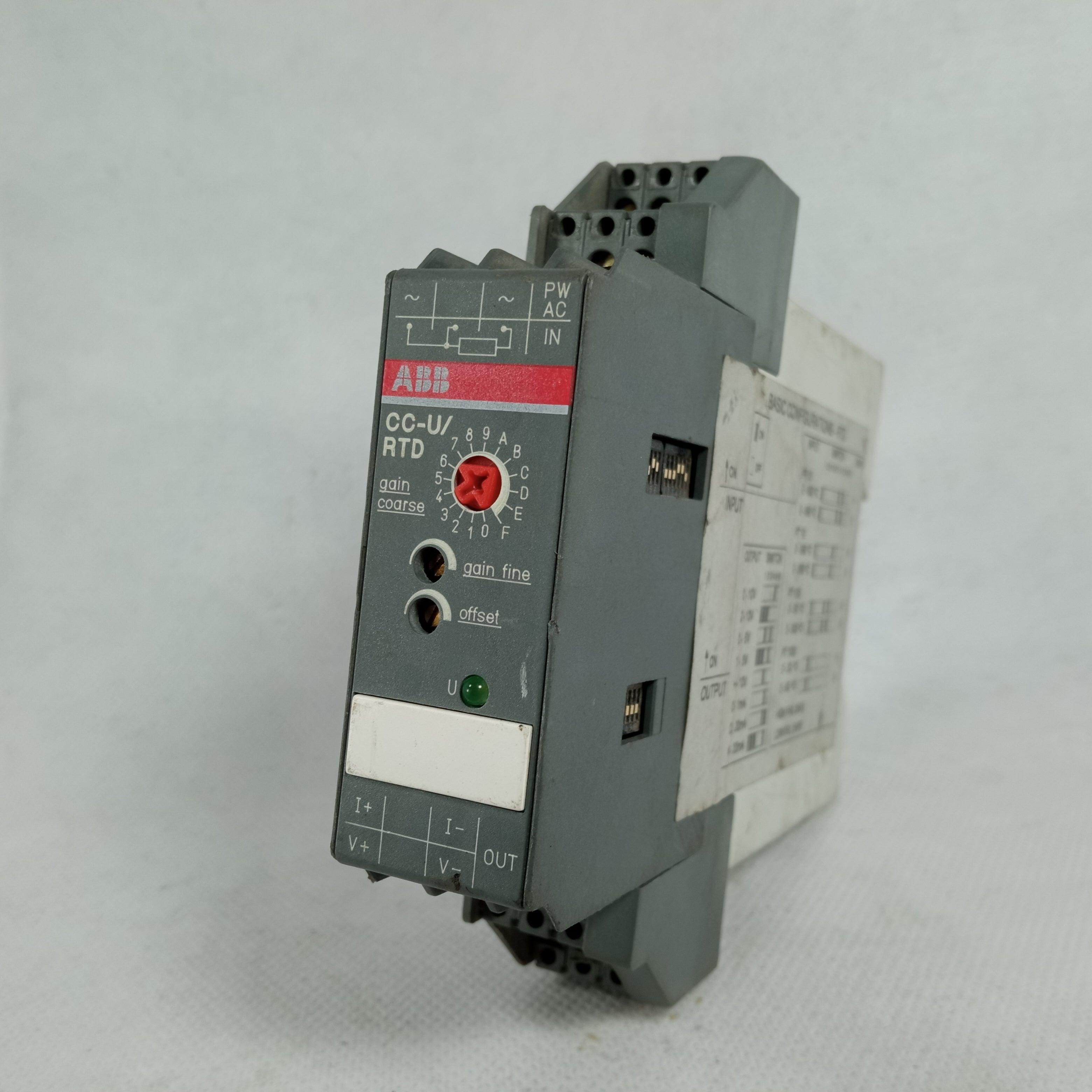

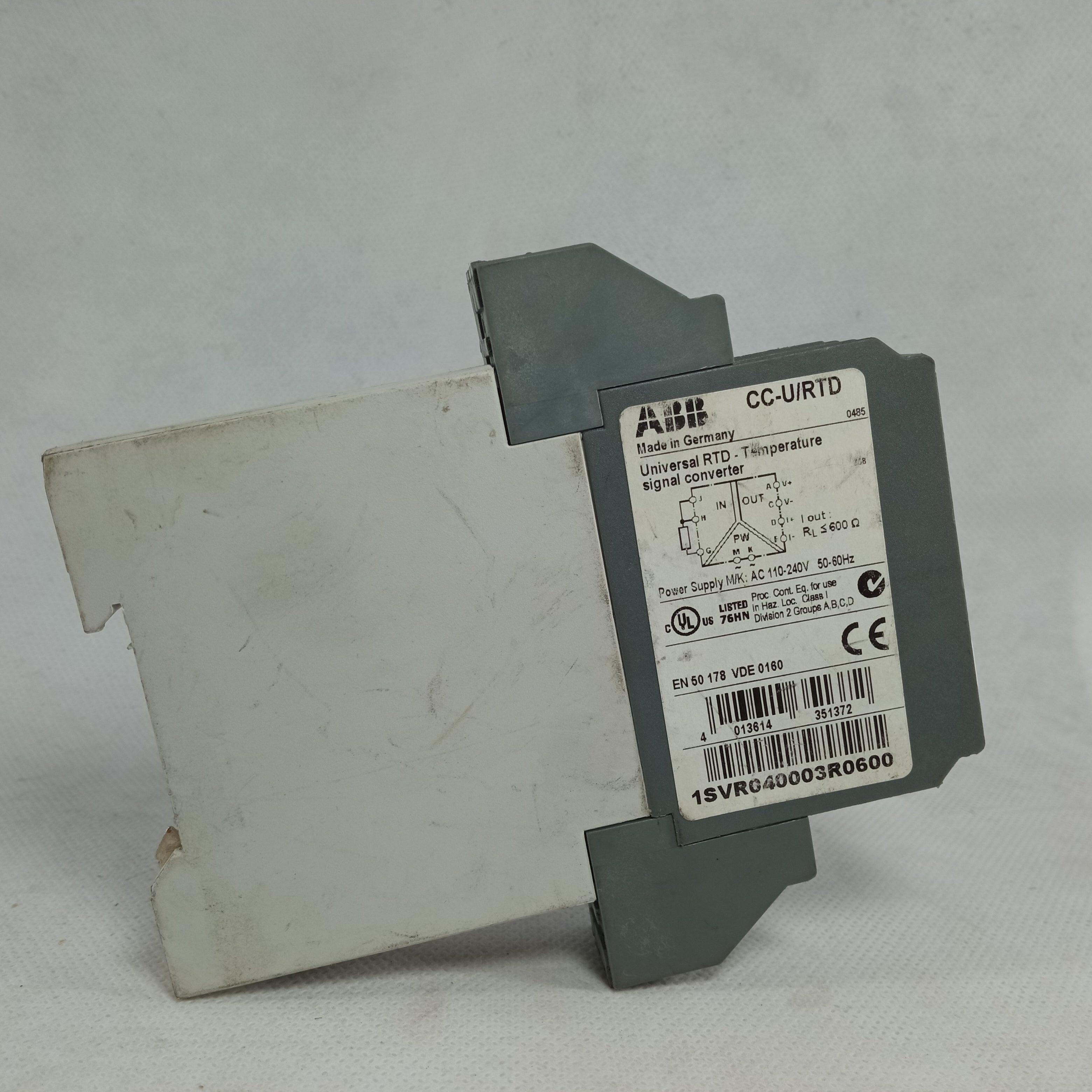

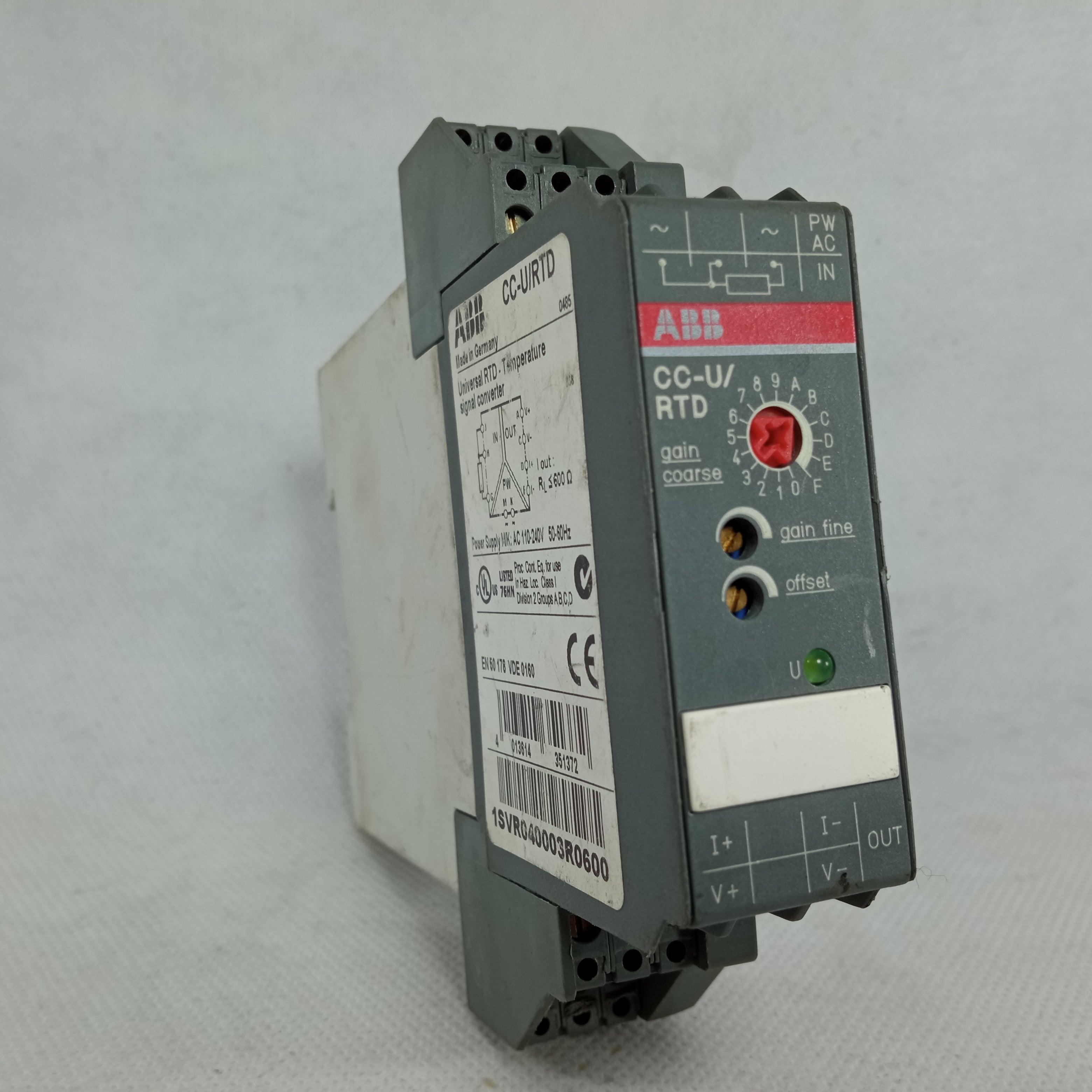

The CC-U/RTDR is a temperature signal converter from the CC-U range. This converter, with relay outputs and with 3-way electrical isolation, for RTD sensors (PT100), operates with a rated control supply voltage of 110-240 V AC and provides pluggable.
Specifications:
- Description: CC-U/RTD Universal signal converter 110-240VAC 50/60Hz / 100-300VDC
- Product ID: 1SVR040003R0600
- Extended Product Type: 1SVR040003R0600
- Product Net Weight: 0.128 kg
- Product Net Width: 22.5 mm
- Product Net Height: 105 mm
- Product Net Depth: 120 mm
- Function: RTD sensor signals Universal
- e Class: 7.0 27210120
- Rated Control Supply Voltage (Us): 100-300 V DC 110-240 V AC
- EAN: 4013614351372
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85369085
- Package Level 1 Width: 109 mm
- Package Level 1 Length: 26 mm
- Package Level 1 Height: 124 mm
- Package Level 1 Gross Weight: 0.156 kg
- Package Level 1 Unit: 1 piece
- Input Signal: PT10: 0 ... 500 ... 850 C / PT100: 0 ... 50 ... 500 C / PT1000: 0 ... 6 ... 60 C
- Output Signal: 0 ... 55 mA / 0 ... . 11V
- RoHS Status: Following EU Directive 2002/95/EC August 18, 2005, and amendment
- Instructions and Manuals: 1SVC497110M5000
- Instructions and Manuals (Part 2): 1SVC040000M9000
- c UL Certificate: cUL508_E174460 cUL1604_E215666
- Data Sheet, Technical Information: 2CDC110004C0209
- Declaration of Conformity - CE: 1SVD981001-0000
- RoHS Information: 1SAA981010-4403
- UL Certificate: UL508_E174460 UL1604_E215666
- ETIM 4: EC002653 - Isolation amplifier
- ETIM 5: EC002653 - Isolation amplifier
- ETIM 6: EC002653 - Isolation amplifier
- UNSPSC: 39120000
- Object Classification Code: T
Industryparts.pk is the Best Online Shopping website for ABB - CC-U RTD Universal signal converter. Here you get ABB - CC-U RTD Universal signal converter at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
Package Includes:
1 x ABB - CC-U RTD Universal signal converter
