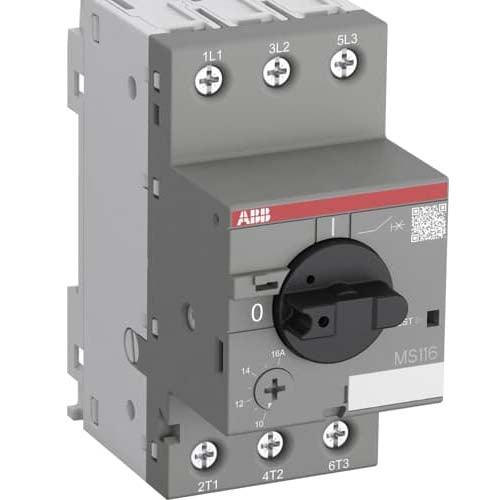

The MS116-16 manual motor starter (also known as motor protection circuit breaker or manual motor protector) is a compact 45 mm width device with a rated operational current of I.e. = 16.0 A and a pre-assembled front mounted auxiliary contact HKF1-11. This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits, overload and phase failures. The manual motor starter offers a rated service short-circuit breaking capacity Ics = 16 kA at 400 VAC and trip class 10A. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter is suitable for three- and single-phase applications. Auxiliary contacts, signaling contacts, under voltage releases, shunt trips, 3-phase bus bars, power in-feed blocks and locking devices for protection against unauthorized changes are available as accessory.

Specification:

• Type: Side-fitted (right).
• RoHS-compliant: Yes
• Switching capacity: AC-15: 3 A/24 V; 1.5 A/230 V; DC-13: 1 A/24 V; 0.27 A/110 V
• Product type: Auxiliary switch

Features:

• Overload release and short-circuit trip with phase failure sensitivity
• De-energisation with under voltage release or shunt release (optional)
• Temperature compensated
• Optimum motor protection up to 32 A
• Mains switch and power separator functionality
• Rated currents from 0.1 up to 32 A
• UL-certified

Industryparts.pk Best Online Shopping website for ABB AUX SWITCH MS116 FOR BENNING in Pakistan. We deliver in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package includes:

        1 x ABB AUX SWITCH MS116 FOR BENNING
