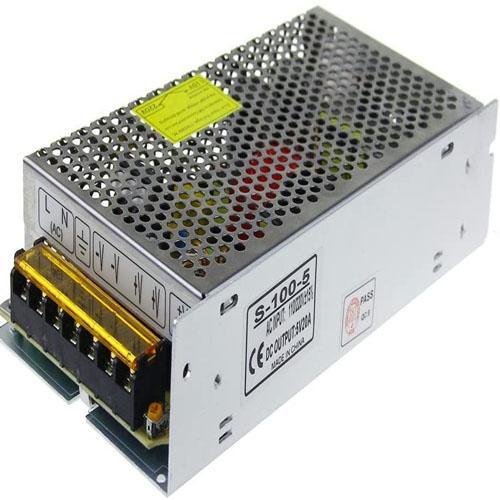

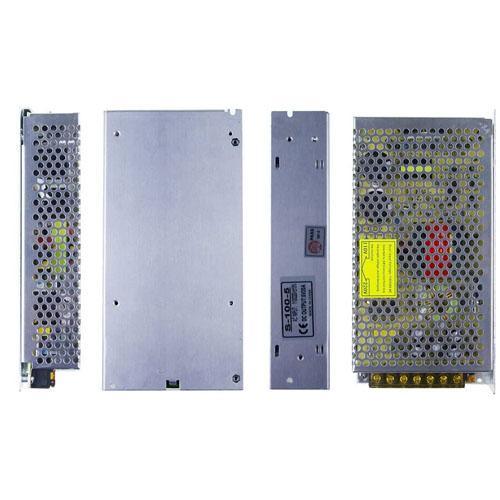

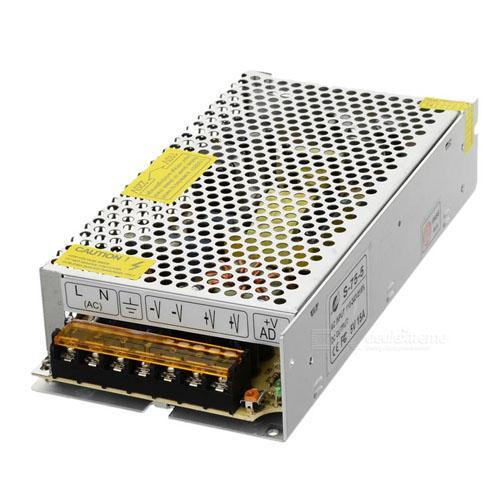

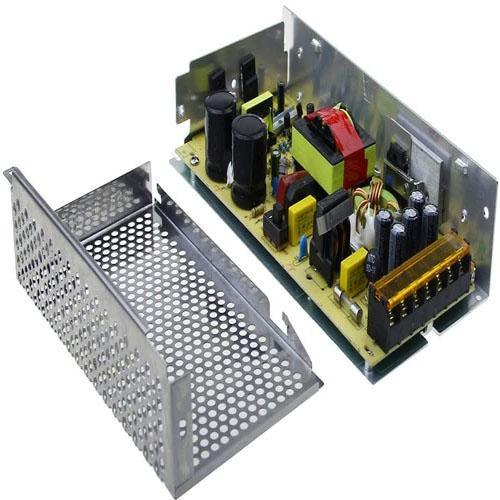

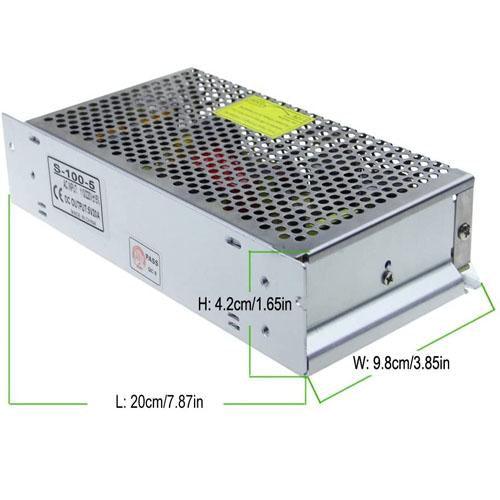

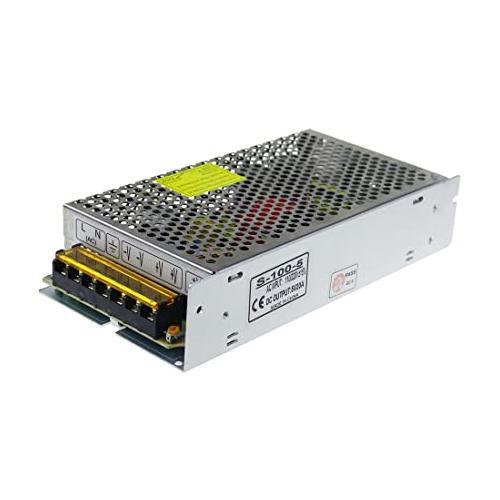

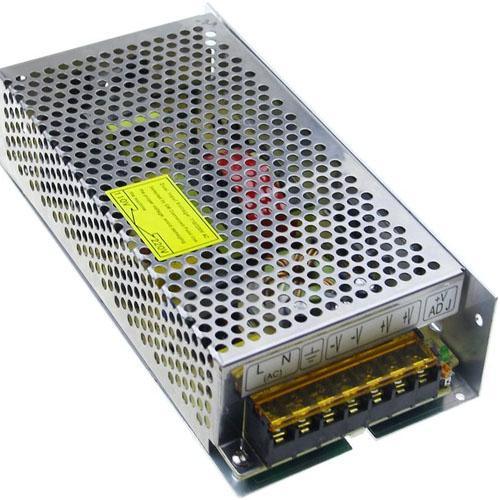

5V 20A Power Supply Lotted Used In Pakistan

SKU:BR4362

Regular price Rs 2,400
Regular price Sale price Rs 2,400
Sale Sold out

5V 20A Power Supply Lotted Used In Pakistan  BR4362

5V 20Amp Power Supply In Pakistan is AC to DC Power Supply which is suitable for  PLC, MICROCONTROLLER, CNC, etc. This 24v 20A power supply is very reliable for industrial and domestic use.

Product Features:

  1. DC Voltage: 5V
  2. Rated Current: 20A
  3. Current Range: 0-20.5A
  4. Rated Power: 100W
  5. Ripple & Noise (maximun): 150mV
  6. Voltage Tolerance: +/- 2.0%
  7. Line Regulation: +/- 0.5%
  8. Load Regulation: +/- 0.5%
  9. Setup, Rise, Hold Up Time: 200ms, 100ms, 50ms, at full load
  10. Voltage Range:  180-264V AC by
  11. Frequency Range: 47-63HZ
  12. Efficiency:  85%
  13. Inrush Current: 13A/115V 25A/230V
  14. Leakage Current: <1mA/240VAC
  15. Working Temp. :  -20℃~60℃
  16. Working Humidity: 20%-90% RH

Please Note:

  1. This product is suitable for indoor use, a non-detachable power shell.
  2. External power supply round hole meshes heat vents, in the range of 20 inches within the outlet Do not place other flammable items.
  3. Within 2 inches the product range not place other items, to ensure that the power supply has a good thermal environment, to ensure safety.
  4. Please accurately calculate the load power, do not overload. When the power is working, do not touch the case.
  5. Do not short-circuit output if no output, please use off one minute re-energized.
  6. Before electricity use, carefully verify the power link is correct, rigorous power lines reversed.
  7. The professional installation of a qualified electrician is highly recommended.

Features:

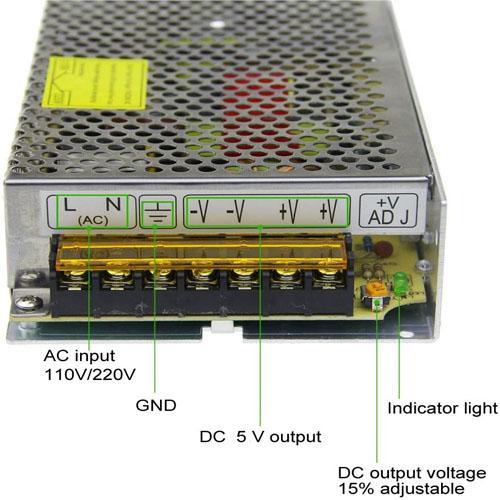

 Input: AC110V/220V 50/60Hz  Output : DC 5V 20A 100W max  Fix Screw Hole Diameter: 2.5mm (0.1inch)  Working temperature: -10 to 50 degree Celsius  Storage temperature: -20 to 60 degree Celsius  Environmental humidity: 10-95%  Material: Metal, Electronic Parts  Safety Compliance: CCC/ FCC / CE

Specification:





5V 20A Power Supply Lotted Used In Pakistan

Online Shopping website for 5V 20A Power Supply. Here you get5V 20A Power Supply at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package Include:

1 x 5V 20A Power Supply
