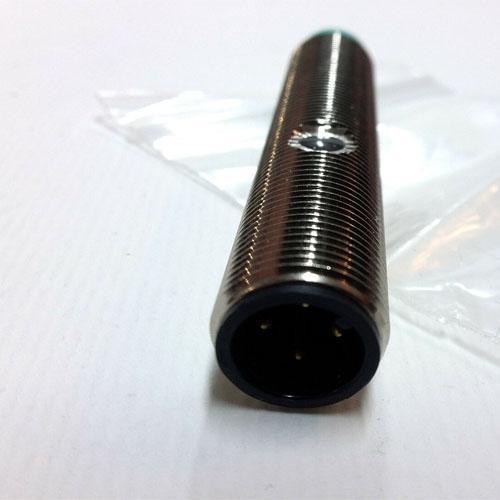

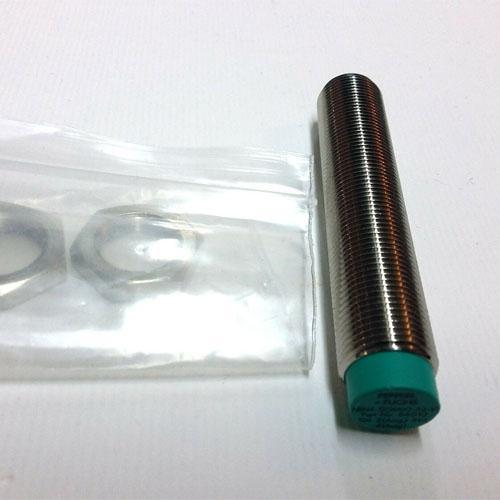

4mm Sn Inductive sensor NBN4-12GM50-E2-V1 BR2266

Features:

• Switching function Normally open (NO)

• Output type PNP

• Rated operating distance 4 mm

• Installation non-flush

• Output polarity DC

• Assured operating distance 0 ... 3.24 mm

• Hysteresis type. 5%

• Nominal ratings

• Operating voltage 10 ... 30 V

• Switching frequency 0 ... 1200 Hz

• Reverse polarity protection Reverse polarity protected

• Short-circuit protection pulsing

• Voltage drop? 3 V

• Repeat accuracy ? 0.01 mm

• Operating current 0 ... 200 mA

• Off-state current 0 ... 0.5 mA typ. 0.1 µA at 25 °C

• No-load supply current? 17 mA

• Switching state indicator Multihole-LED, yellow

• Functional safety-related parameters

• MTTFd 990 a

Mechanical specifications:

• Connection type Connector M12 x 1 , 4-pin

• Housing material brass, nickel-plated

• Sensing face PBT

• Housing diameter 12 mm

• Degree of protection IP67

Specification:

1. Brand Name:

2. DIY Supplies: Electrical

3. Model: NBN4-12Gm50-E0/E2-V1

4. Types of electronic and electrical produ: Proximity switch/sensor

5. Colour: Other /other

Best Online Shopping website for 4mm Sn Inductive sensor NBN4-12GM50-E2-V1. Here you get a 4mm Sn Inductive sensor NBN4-12GM50-E2-V1 at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Packages Include:
