GT series thermal overload relay is suitable for overload and phase failure protection of AC motors with a frequency of 50/60Hz, voltage up to 690v, current up to 0.1~85A under an 8-hours duty or uninterrupted duty.
Functions provided by these relays are phase-failure protection, temperature compensation, ON/OFF indication, Stop button, Test button and manual/automatic reset.
Quick Details
Place of Origin: Shanghai, China (Mainland)
Electricity Type: AC
Number of Pole: 3
Phase: 3
Main Circuit Rating Voltage: 380v
Main Circuit Rating Current: 4A To 6A
Manufacturer: LS
Motor Control: AC Contactor
Rated Voltage: 480V
Pole Number: 3Pole
Auxiliary Blocks: 1NO/1NC
Products name: electric contactor
Coils voltage: 220V 50/60HZ
Contactor: mec gmc contactor
Model: meta-mec ac contactor
Description

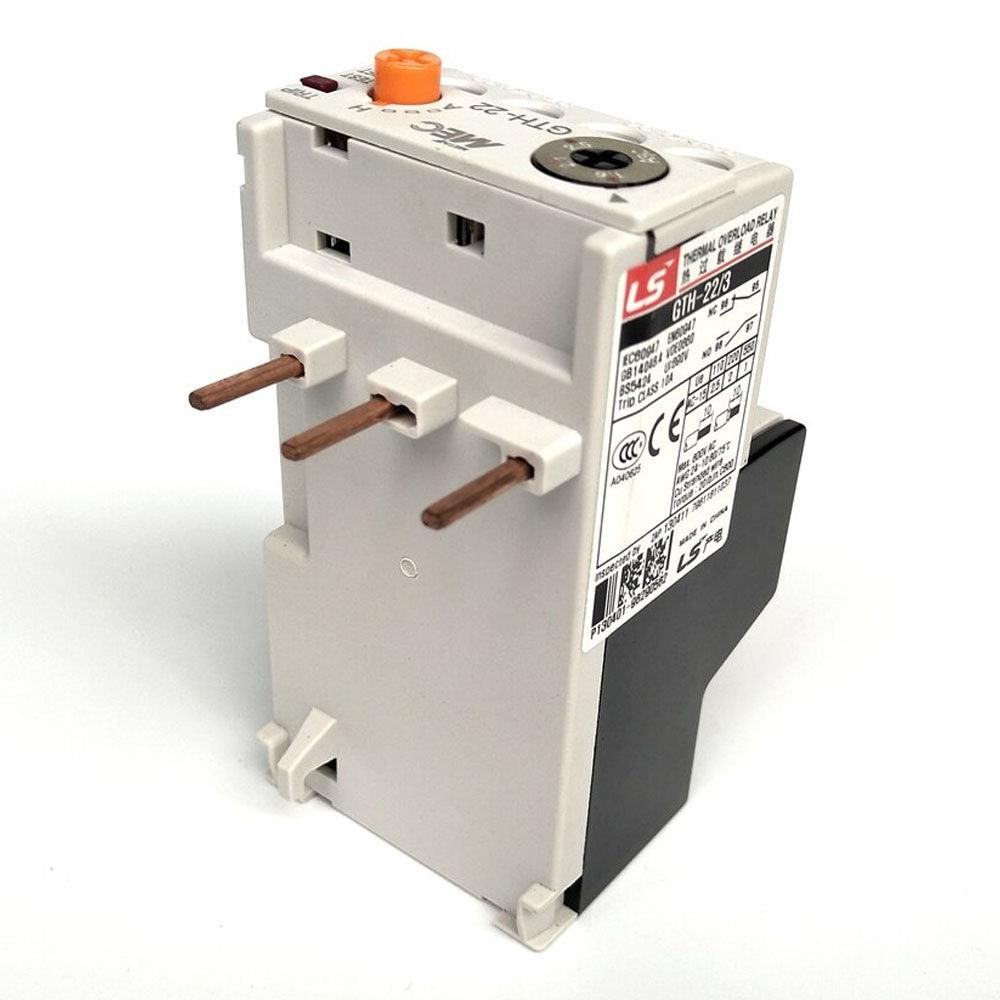

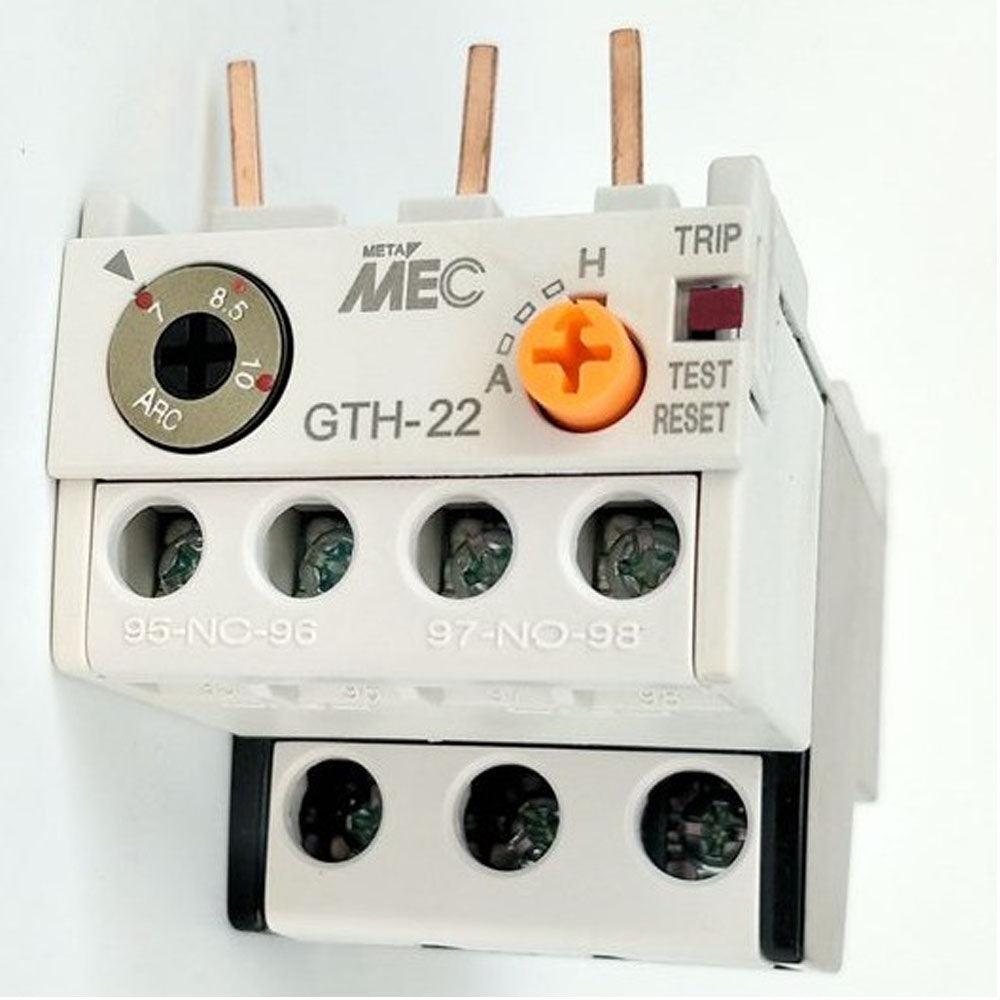

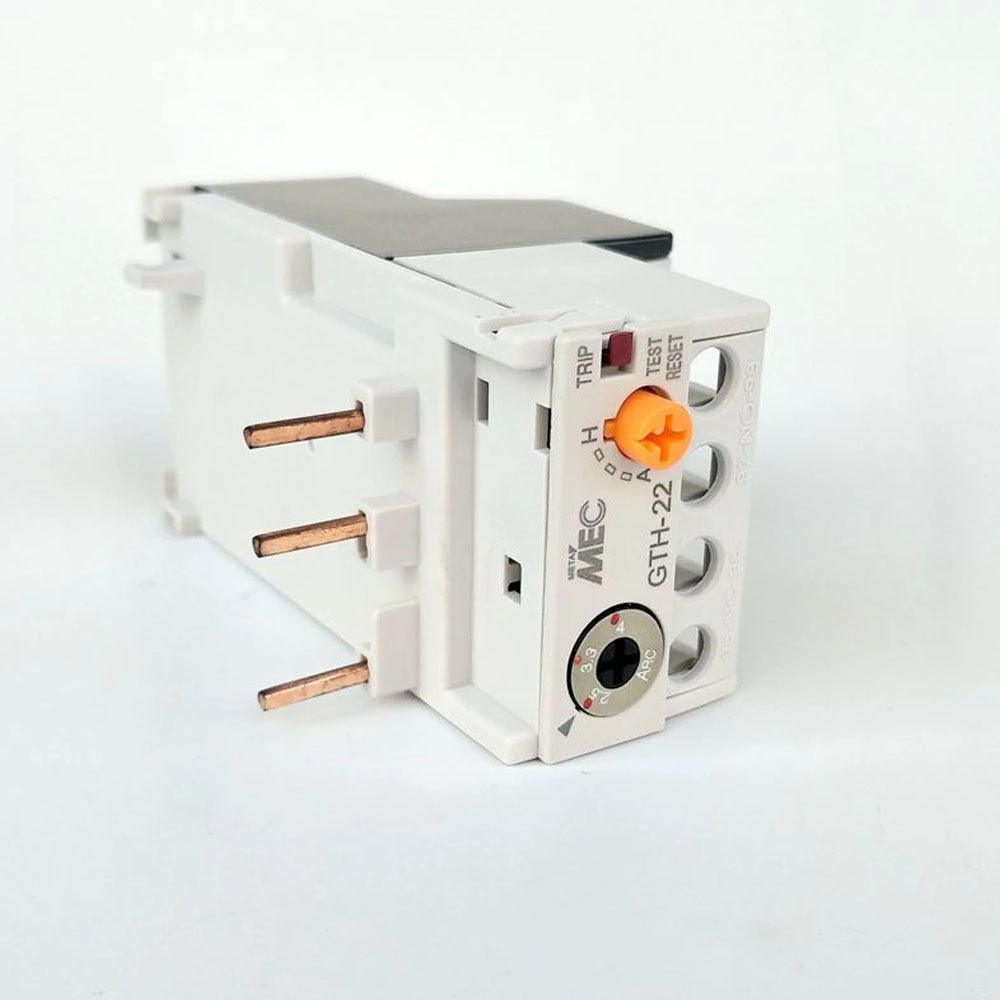

Thermal Relay MEC GTH-22 BR2450
GT series thermal overload relay is suitable for overload and phase failure protection of AC motors with a frequency of 50/60Hz, voltage up to 690v, current up to 0.1~85A under an 8-hours duty or uninterrupted duty.
Functions provided by these relays are phase-failure protection, temperature compensation, ON/OFF indication, Stop button, Test button and manual/automatic reset.
Quick Details
Place of Origin: Shanghai, China (Mainland)
Electricity Type: AC
Number of Pole: 3
Phase: 3
Main Circuit Rating Voltage: 380v
Main Circuit Rating Current: 4A To 6A
Manufacturer: LS
Motor Control: AC Contactor
Rated Voltage: 480V
Pole Number: 3Pole
Auxiliary Blocks: 1NO/1NC
Products name: electric contactor
Coils voltage: 220V 50/60HZ
Contactor: mec gmc contactor
Model: meta-mec ac contactor
