4.5 HSF 400 Vac Single Rating capacitor
SKU:BR4941
Couldn't load pickup availability
4.5 HSF 400 Vac Single Rating capacitor in Pakistan BR4941
Description
This series of capacitors have been designed in oval shape according to VDE 0560-8 FPU class, UL-810, IEC-252-1 for all types of A.C. applications, where a high degree of protection against explosion or fire is required.
Features:
- Air Conditioners
- Washing Machines
- Refrigerators
- Power Factor correction
- Single-phase motors
Specifications:
| Part No. | 1.P.6.A.400.045 |
|---|---|
| Rated Capacitance | 4.5 µF~60µF |
| Rated Voltage | 400 VAC |

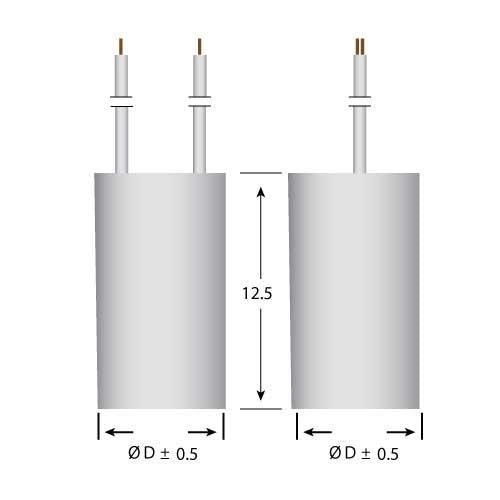

| Size Dia | 30 mm |
| Size H | 55 mm |
| Frequency | 50/60 Hz |
| Capacitance Tolerance | ±5%, ±10% (Others on Request) |
| Rated Temperature | -40/+70°C/21 |
| Rating | Single |
| Casing | Plastic Casing |
Construction:
The capacitors are filled with oil and are housed in an aluminum casing having an explosion and fireproof system. This system is based on the bulging of the upper deck of the capacitor following an internal overpressure which disconnects the internal connection. In this way, the capacitor is disconnected from the mains before the casing reaches its limit of overpressure causing explosion or fire.
Best Online Shopping website for 4.5 HSF 400 Vac Single Rating capacitor. Here you get a 4.5 HSF 400 Vac Single Rating capacitor at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
Package Includes:
1 x 4.5 HSF 400 Vac Single Rating capacitor
