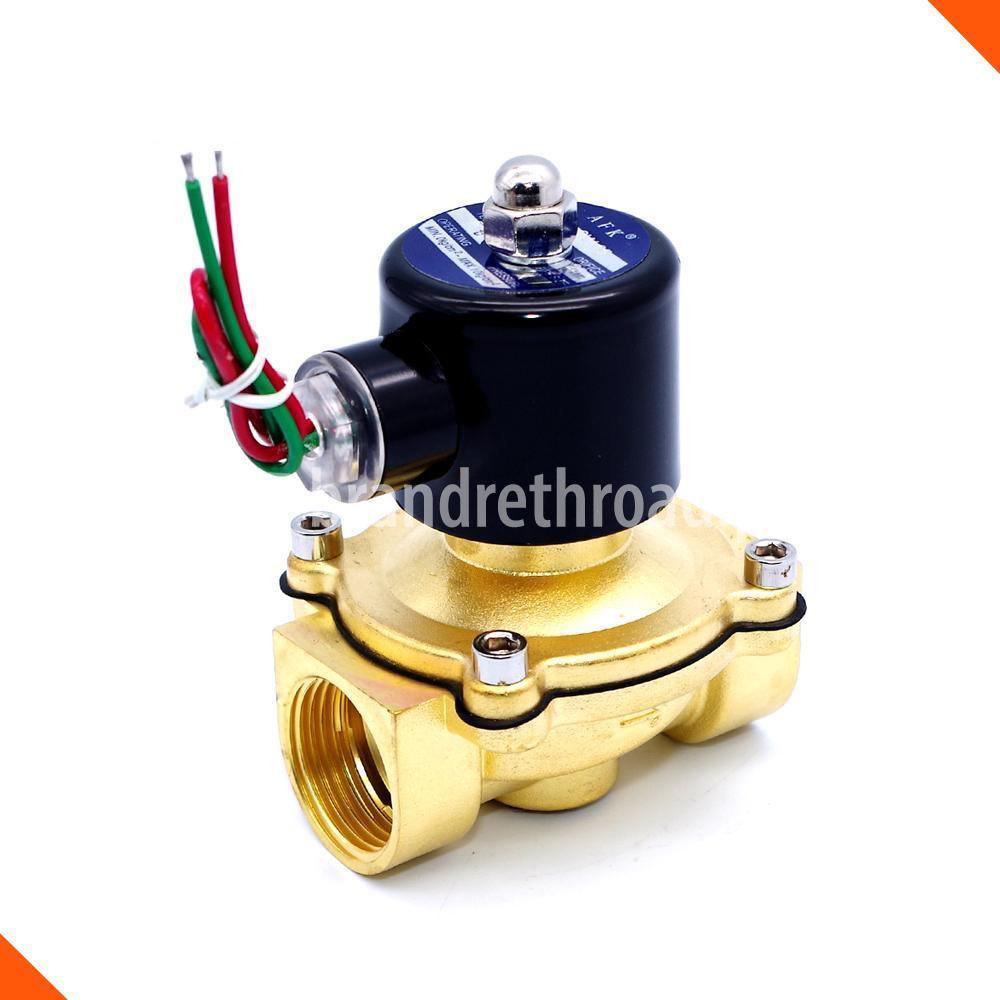

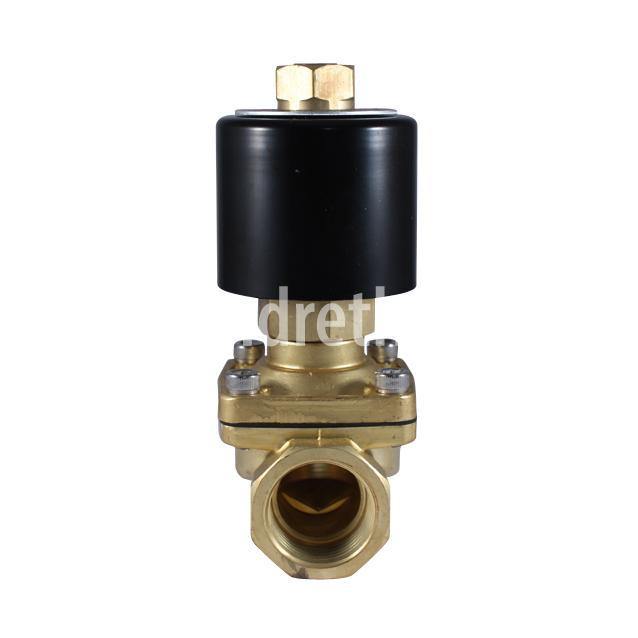

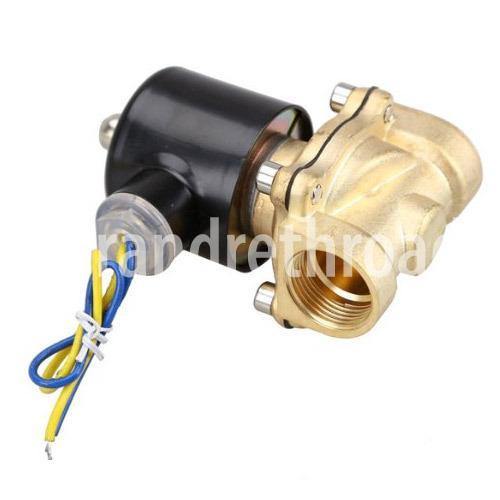

3/4" UNI-D Solenoid Valve for water and oil, NO
SKU:BR2088
Regular price
Rs 9,500
Regular price
Rs 5,400
Sale price
Rs 9,500
Unit price
per
Couldn't load pickup availability
3/4" UNI-D Solenoid Valve for water and oil,
Specifications:
|
Model |
2L170-10 | 2L170-15 | 2L170-20 | 2L200-25 | 2L300-40 | 2L500-50 | |
| Fluid | Air, Water, Steam | ||||||
| Operation | Guide type | ||||||
| Type | Normal open type | ||||||
| Aperture (mm) | 17 | 22 | 30 | 50 | |||
| Cv value | 4.8 | 12 | 20 | 48 | |||
| Port size | G3/8'' | G1/2'' | G3/4'' | G1'' | G1 1/2'' | G2'' | |
| Operation fl uid viscosity | 20 CST Below | ||||||
| Operating pressure | 0.1 ~ 1.5MPa | ||||||
| Max. Proof pressure | 2.25MPa | ||||||
| Operating temperature | -5 ~ 180C | ||||||
| EVoltage range | ±10% | ||||||
| Material of body | Brass | ||||||
| Material of oil seal | PTFE | ||||||
Packages Include:
1 x 3/4" UNI-D Solenoid Valve for water and oil, NO
