A power supply is an electrical device that offers electric power to an electrical load such as a laptop computer, server, or other electronic devices. The primary function of a power supply is to convert electric current from a source to the correct voltage, current, and frequency to power the load.

Features:

1. Compact structure, ultra-high power density up to 27W/in3
2. Soft-switching technology, high efficiency more than 91%.
3. Leading APFC tech (active power factor correction), power factor > 0.99
4. Multiple protection and safety regulations (CE/UL/3C/TLC)
5. Supports hot plugging without damage.
6. Customized output interface available, with communication port RS485.
7. Paralleled work available via the current sharing bus
8. Wide operating temperature range:-20~+60ºC

Specifications:

• Power 1600W
• Efficiency 91%
• DC input voltage 128~396Vdc
• AC Input voltage 90~280Vac
• AC input frequency 45~65Hz
• AC input current 13.5A
• Power factor 0.99
• Output voltage 42~58Vdc
• Output current 30A
• Stabilized voltage precision ±1%
• Load regulation ±1%
• Ripple+Noise(Vp-p) 200mV
• Operating Temperature -20~60ºC
• Storage Temperature -40~70ºC
• Acoustic noise 55dB
• Humidity 5~95%
• Turn-on time 3~8S
• Current-sharing ±5%
• Temperature coefficient ±0.02%/ºC
• Reliability(calculated) ≤150,000hours
• Dimensions 208x116.5x41.6(mm)/8.2x4.6x1.6(in.)
• Weight ≤1.5KG

Package Includes:

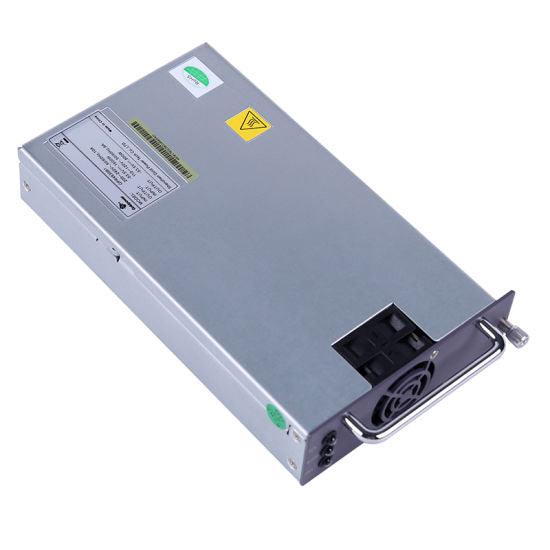

1 x High-Efficiency Rectifier Module Power Supply
