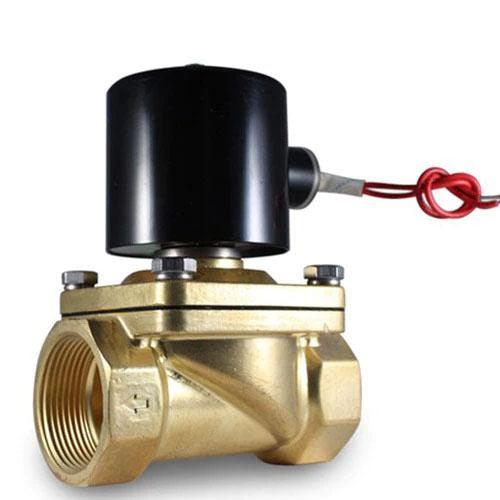

3/4" UNI-D Solenoid Valve for water and oil, NC 12vdc

1 total reviews

Regular price Rs 3,000
Regular price Rs 3,500 Sale price Rs 3,000
Sale Sold out
BR2333

3/4" UNI-D Solenoid Valve for water and oil, in Pakistan BR2333




Specifications:

Standard Voltage: AC110V,220V  DC12V,24V


Model


2L170-10 2L170-15 2L170-20 2L200-25 2L300-40 2L500-50
Fluid Air, Water, Steam
Operation Guide type
Type Normal close type
Aperture (mm) 17 22 30 50
Cv value 4.8 12 20 48
Port size G3/8'' G1/2'' G3/4'' G1'' G1 1/2'' G2''
Operation fl aid viscosity 20 CST Below
Operating pressure 0.1 ~ 1.5MPa
Max. Proof pressure 2.25MPa
Operating temperature -5 ~ 180C
E Voltage range ±10%
Material of body Brass
The material of the oil seal PTFE
 Best Online Shopping website for 3/4" UNI-D Solenoid Valve for water and oil, NC 12vdc. Here you get 3/4" UNI-D Solenoid Valve for water and oil, NC 12vdc at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.


Packages Include:

 1 x 3/4" UNI-D Solenoid Valve

Description

3/4" UNI-D Solenoid Valve for water and oil, in Pakistan BR2333




Specifications:

Standard Voltage: AC110V,220V  DC12V,24V


Model


2L170-10 2L170-15 2L170-20 2L200-25 2L300-40 2L500-50
Fluid Air, Water, Steam
Operation Guide type
Type Normal close type
Aperture (mm) 17 22 30 50
Cv value 4.8 12 20 48
Port size G3/8'' G1/2'' G3/4'' G1'' G1 1/2'' G2''
Operation fl aid viscosity 20 CST Below
Operating pressure 0.1 ~ 1.5MPa
Max. Proof pressure 2.25MPa
Operating temperature -5 ~ 180C
E Voltage range ±10%
Material of body Brass
The material of the oil seal PTFE
 Best Online Shopping website for 3/4" UNI-D Solenoid Valve for water and oil, NC 12vdc. Here you get 3/4" UNI-D Solenoid Valve for water and oil, NC 12vdc at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.


Packages Include:

 1 x 3/4" UNI-D Solenoid Valve
