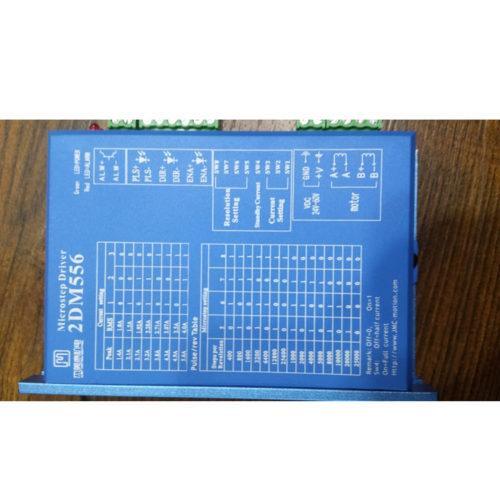

2DM556 CNC Digital stepper motor drive in pakistan BR1997



Introduction:

 2DM556 is newest digital stepper motor driver launched by JMC, using the latest 32-bit DSP control technology, the user can set any segment within 25600 and multi-range current value within rated current,with built-in micro technology,2DM556 driver greatly improved stability and reduced noise under subdivision.

Key Features:




• The new 32-bit DSP technology


 Optically isolated differential inputs (26LS32)    Extra-low noise and vibration    The range of micro steps is 2-128    Built in 500 times high frequency micro steps    Driver 2 phase step motor with 4leads,6leads and 8leads    Current settings is optional between ratings    Pulse frequency response up to 200KHz    Overvoltage, undervoltage, short circuit protection    Alarm output function I / O ports    Specifications    <table width="100%"

Parameters



Min



Typical



Max



Unit



Output Current (Peak)



1.4



-



5.6



Amps



Supply voltage



24



36



60



VDC



Logic Input Current



7



10



-



mA



Pulse input frequency



-



-



250



KHz



Low Level Time



2.5



-



-



µsec



 <table width="100%"

Cooling



Natural Cooling or Forced Convection



Environment



Space



Avoid dust, oil frost and



corrosive gases



Ambient Temperature



0°C?65°C



Humidity



<80%RH



Vibration



5.9m/s² Max



Storage Temp.



-10°C ?80°C



Weight



Approx. 0.26 Kg
