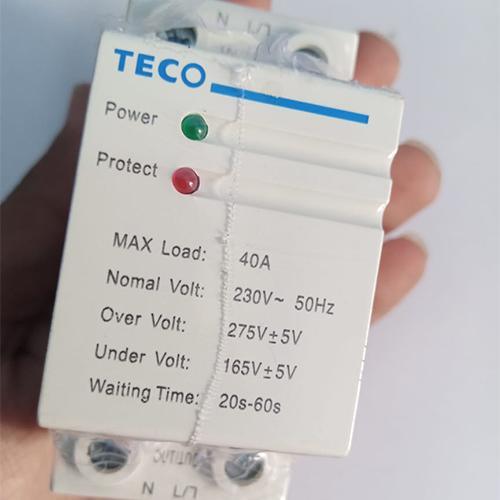

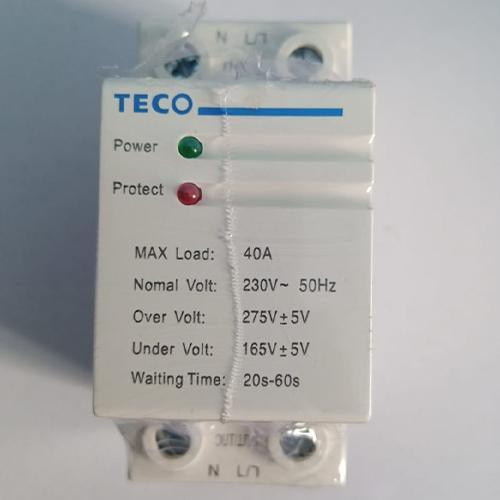

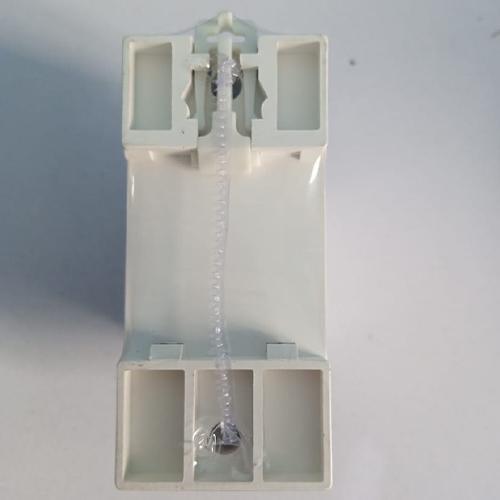

230V Under Over Volt Protection Voltage Protector Circuit Breaker

Regular price Rs 1,000
Regular price Rs 1,100 Sale price Rs 1,000
Sale Sold out
BR3128-B202

230V Under Over Volt Protection Voltage Protector Circuit Breaker in Pakistan BR3128

Description:

The automatic recovery over voltage and under voltage protection device complies with modular design standards. the circuit boards of products adopt good quality electronic components with reliable performance. when the power situation is unstable. It's protection function will be automatically activated. once the voltage exceeds the limited range of products, it will automatically cut off so as to protect the safely of electrical equipment and persons. The device will re-supply in 1 minute, when the power returns to normal.

  • The green indicator display, when the power is normal supply.
  • The red indicator display, when the power over voltage or under voltage.

Specification:

Rated AC voltage 230V±10%
Frequency 50Hz/60Hz
Max Load 40A
Normal Volt  230V~50Hz
Dimension 35L*70W*77Hmm
Installing 35mm Din rail
Normal-voltage value 175-270VAC
Self power consumption <2W
Waiting Time  20s-60s


Usage:

  • Can be use as main home power supply for home under consumption of 7K
  • Over and under voltage protector fro 230V AC power
  • Automatic reconnect
  • Max passing current 40A

Packages Include:

1 x 230V Under Over Volt Protection Voltage Protector Circuit Breaker
