220V Under Over Voltage Protector Circuit Breaker Single Phase Control in Pakistan BR6628
Description:
The automatic recovery over voltage and under voltage protection device complies with modular design standards. the circuit boards of products adopt good quality electronic components with reliable performance. when the power situation is unstable. Its protection function will be automatically activated. once the voltage exceeds the limited range of products, it will automatically cut off so as to protect the safety of electrical equipment and persons. The device will re-supply in 1 minute when the power returns to normal.

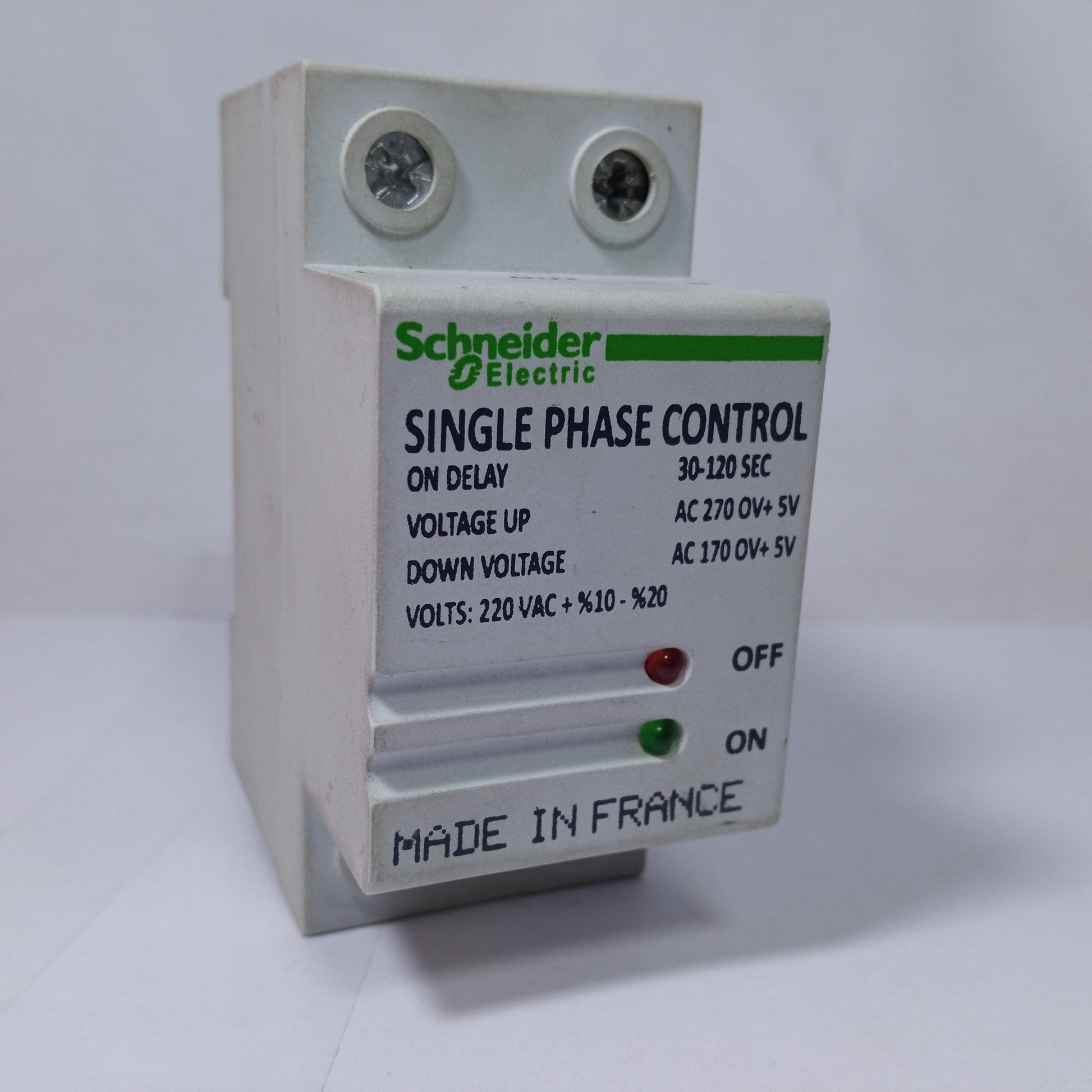

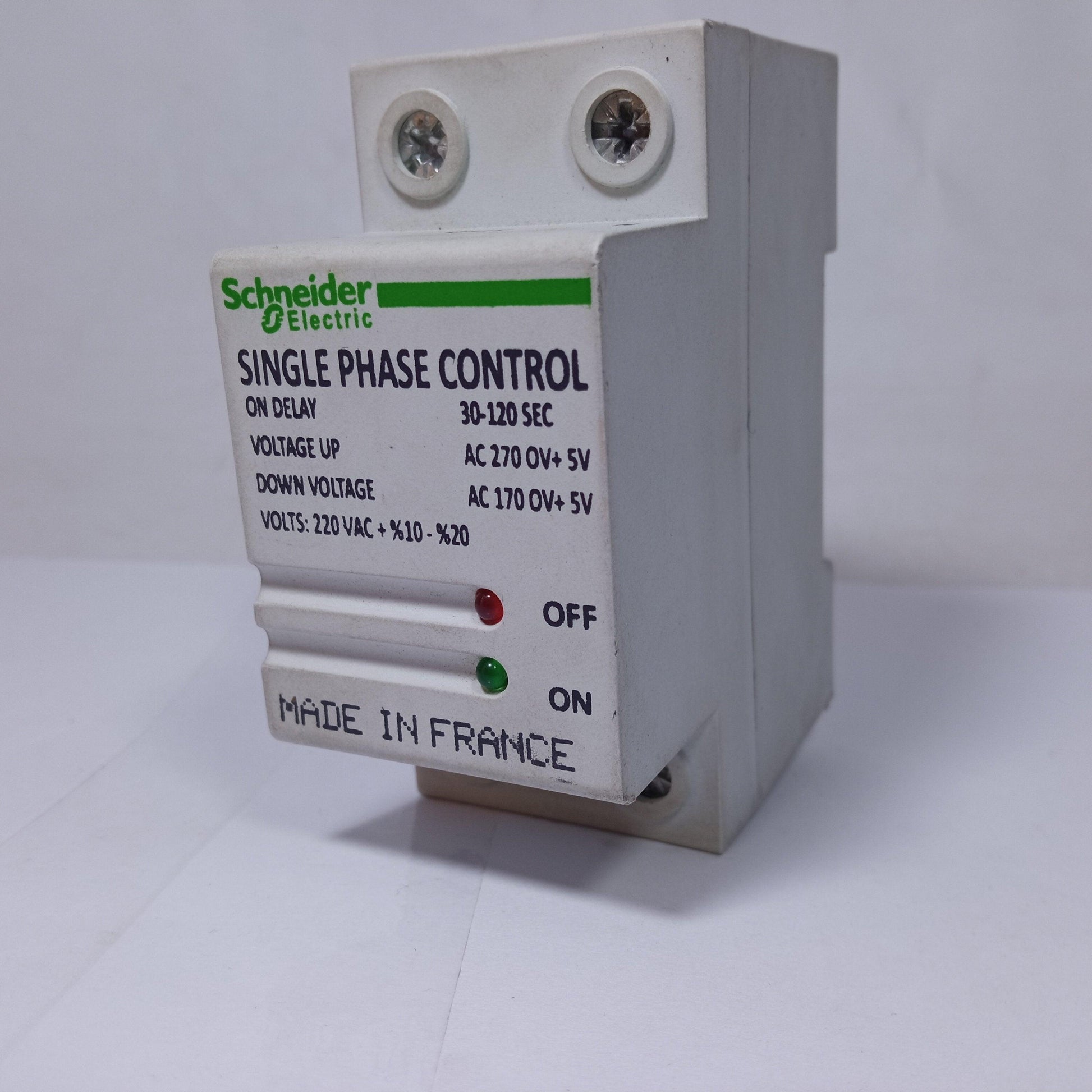

- The green indicator display, when the power is normal to supply.
- The red indicator display, when the power over voltage or under voltage.
Specification:
| Rated AC voltage | 230V±10% |
| Frequency | 50Hz/60Hz |
| Max Load | 40A |
| Normal Volt | 230V~50Hz |
| Dimension | 35L*70W*77Hmm |
| Installing | 35mm Din rail |
| Normal-voltage value | 175-270VAC |
| Self-power consumption | <2W |
| Waiting Time | The 20s-60s |
Usage:
- Can be used as a main home power supply for home under consumption of 7K
- Over and under voltage protector fro 230V AC power
- Automatic reconnect
- Max passing current 40A
