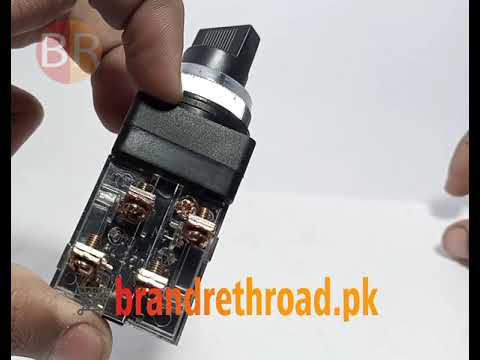

2 Positions Selector Lock Black Rotary Switch 250VAC 6A in Pakistan

2 total reviews

Regular price Rs 200
Regular price Rs 250 Sale price Rs 200
Sale Sold out
BR5241

A rotary switch is a switch operated by rotation. These are often chosen when more than 2 positions are needed, such as a three-speed fan or a CB radio with multiple frequencies of reception or "channels". ... Thus a rotary switch provides greater pole and throws capabilities than simpler switches do.

Specification:

  • Product Name :Push Button Switch
  • Contact Type :1NO 1NC (DPST)
  • Action Type: Latching(Rotary Selector)
  • Position of Number :2 Position
  • Insulation Voltage Max: 600V
  • Ith 6A
  • Ui AC 250V
  • Terminal Quantity: 4
  • Panel Cutout Diameter :25mm / 1"
  • Fit Panel Max. Thickness: 6mm / 0.24"
  • Total Size(Approx) :3.2 x 3.7 x 8.6cm / 1.3" x 1.5" x 3.4" (L*W*H)
  • External Material :Plastic, Metal
  • Color :Black, Clear
  • Net Weight :112g
  • Package Content: 2 x Push Button Switch

Features:

  • 1NO 1NC (DPST) contact type, Black 2 Position Rotary Selector, Latching action, 25mm panel cutout diameter.
  • Used widely to control the electromagnetic starter, contactor, relay, and other automatic control electric circuits.

Package includes:

   1 x 2 Positions Selector Lock Black Rotary Switch 250VAC 6A

Industryparts.pk is the Best Online Shopping website for 2 Positions Selector Lock Black Rotary Switch 250VAC 6A. Here you get 2 Positions Selector Lock Black Rotary Switch 250VAC 6Aat a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
