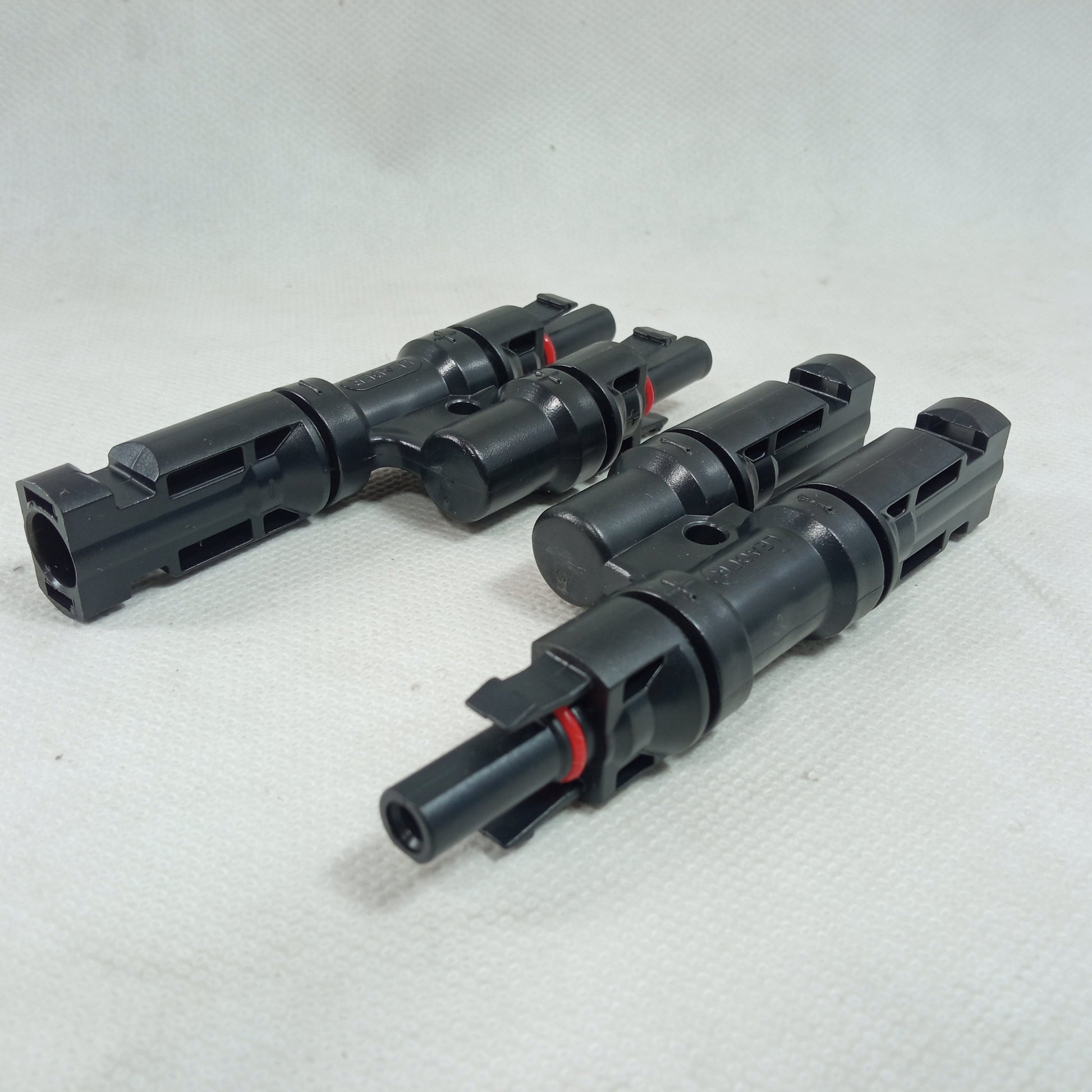

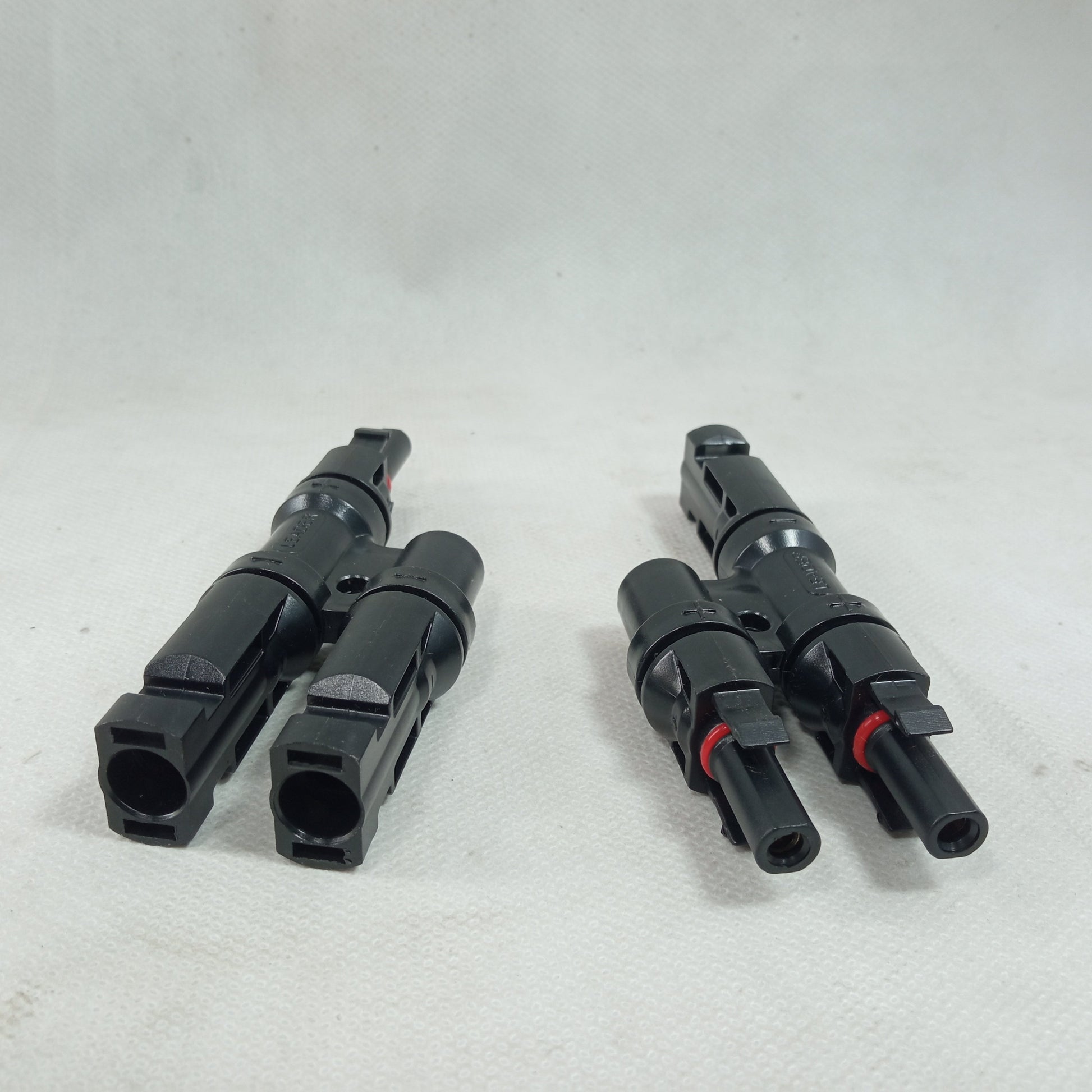

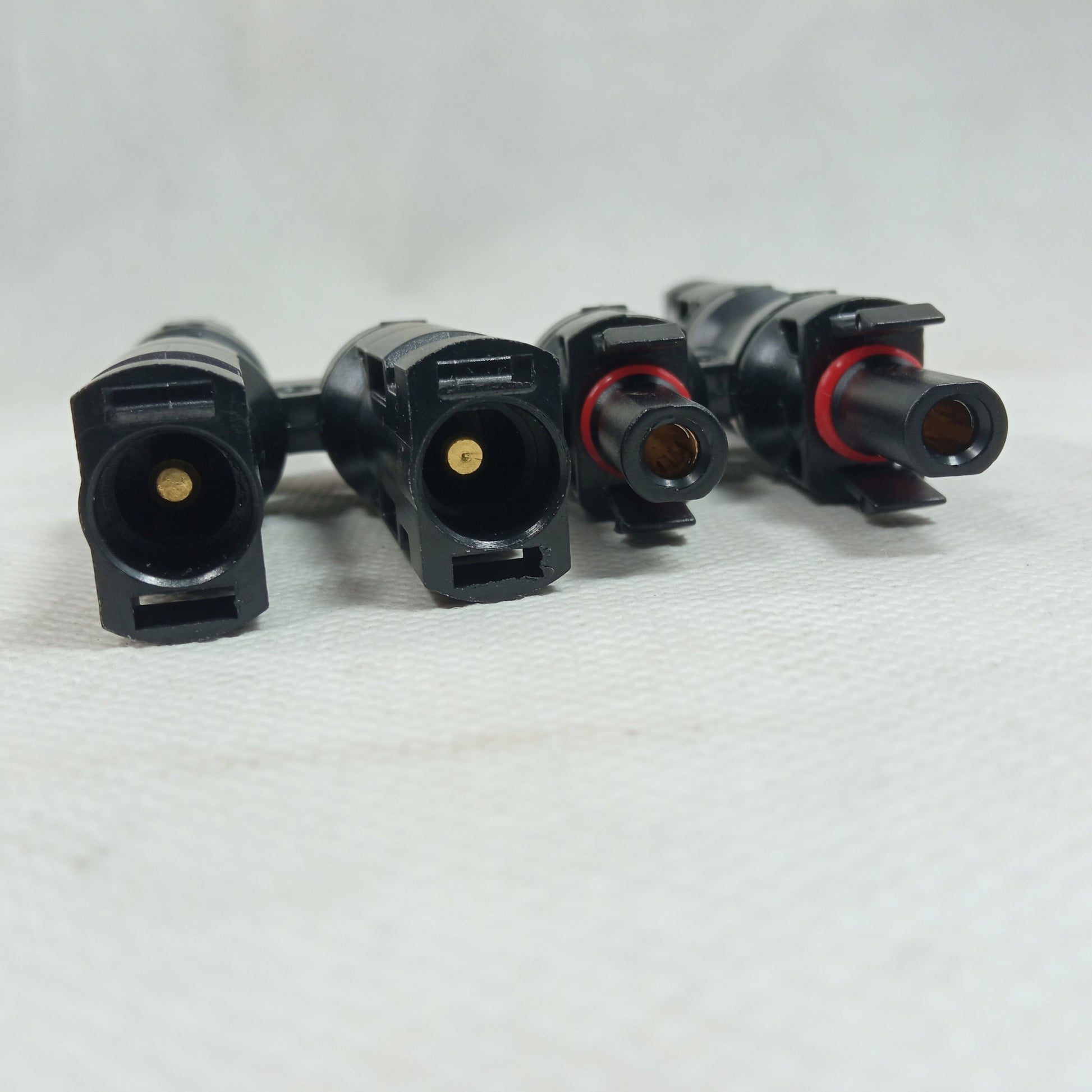

1500V DC 2 in 1 T Type MC4 branch connectors Leader Tech in Pakistan

SKU:BR4013-b207-st2

Regular price Rs 1,350
Regular price Rs 2,000 Sale price Rs 1,350
Sale Sold out

MC4 2 to 1 Branch connector is compatible with Multi-Contact MC4 connector, suitable for solar cable. 2.5mm2,4mm2 and 6mm2.This connector will make it easy to combine and connect your solar panels in series or parallel.

Features:

  1. Brand New and Waterproof IP67 Dustproof  2 to 1 Branch MC4 Solar Connector. 1 Male to 2 Female (M/FF) and 1 Female to 2 Male (F/MM).
  2. Fast and reliable quick and convenient to use, the outer casing is strong anti-aging, and ultraviolet-resistant.
  3. Easy to plug and unplug the connector without any tools, the cable connection is connected by riveting and fastening.
  4. Load capability with significant current and high voltage, compatible with PV cables with different insulation diameters.
  5. Protection class IP67 is Suitable for harsh outdoor environments.

Specifications:

  • Product NO.
  • Insulation material PPO
  • Rated Voltage 1500V DC
  • Rated Current 50A
  • Test voltage 6KV(50Hz,1Min)
  • Contact material copper, tin-plated
  • Contact resistance less than 0.5 m ohm
  • Degree of protection IP67
  • Pin dimension 4.0 MM
  • Compatible Solar cable 2.5/4.0 /6.0 mm² (14/12/10 AWG)

Package Includes:

1 x T Type MC4 connectors Leader Tech

Industryparts.pk is the Best Online Shopping website for T Type MC4 connectors Leader Tech. Here you get T-Type MC4 connectors from Leader Tech at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

1500V DC 2 in 1 T Type MC4 branch connectors Leader Tech Pakistan

1500V DC 2 in 1 T Type MC4 branch connectors Leader Tech Pakistan

1500V DC 2 in 1 T Type MC4 branch connectors Leader Tech Pakistan

1500V DC 2 in 1 T Type MC4 branch connectors Leader Tech Pakistan

1500V DC 2 in 1 T Type MC4 branch connectors Leader Tech Pakistan



View full details

Description

MC4 2 to 1 Branch connector is compatible with Multi-Contact MC4 connector, suitable for solar cable. 2.5mm2,4mm2 and 6mm2.This connector will make it easy to combine and connect your solar panels in series or parallel.

Features:

  1. Brand New and Waterproof IP67 Dustproof  2 to 1 Branch MC4 Solar Connector. 1 Male to 2 Female (M/FF) and 1 Female to 2 Male (F/MM).
  2. Fast and reliable quick and convenient to use, the outer casing is strong anti-aging, and ultraviolet-resistant.
  3. Easy to plug and unplug the connector without any tools, the cable connection is connected by riveting and fastening.
  4. Load capability with significant current and high voltage, compatible with PV cables with different insulation diameters.
  5. Protection class IP67 is Suitable for harsh outdoor environments.

Specifications:

  • Product NO.
  • Insulation material PPO
  • Rated Voltage 1500V DC
  • Rated Current 50A
  • Test voltage 6KV(50Hz,1Min)
  • Contact material copper, tin-plated
  • Contact resistance less than 0.5 m ohm
  • Degree of protection IP67
  • Pin dimension 4.0 MM
  • Compatible Solar cable 2.5/4.0 /6.0 mm² (14/12/10 AWG)

Package Includes:

1 x T Type MC4 connectors Leader Tech

Industryparts.pk is the Best Online Shopping website for T Type MC4 connectors Leader Tech. Here you get T-Type MC4 connectors from Leader Tech at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
