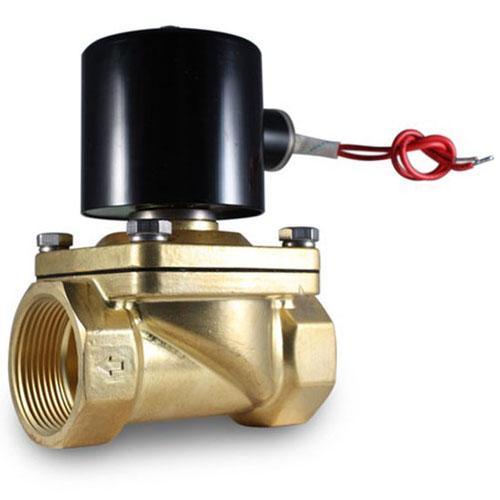

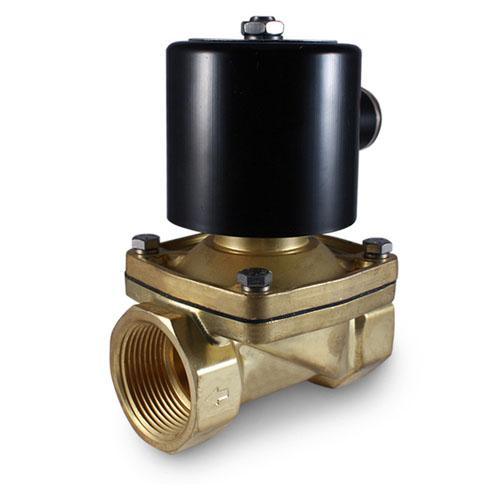

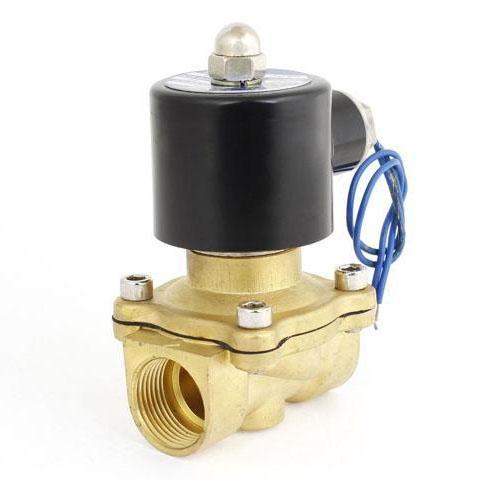

12V DC Solenoid Valve Coil 1/4 Inch in Pakistan

Regular price Rs 1,400
Regular price Rs 1,600 Sale price Rs 1,400
Sale Sold out
BR1405-b182

12V DC Solenoid Valve Coil 1/4 Inch in Pakistan BR1405

Description:

Normally closed: When the coil is energized, the pilot spool is closed, the pilot hole is opened, the upper chamber of the valve is relieved, the piston is pushed by the medium pressure of the lower chamber, and the solenoid valve is opened.
When the coil is de-energized, the pilot spool is reset by the spring, the pilot hole is closed, the upper chamber of the valve is pressurized by the piston orifice and the thrust of the return spring, and the solenoid valve is closed.

Specification:

High quality replacement part for use with pipelines in water, air and diesel applications
Acting Motion Direct action
Medium Air, water, diesel
Operating Type Directly driven
State Normally closed
Supply Voltage 12V DC
Pipe Size 1/4
Operating Pressure MIN 0kg/cm2 – 7kg/cm2
Fluid Temperature -5-80℃
Valve Body Brass
Operating Viscosity Under 20CST
Oil Seal Material NBR
Installation Fluid direction should be as the arrow shows

Online Shopping website for 12V DC Solenoid Valve Coil 1/4 Inch. Here you get 12V DC Solenoid Valve Coil 1/4 Inch in a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Packages Include:

1 x 12V DC Solenoid Valve Coil 1/4 Inch
