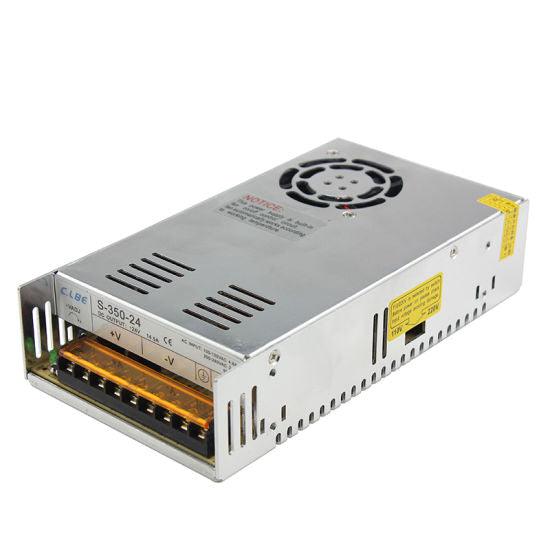

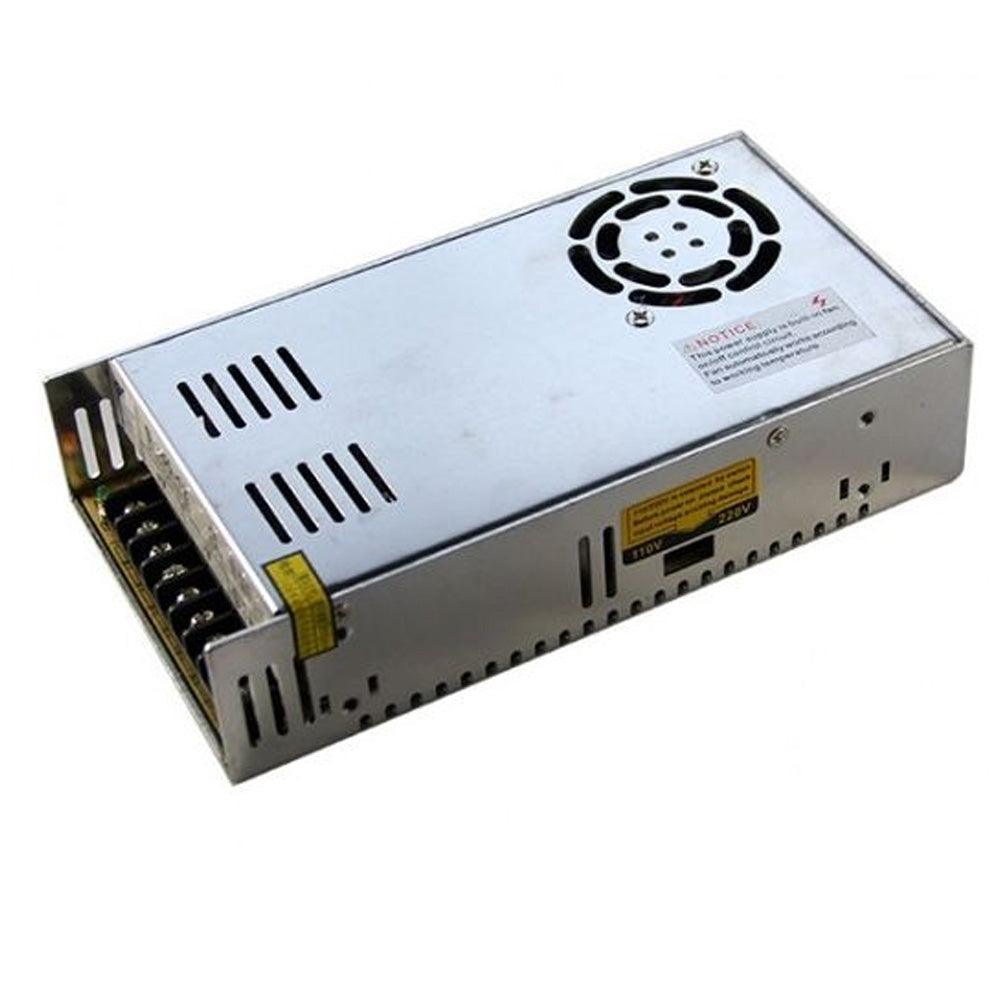

12V 29A DC Power Supply New in Pakistan

SKU:BR1490-D3b b143-st1

Regular price Rs 3,200
Regular price Rs 4,000 Sale price Rs 3,200
Sale Sold out

A 12V 29A DC power supply is a device that provides a stable and regulated direct current (DC) output of 12 volts with a maximum current capacity of 29 amperes.

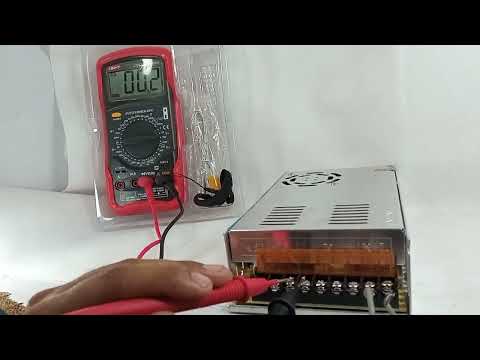

https://youtu.be/k4mA_N4mOso

Features:

  1. 348W 12V 29A Single Output Switchable Power Supply 12 Volts 29 Amps Features
  2. AC input range selectable by a switch
  3. Withstand 300 VAC surge input for 5 seconds
  4. No load power consumption
  5. 1U low profile
  6. High operating temperature, up to 70°C
  7. Protections: Short circuit / Overload / Over voltage / Over temperature
  8. Built-in cooling fan, ON-OFF control
  9. Compliance to UL 60950-1
  10. Withstand 5G vibration test
  11. High efficiency, long life and high reliability
  12. LED indicator for power on
  13. 100% full load burn-in test

Specification:

  • AC input voltage range: ?85-264VAC 47-63Hz
  • Input current: 115V /2A, 230V/1A  Output: 12V/ 0-30A
  • AC inrush current: Cold-start current 20A/115A 40A/230V  Leakage current: <1MA/240VAC  Dc adjustable range: +/_10% rated output voltage
  • Overload protection: 105%-150% hiccup mode, auto-recovery
  • Over-voltage protection: 115%-135% cut off the output, auto-recovery  Setup, rise, hold up time: 200ms, 50ms, 20ms.  Load regulation: +/_ 1%
  • Working temperature: -10?~+60?, 20%~90RH  Weight/package/size: 0.65kg, 199x 109x 50mm  1490

Package Includes:
1 x 12V 29A DC Power Supply

Industryparts.pk is the Best Online Shopping website for 12V 29A DC Power Supply. Here you get 12V 29A DC Power Supply at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
