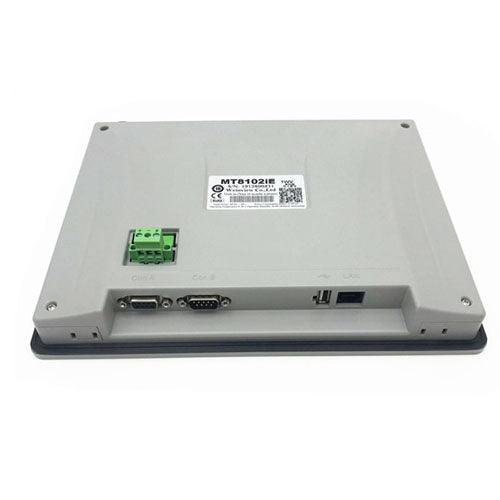

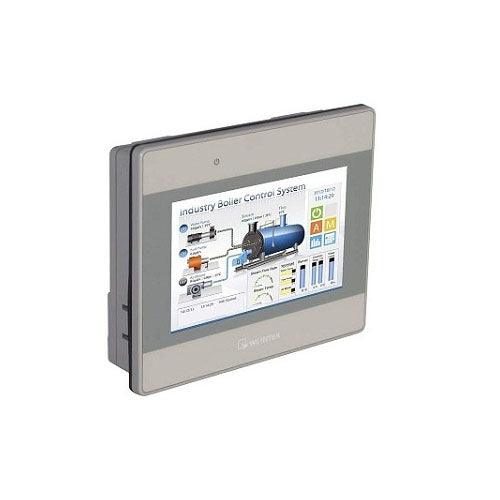

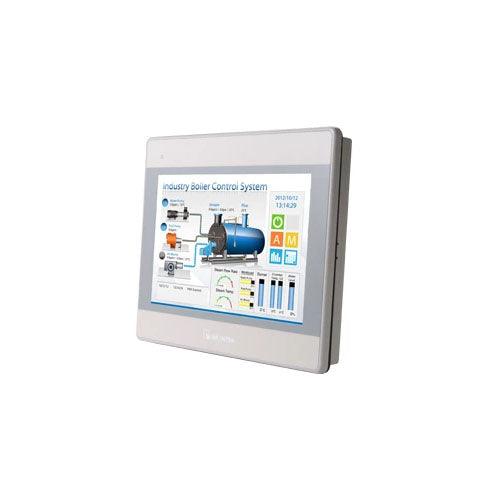

Weintek MT8102iE Human Machine Interface in Pakistan

1 total reviews

Regular price Rs 47,250
Regular price Rs 48,000 Sale price Rs 47,250
Sale Sold out
BR1481-W

A Human-Machine Interface (HMI) is a user interface or dashboard that connects a person to a machine, system, or device. While the term can technically be applied to any screen that allows a user to interact with a device, HMI is most commonly used in the context of an industrial process.

Specifications:

  • Display
    Display: 10.1" TFT
    Resolution: 1024 x 600
    Brightness (cd/m²): 350
    Contrast Ratio: 500:1
    Backlight Life Time: >50,000 hrs.
    Colors: 16.7M
    LCD Viewing Angle (T/B/L/R): 60/60/70/70
  • Touch Panel
    Type: 4-wires Resistive type
    Accuracy: Active Area Length(X)±2%, Width(Y)±2%
  • Memory
    Flash: 128 MB
    RAM: 128 MB
  • Processor
    32-bit RISC Cortex-A8 600MHz
  • I/O Port
    USB Host: USB 2.0 x 1
    Ethernet: 10/100 Base-T x 1
    COM 2: RS-485 2W/4W
    COM 3: RS-485 2W
  • RTC
    Built-in
  • Power
    Input Power: 24±20 VDC
    Power Isolation: Built-in
    Power Consumption: 650 mA @ 24 VDC
    Voltage Resistance: 500VAC (1 min.)
    Vibration Endurance: 10 to 25Hz (X, Y, Z direction 2G 30 minutes)
  • Specification
    PCB Coating: Yes
    Enclosure: Plastic
    Dimensions WxHxD: 271  x 213 x 36.4 mm
    Panel Cutout: 260 x 202 mm
    Mount: Panel mount
  • Environment
    Protection Structure: NEMA4 / IP65 Compliant Front Panel
    Storage Temperature: -20° ~ 60°C (-4° ~ 140°F)
    Operating Temperature:
    -0° ~ 50°C (32° ~ 122°F)
    Relative Humidity: 10% ~ 90% (non-condensing)
  • Certificate
    CE: CE marked
  • Software
    EasyBuilder Pro

Package Includes:

1 x Weintek MT8102iE Human Machine Interface


Industryparts.pk is the Best Online Shopping website for Weintek MT8102iE Human Machine Interface. Here you get Weintek MT8102iE Human Machine Interface at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Description

A Human-Machine Interface (HMI) is a user interface or dashboard that connects a person to a machine, system, or device. While the term can technically be applied to any screen that allows a user to interact with a device, HMI is most commonly used in the context of an industrial process.

Specifications:

  • Display
    Display: 10.1" TFT
    Resolution: 1024 x 600
    Brightness (cd/m²): 350
    Contrast Ratio: 500:1
    Backlight Life Time: >50,000 hrs.
    Colors: 16.7M
    LCD Viewing Angle (T/B/L/R): 60/60/70/70
  • Touch Panel
    Type: 4-wires Resistive type
    Accuracy: Active Area Length(X)±2%, Width(Y)±2%
  • Memory
    Flash: 128 MB
    RAM: 128 MB
  • Processor
    32-bit RISC Cortex-A8 600MHz
  • I/O Port
    USB Host: USB 2.0 x 1
    Ethernet: 10/100 Base-T x 1
    COM 2: RS-485 2W/4W
    COM 3: RS-485 2W
  • RTC
    Built-in
  • Power
    Input Power: 24±20 VDC
    Power Isolation: Built-in
    Power Consumption: 650 mA @ 24 VDC
    Voltage Resistance: 500VAC (1 min.)
    Vibration Endurance: 10 to 25Hz (X, Y, Z direction 2G 30 minutes)
  • Specification
    PCB Coating: Yes
    Enclosure: Plastic
    Dimensions WxHxD: 271  x 213 x 36.4 mm
    Panel Cutout: 260 x 202 mm
    Mount: Panel mount
  • Environment
    Protection Structure: NEMA4 / IP65 Compliant Front Panel
    Storage Temperature: -20° ~ 60°C (-4° ~ 140°F)
    Operating Temperature:
    -0° ~ 50°C (32° ~ 122°F)
    Relative Humidity: 10% ~ 90% (non-condensing)
  • Certificate
    CE: CE marked
  • Software
    EasyBuilder Pro

Package Includes:

1 x Weintek MT8102iE Human Machine Interface


Industryparts.pk is the Best Online Shopping website for Weintek MT8102iE Human Machine Interface. Here you get Weintek MT8102iE Human Machine Interface at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
