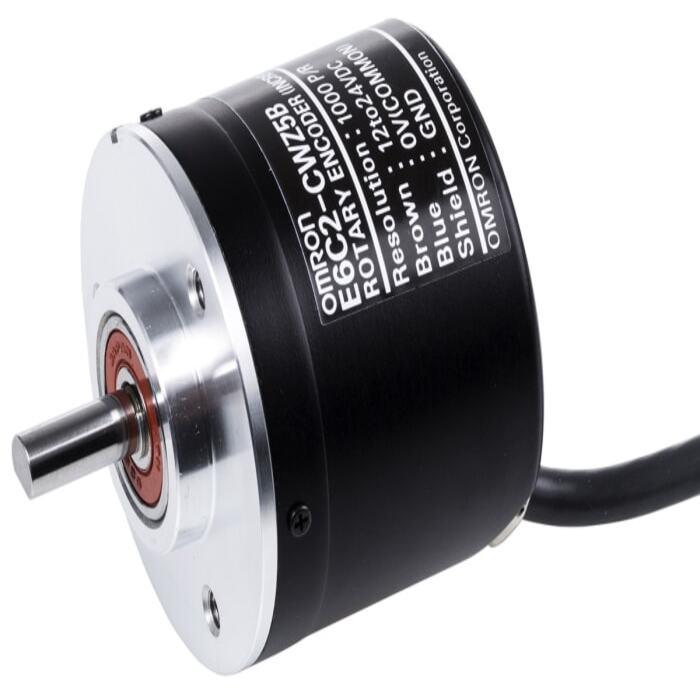

1000PPR OMRON Incremental Rotary Encoder E6C2-CWZ5B in Pakistan

1000PPR OMRON Incremental Rotary Encoder E6C2-CWZ5B in Pakistan

BR8287

Rs 6,500 PKR
Rs 8,000 PKR Rs 6,500 PKR
Sale Sold out

Omron E6C2 series incremental encoders output a pulse string according to the rotational displacement of an axis. The number of rotations can be detected by counting the number of pulses. Improved reliability with reverse connection and load short circuit protection.

Specification:

  • Brand: Omron
  •  Pulses Per Revolution: 1000
  • Maximum Revolutions: 6000rpm
  • Output Signal Type: Open Collector
  • Supply Voltage: 12 → 24 V dc
  • Shaft Diameter: 6mm
  • Resolution: 1000 P/R
  •  Overall Height: 40mm
  • Minimum Operating Temperature: -10°C
  • Maximum Operating Temperature: +70°C
  • Switching Frequency: 50 kHz
  • Series: E6C2

Industryparts.pk Best Online Shopping website for 1000PPR OMRON Incremental Rotary Encoder E6C2-CWZ5B in Pakistan. We deliver in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package includes:

      1 x 1000PPR OMRON Incremental Rotary Encoder E6C2-CWZ5B
