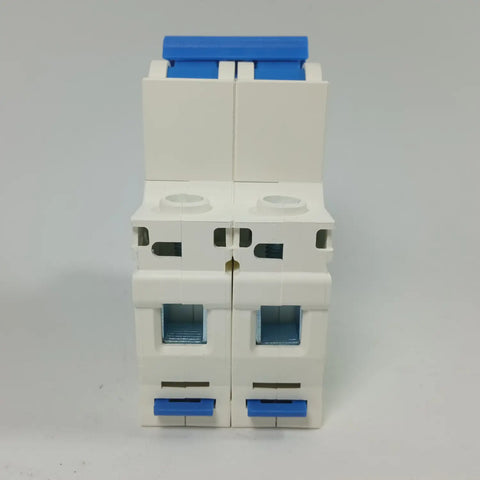

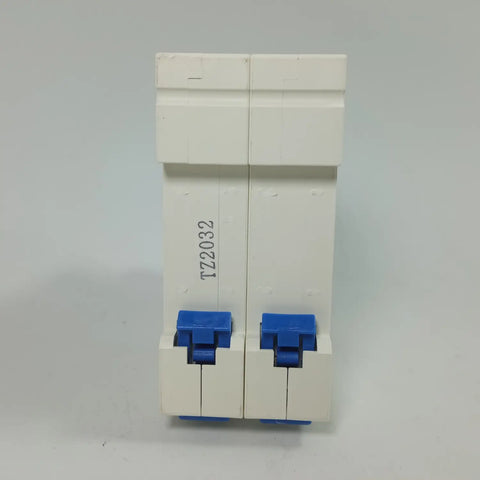

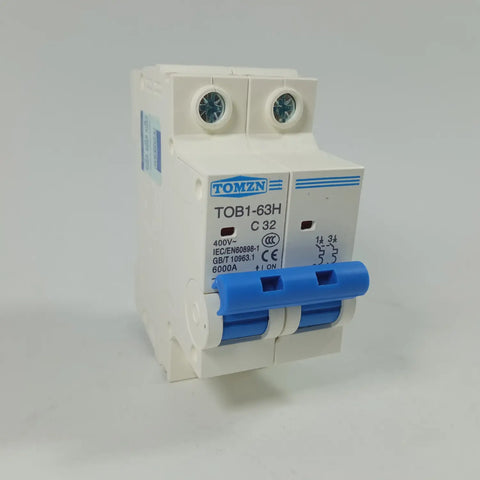

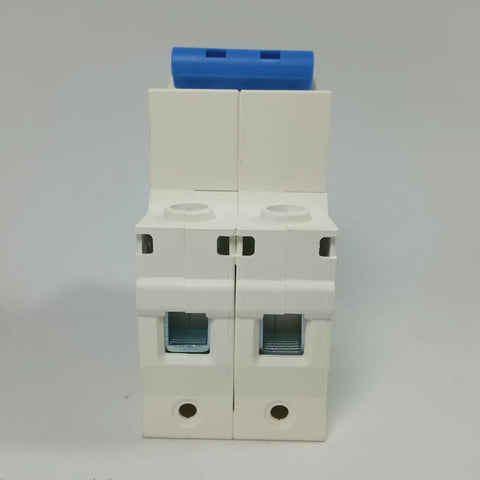

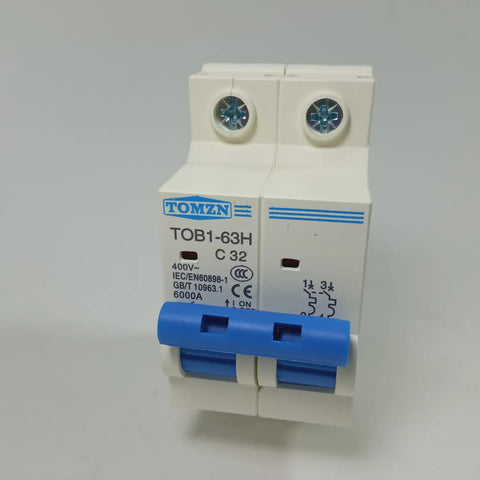

The TOMZN TOB1-63H4P 32A 2P AC MCB is a Mini Circuit Breaker (MCB) with a current rating of 32A and a pole configuration of 2P (two poles). It belongs to the TOB1-63 series and has a C-type trip curve. The voltage rating is 230/400V~ and the frequency is 50Hz/60Hz.
Features:
- Model: TOB1-63H4P
- Current Rating: 32A
- Type: Mini Circuit Breaker (MCB)
- Trip Curve: C Type
- Voltage Rating: 230/400V~
- Frequency: 50Hz/60Hz
- Pole Configuration: 2P (two poles)
- Provides protection against overcurrents and short circuits
- Suitable for AC electrical systems
- Compact design for space-efficient installations
- Reliable performance and durability
- Designed for residential, commercial, and industrial applications
Uses:
- Residential buildings
- Commercial buildings
- Industrial applications
- Power distribution systems
- Control panels and switchboards
- Renewable energy systems
Specification:
- Model: TOB1-63H4P
- Current Rating: 32A
- Type: Mini Circuit Breaker (MCB)
- Trip Curve: C Type
- Voltage Rating: 230/400V~
- Frequency: 50Hz/60Hz
- Pole Configuration: 2P (two poles)
- Breaking Capacity: 6kA
- Rated Insulation Voltage: 500V
- Rated Frequency: 50Hz/60Hz
- Rated Impulse Withstand Voltage: 6kV
- Operating Temperature: -25°C to +55°C
- Mounting: DIN Rail
- Standards: IEC 60898
Industryparts.pk is the Best Online Shopping website for TOMZN TOB1-63H4P 32A 2P C Type AC Mini Circuit breaker. Here you get TOMZN TOB1-63H4P 32A 2P C Type AC Mini Circuit breaker at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
Package Includes:
1 x TOMZN TOB1-63H4P 32A 2P C Type AC Mini Circuit breaker
| Size |
16A, 20A, 25A, 32A, 40A, 63A, 75A |
|---|
