Solenoid valves are control units that, when electrically energized or de-energized, either shut off or allow fluid flow. The actuator takes the form of an electromagnet. When energized, a magnetic field builds up which pulls a plunger or pivoted armature against the action of a spring.
Features:
- Pilot-oriented mode: optional for internal or external.
- Structure in sliding column mode: good tightness and sensitive reaction.
- Three-position solenoid valves have three kinds of central functions for your choice.
- Double control solenoid valves have memory function.
- Internal hole adopts unique processing technology with little attrition friction, low start pressure, and long service life.
- No need to add oil for lubrication.
- It is available to form an integrated valve group with the base to save installation space.
- Connected manual devices are equipped to facilitate installation and debugging.
- Several standard voltage grades are optional.
Specifications:

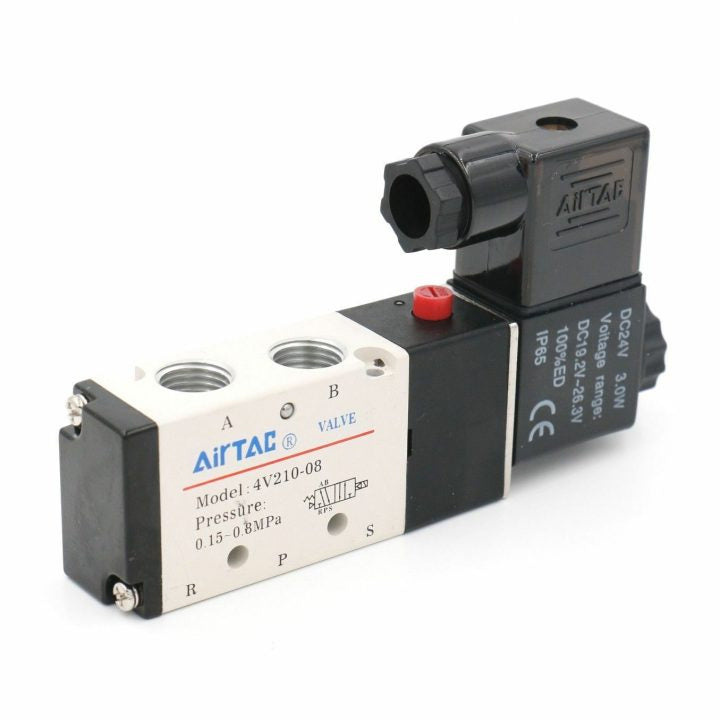

- Product Name: Solenoid Valve
- Model: 4V210-08
- Working Pressure: 0.15~0.8Mpa
- Max. Pressure Resistance: 1.2Mpa
- Operating Temperature: -5~50 degrees
- Current: 250mA
- Insulation&Protection Class: F. IP65
- Highest Action Frequency: 4
- Excitation Time: 0.05 Second
- Position & Way Number: Two-position, Five-way
- Effective Sectional Area: 16mm2 (CV=0.89)
- Joint Pipe Bore: Inlet=Outlet=1/4””, Exhaust=1/8″
- Total Size: 11.8 x 6.6 x 2.1cm/4.6”” x 2.6”” x 0.8″(L*W*H)
- External Material: Metal, Plastic
- Color: White, Black
- Net Weight: 215g
Package Includes:

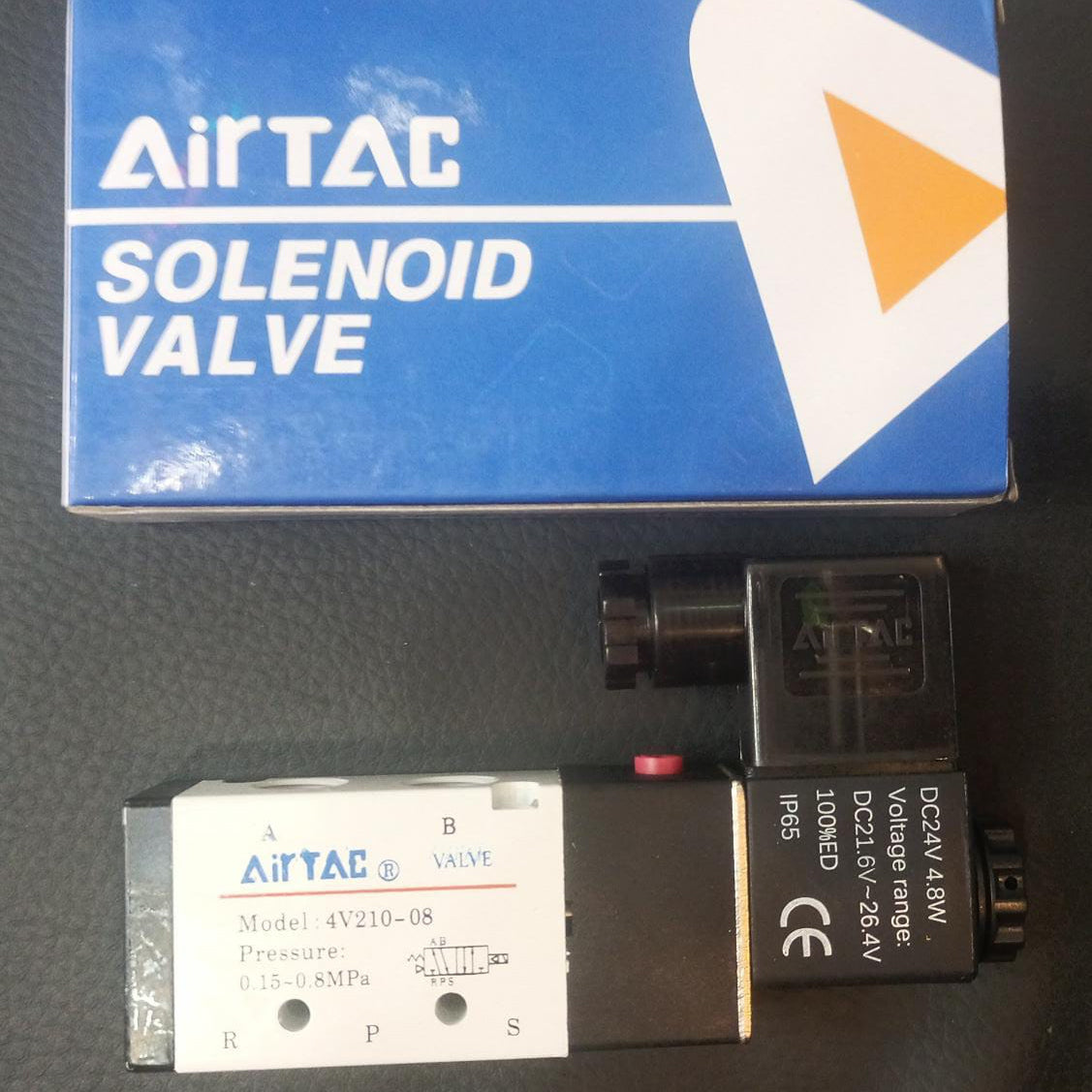

1 x Airtac Solenoid Valve 5way
