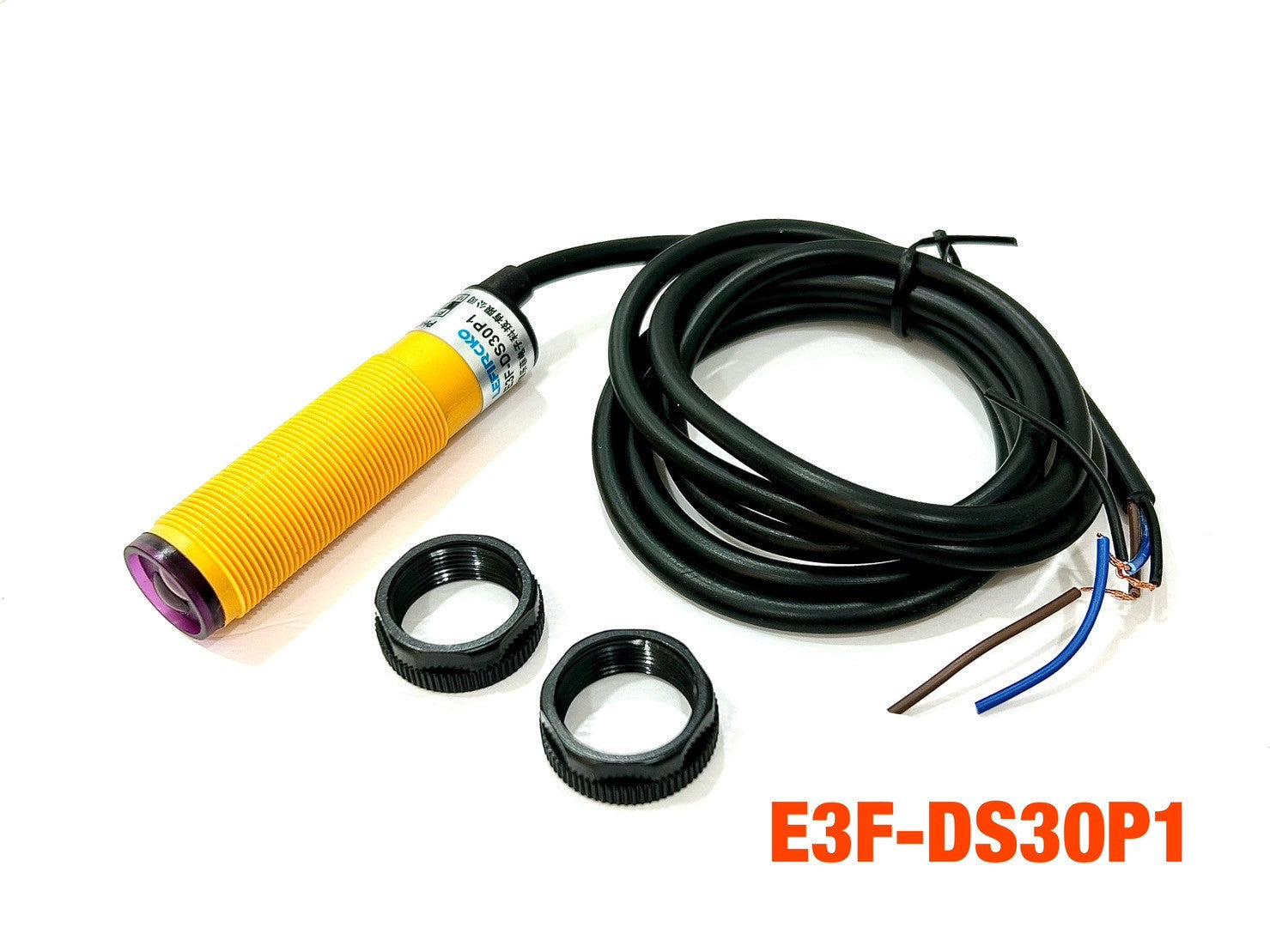

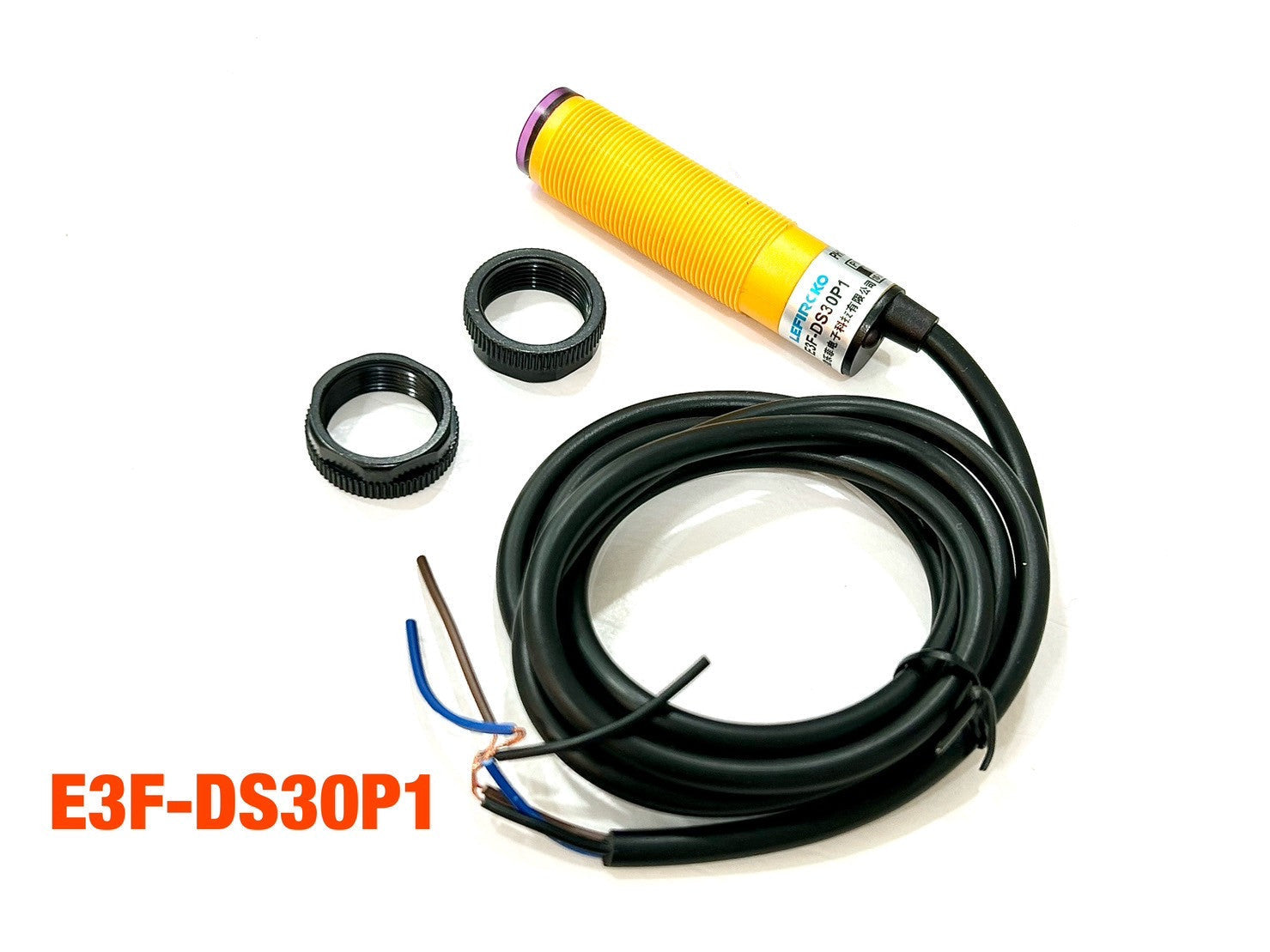

The Photoelectric Switch-E3F-DS30P1 is an industrial sensor that uses infrared light and diffuse reflection to detect objects. This model operates on DC power and provides a PNP Normally Open (NO) output, meaning its circuit is open (no current flows) until an object is detected, upon which it closes (current flows). It's commonly used in automation for reliable, non-contact object presence detection.
Features of the Photoelectric Switch-E3F-DS30P1:
- Diffuse & Non-Contact: Detects objects by reflected infrared light, without physical touch.
- DC Power (PNP NO): Operates on DC 6-36V, with an output that closes when an object is sensed.
- Adjustable & Protected: Offers an adjustable 5-30cm range and built-in protection against reverse polarity, surges, and short-circuits.
- Robust & Visual: Standard M18 cylindrical design (IP67) with a red LED status indicator.
Specification of the Photoelectric Switch-E3F-DS30P1:
- Model: E3F-DS30P1
- Detection: Diffuse Reflection, 5-30cm (adjustable)
- Output: PNP Normally Open (NO), 3-wire, Max 300mA
- Voltage: DC 6-36V
- Response: 1.5ms
- Light Source: 660nm Infrared LED
- Protection: IP67
-
Temp: to
- Housing: ABS/nickel-plated brass, PMMA lens; M18 threaded cylindrical.
Uses:
- Object Sensing: Ideal for presence detection, counting, and positioning on conveyor belts, assembly, and packaging lines.
- Automation & Safety: Provides input for PLCs in material handling and for security or safety interlocks.
Benefits:
- Reliable & Adjustable: Consistent infrared detection with fine-tunable sensitivity across various materials and distances.
- Durable & Protected: Non-contact operation ensures a long lifespan; IP67 rating and built-in protections provide robust performance in harsh industrial settings.
- Easy Integration: Standard design simplifies setup, and the LED indicator aids quick troubleshooting.
Package includes:
- 1x Photoelectric Switch-E3F-DS30P1
