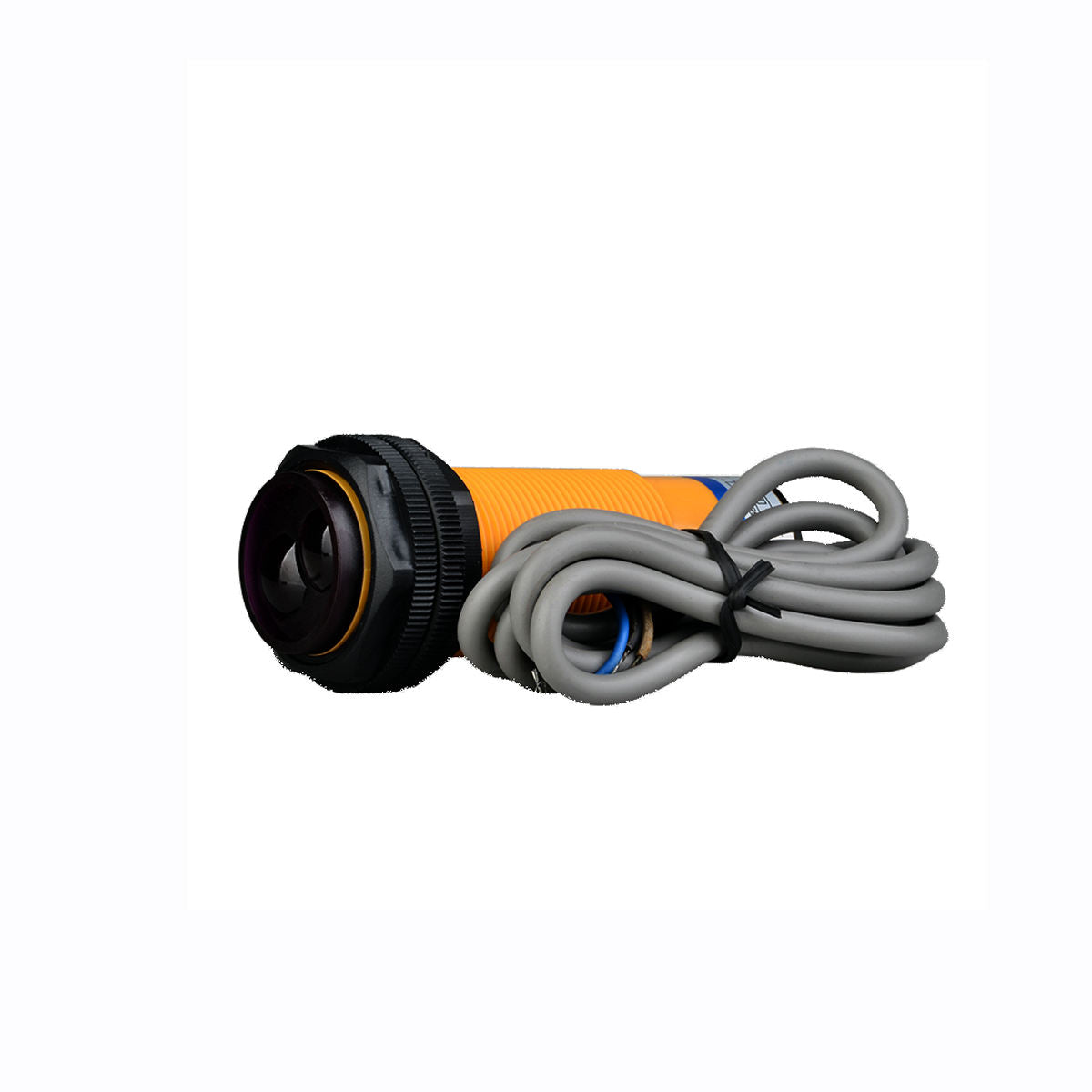

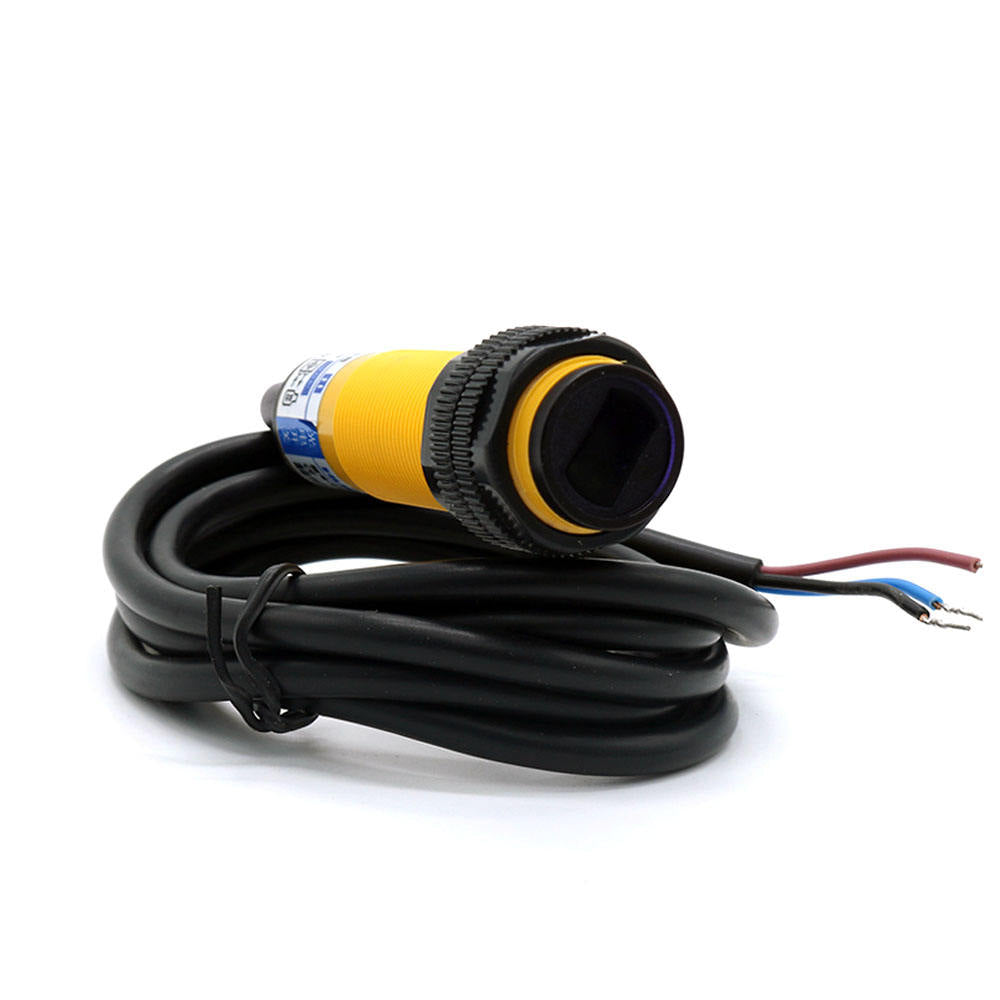

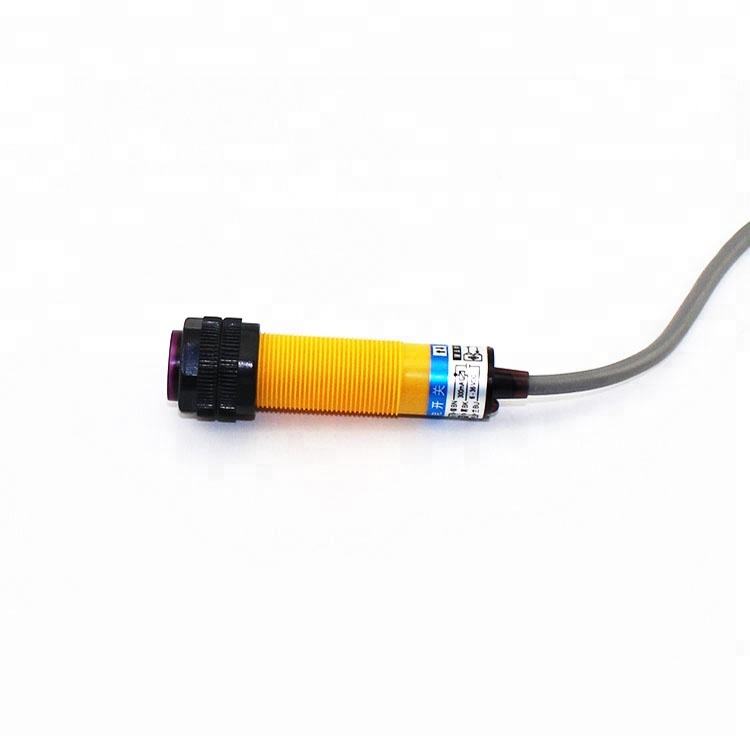

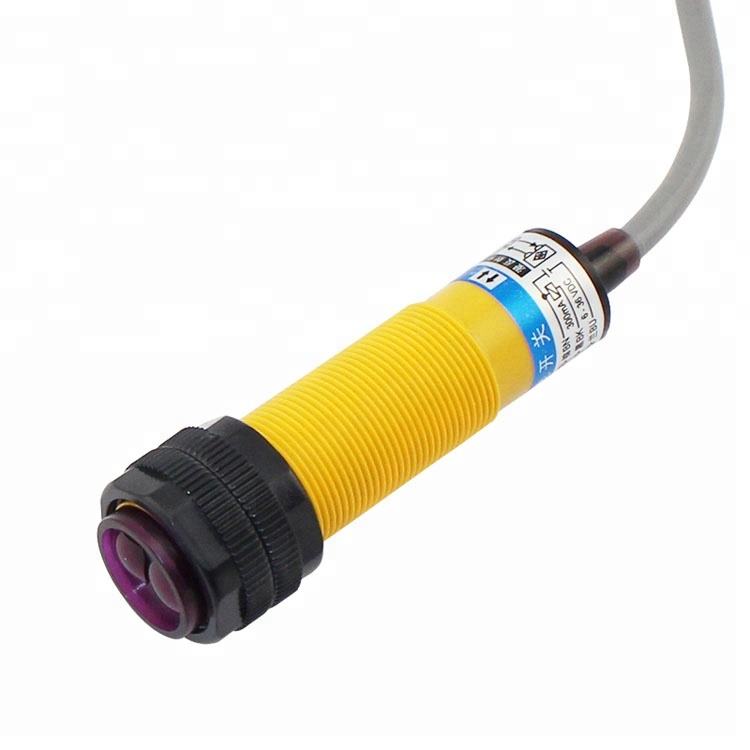

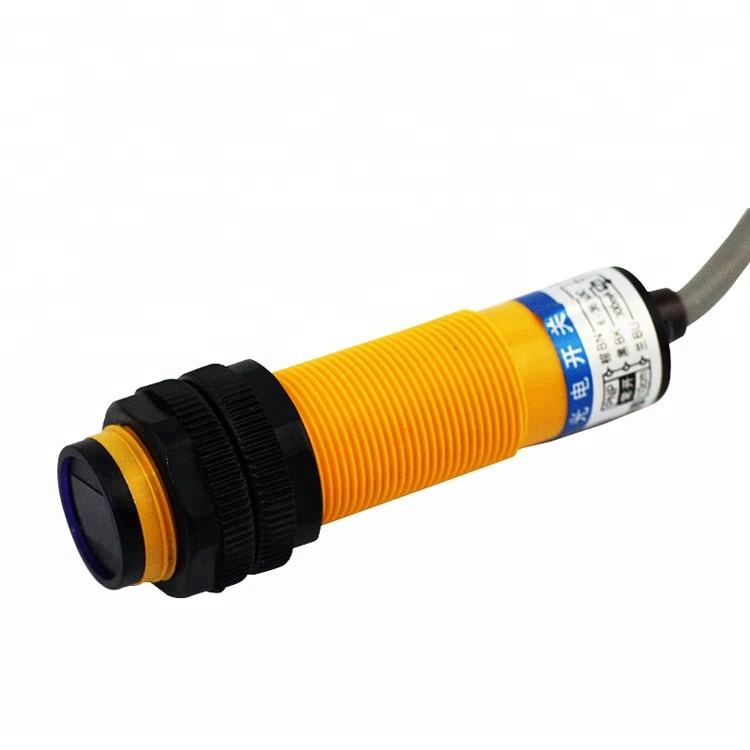

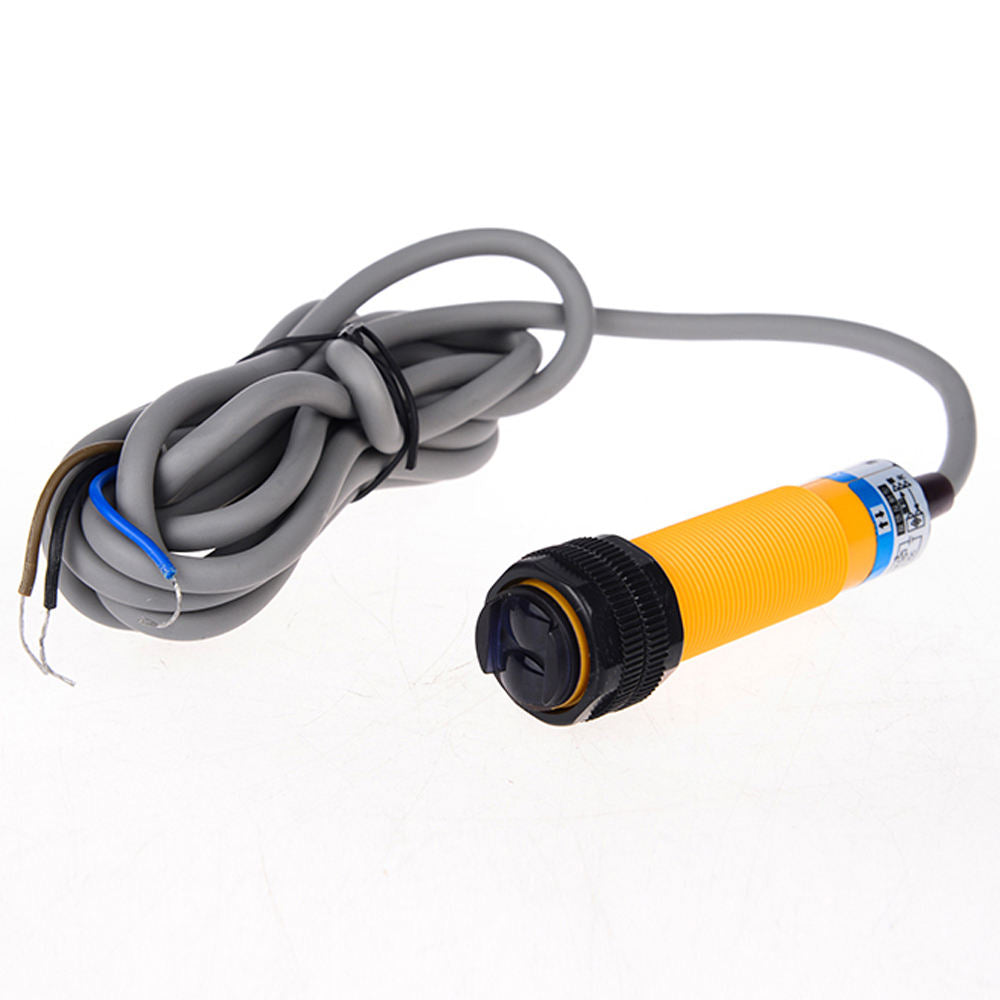

The E3F-DS10C3 is a diffuse reflection photoelectric switch that uses an infrared light beam to detect objects without touching them. What makes this model stand out is its NPN NO+NC output, meaning it provides both a Normally Open and a Normally Closed electrical signal simultaneously, offering greater flexibility for controlling automated systems. It's commonly used in industrial settings for reliable object sensing.
Features of the Photoelectric Switch-E3F-DS10C3:
- Diffuse Reflection (Integrated Tx/Rx): Detects objects by reflecting an infrared light beam (660nm) back to its receiver.
- NPN NO+NC Output: Offers both Normally Open and Normally Closed contacts for versatile control.
- Non-Contact Detection: Senses objects without physical touch, extending sensor and object lifespan.
- Cylindrical Shape (M18): Standard M18 design for easy industrial mounting.
- Protective & Indicative: Includes reverse connection, surge, and short-circuit protection; features a red LED status indicator.
Specification of the Photoelectric Switch-E3F-DS10C3:
- Model: E3F-DS10C3
- Detection Method: Diffuse Reflection
- Detection Distance: 10cm ± 10%
- Output Type: NPN NO+NC (4-wire)
- Working Voltage: DC 10-30V (or 6-36V DC)
- Output Current: Max 200mA (or up to 300mA)
- Appearance: Cylindrical (M18)
- Response Time: 1.5ms (or 1ms)
- Light Source: 660nm Infrared
- Protection Level: IP67
- Operating Temperature: -30°C to +65°C
- Housing: Nickel-plated brass/ABS, PMMA lens
- Cable Length: 1.2m to 1.8m
Uses:
- Object Detection: Confirms presence/absence on production lines, conveyors, and in assembly.
- Counting: Reliably counts passing products.
- Positioning: Aids precise component placement in machinery.
- Security: Simple perimeter or movement detection.
- Automation Control: Triggers actions like motor start/stop or pneumatic cylinder activation based on detection.
Benefits:
- High Versatility: NPN NO+NC output offers maximum circuit integration flexibility.
- Reliable & Accurate: Consistent infrared detection across various materials/conditions.
- Long Lifespan: Non-contact operation reduces wear, extends durability.
- Robust & Protected: IP67 rating and built-in circuits ensure performance in harsh environments.
- Easy Integration: Standard M18 size and clear outputs simplify installation.
Package includes:
- 1x Photoelectric Switch-E3F-DS10C3
