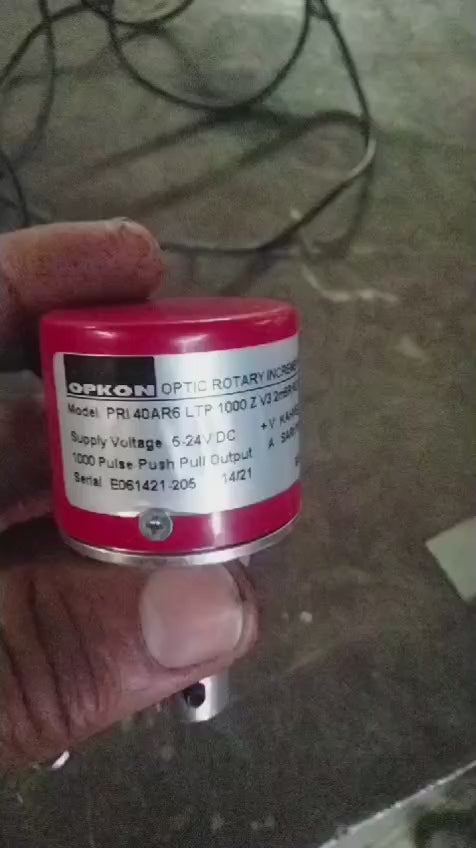

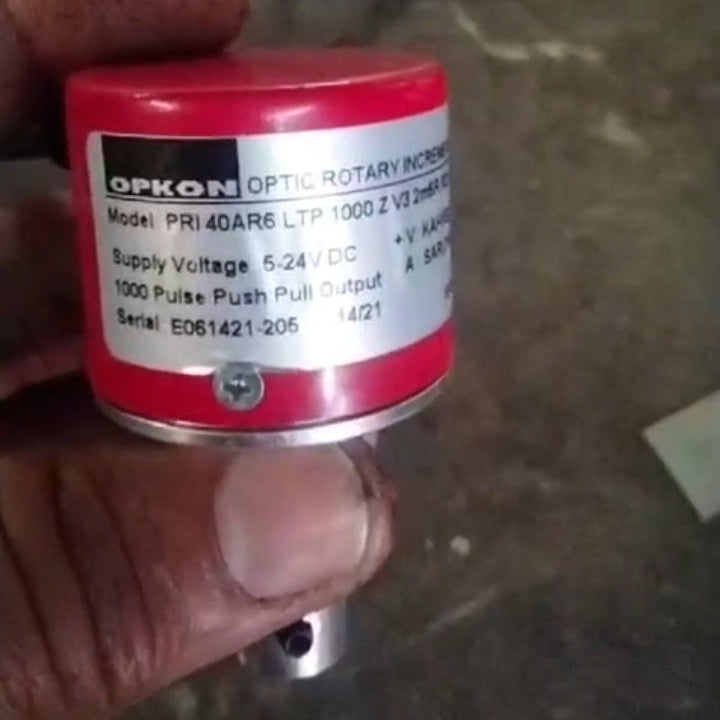

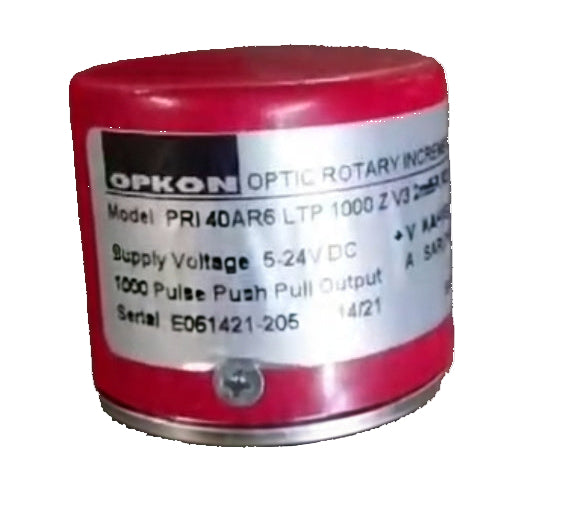

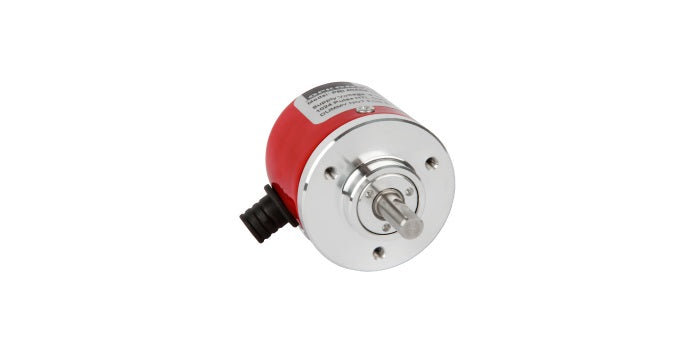

The OPKON PRI 40AR6 LTP 1000Z V3 2m5R RD-RF Optic Rotary Incremental Encoder is a device used in industrial settings to precisely measure the rotational movement of a shaft. It converts this mechanical rotation into electrical pulses using an optical sensor. Specifically, this model has a 40mm body with a 6mm solid shaft, generates 1000 pulses for every full rotation, and provides a "Push-Pull" type electrical output. Powered by a 5-24VDC supply, it helps systems like motors or machinery accurately track position, speed, and direction.
Features of the OPKON Optic Rotary Incremental Encoder:
- High-resolution optical sensing: Provides accurate pulse generation.
- Incremental output: Tracks position, speed, and direction.
- Robust Push-Pull output: Connects to PLCs, includes a Z-channel.
- Solid shaft: For mechanical coupling.
- Durable construction: Built for industrial environments.
- Wide 5-24VDC compatibility: Flexible power supply.
Specification of the OPKON Optic Rotary Incremental Encoder:
- Model: OPKON PRI 40AR6 LTP 1000Z V3 2m5R RD-RF
- Technology: Optic Incremental
- Case Diameter: 40mm
- Shaft Type: Solid Shaft (6mm)
- Pulses Per Revolution (PPR): 1000 (with Z-channel)
- Output Type: Push-Pull (LTP)
- Supply Voltage: 5-24VDC
- Cable Length: 2.5m radial cable
- Max. RPM: 3500
-
Operating Temperature: to
- Protection: IP50
Uses:
- Precise motion feedback: For motors, conveyors, and CNC machinery.
- Accurate positioning: In packaging, robotics, textiles, printing, and lifts/elevators.
Benefits:
- High precision: Achieved through 1000 PPR optical sensing.
- Reliable performance: Due to durable construction.
- Versatile integration: Compatible with various control systems.
- Real-time, direction-sensing feedback: Provides crucial data for dynamic control.
- Enhanced automation: Improves accuracy, efficiency, and safety.
-
Cost-effective solution: For relative position tracking.
Package includes:
- 1x OPKON Optic Rotary Incremental Encoder
