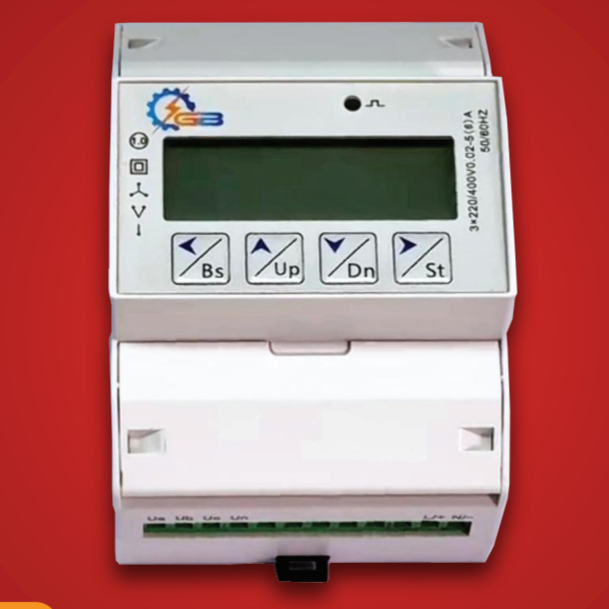

The GB180G-CT is a three-phase DIN rail power meter designed for precise measurement and analysis of electrical parameters in various power systems. Unlike direct connection meters, the "-CT" in its name signifies that it operates via Current Transformers, allowing it to accurately measure higher currents in industrial and commercial settings. This meter provides real-time data on voltage, current, active and reactive power, power factor, and frequency, displayed on an LCD screen. It supports RS485 communication with Modbus-RTU protocol for remote monitoring and data management, making it a versatile tool for energy efficiency, load balancing, and billing applications.
Features of the GB180G-CT Three-Phase Din Rail Power Meter:
- Multi-function parameter measurement
- Support bi-directional power metering
- Support direct access type, CT variable ratio access
- Support 1-channel pulse optocoupler output interface, can set the output parameters
- Support RS485 communication function, support Modbus RTU protocol
- Standard 4-mode digital width, TH35-7.5 type DIN rail mounting
- Large LCD display, white backlight, backlight lighting time adjustable
- LCD display refresh time: 1 second, supports manual page turning and automatic
rotation display (can be set to switch)
Specification of the GB180G-CT Three-Phase DIN Rail Power Meter:
- Model: GB180G-CT
- Input Voltage: 3×220/380V AC
- Current Input: Via external CT (e.g., 5A/1A secondary)
- Accuracy Class: Class 1.0 (Energy Measurement)
- Display Type: LCD
- Communication Interface: RS485
- Protocol: Modbus RTU
- Frequency: 50/60Hz
- Mounting: DIN rail (35mm standard rail)
- Working Temperature: -25°C to +55°C
- Power Consumption: <2W
- Dimensions: Standard modular size (typically 6 to 8 modules wide)
Uses:
- Industrial and commercial energy monitoring
- Electrical sub-metering in buildings and facilities
- Renewable energy systems (solar, wind) energy tracking
- Factory or plant load analysis and energy audits
- Integration with SCADA, BMS, or EMS for real-time data collection
Benefits:
- Enables accurate energy monitoring and billing
- Reduces energy wastage through real-time analysis
- Supports integration into automation systems via Modbus RTU
- Facilitates efficient energy management and reporting
- Flexible installation with DIN rail design and CT input
- Ideal for retrofit or new energy monitoring setups
Package includes:
- 1x GB180G-CT Three-Phase Din Rail Power Meter
