The GA & DA G2040PV/1000-2P Surge Protective Device (SPD) is a high-quality and reliable device that is designed to protect photovoltaic (PV) systems from the damaging effects of surges. It features a compact and durable design, making it easy to install and maintain. The SPD also has a high surge current rating and a low let-through voltage, making it effective in protecting PV systems from even the most severe surges.
Features of GA & DA G2040PV/1000-2P (SPD):
- Compact and durable design
- High surge current rating (40kA)
- Low let-through voltage (<1.5kV)
- Suitable for use in PV systems with a voltage of up to 1000V DC
- Meets IEC 61643-11 standards
Specification of GA & DA G2040PV/1000-2P Surge Protective Device:
- Voltage rating: 1000V DC
- Surge current rating: 40kA (8/20μs)
- Let-through voltage: <1.5kV
- Connection type: screw terminals
- Dimensions: 100 x 50 x 35mm
- Weight: 200g
Dimensions:
- Length: 100mm
- Width: 50mm
- Height: 35mm
Uses:
- Photovoltaic (PV) systems
- Solar panels
- Solar inverters
- Solar charge controllers
- Any other application where protection from surges is required
Industryparts.pk is the Online Shopping website for GA & DA G2040PV/1000-2P Surge Protective Devices. Here you get GA & DA G2040PV/1000-2P Surge Protective Device at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
Package includes:
- GA & DA G2040PV/1000-2P Surge Protective Device (SPD)
| Size |

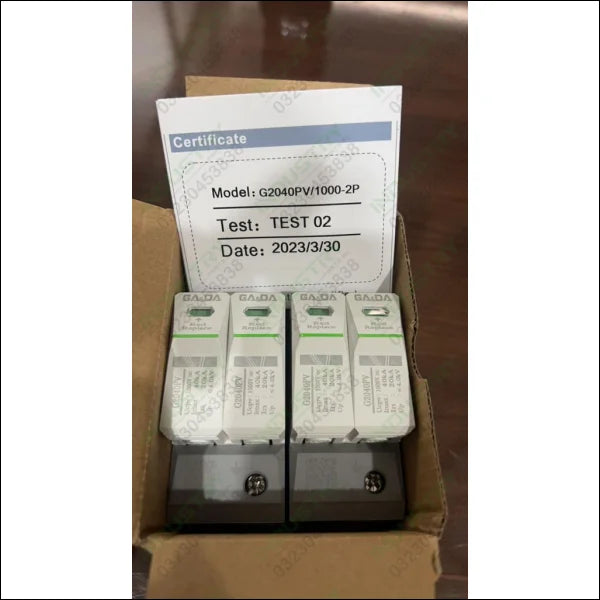

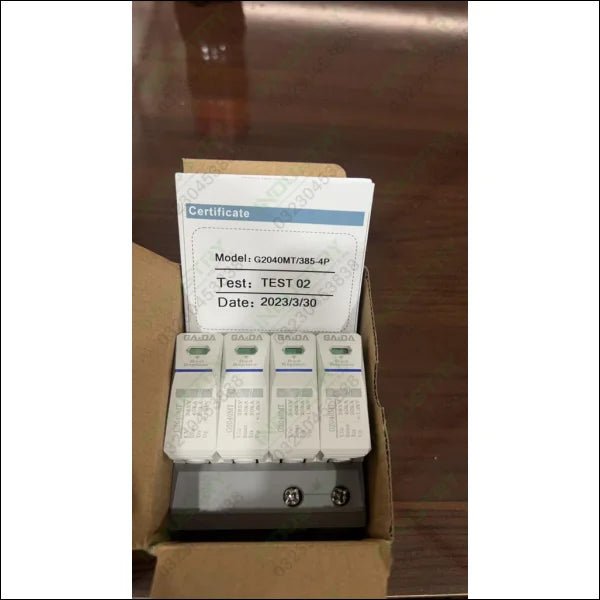

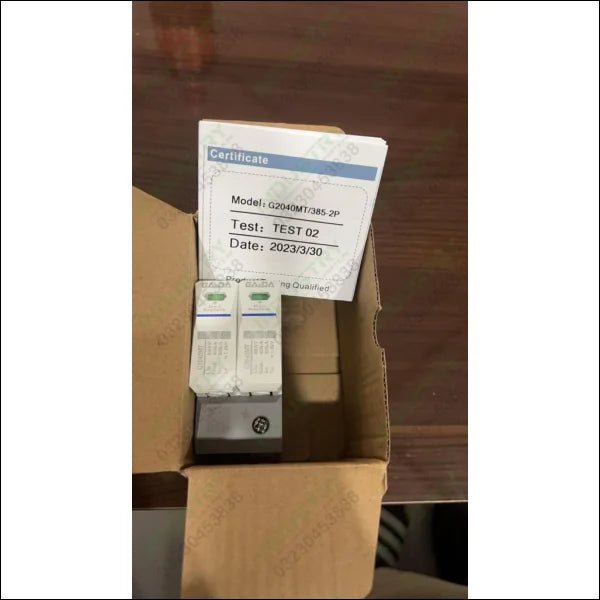

2P DC SPD, 2P AC SPD, 4P AC SPD 40K |
|---|
