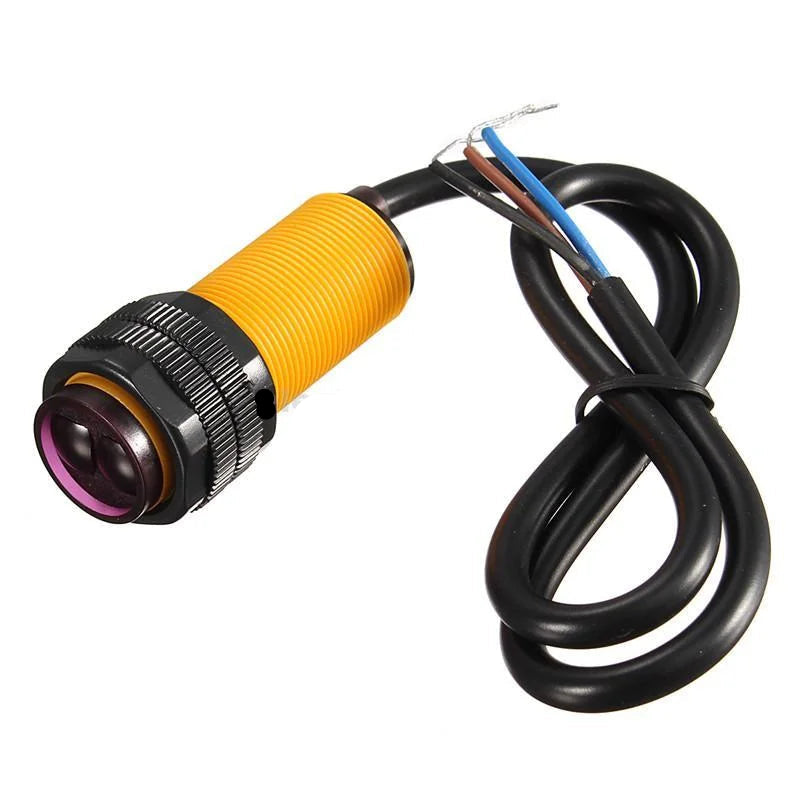

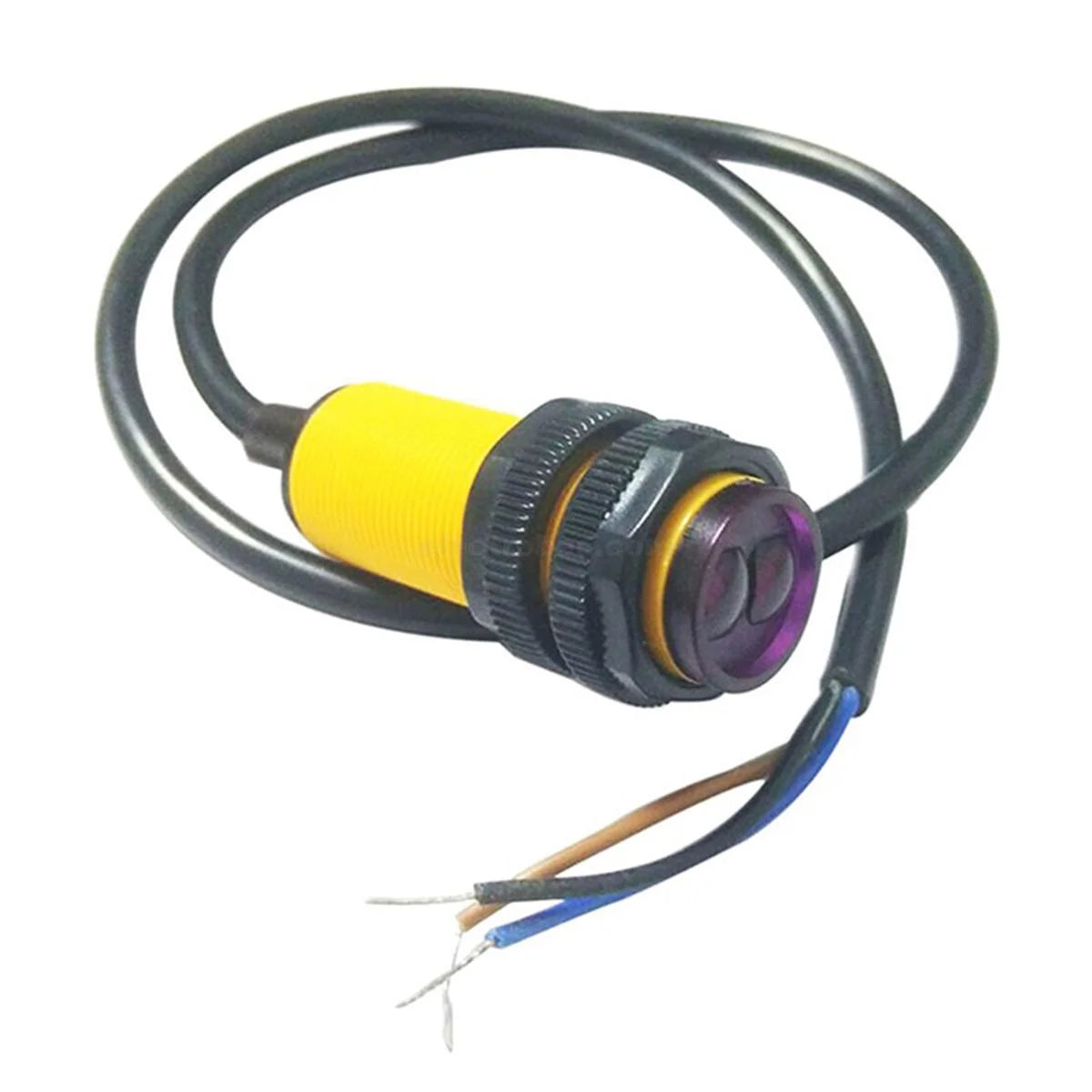

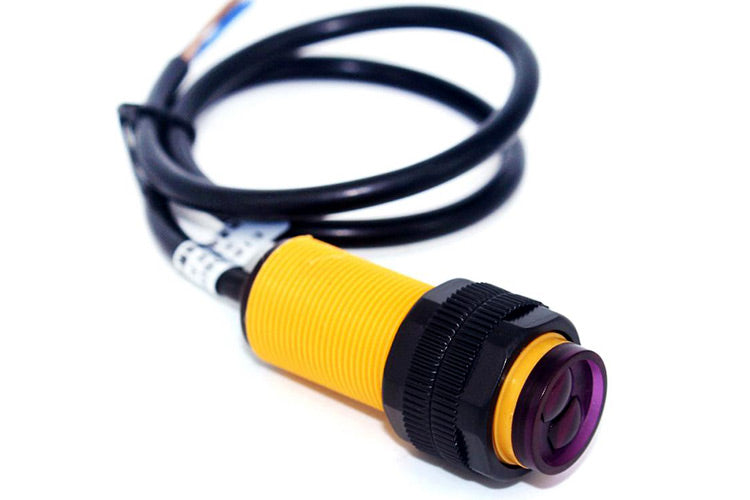

The E18-D80NK IR Obstacle Avoidance Proximity Sensor is a reliable infrared sensor designed to detect nearby objects without physical contact. It operates by emitting infrared light and sensing any reflection caused by an obstacle within its range, making it ideal for use in automation systems, robotics, security setups, and industrial applications. With adjustable sensing distance and fast response time, the E18-D80NK helps detect objects up to 80 cm away with stable performance. It's easy to install and widely used in smart systems for automatic detection and obstacle avoidance.
Features of the E18-D80NK IR Obstacle Avoidance Proximity Sensor:
- Infrared-based obstacle detection without physical contact
- Adjustable detection range from 3 cm to 80 cm using a tuning screw
- Uses modulated IR light to minimize interference from sunlight and ambient light

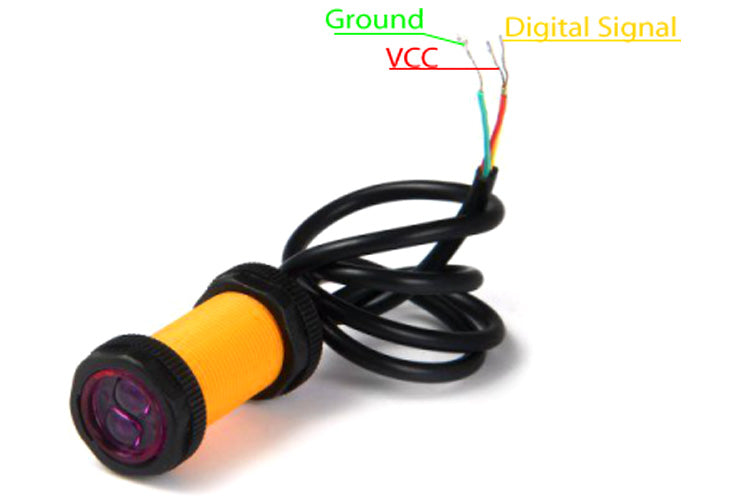

- Digital output: normally high, goes low when an object is detected
- Built-in indicator LED for detection feedback
- Compact design with NPN output
Specifications of the E18-D80NK IR Obstacle Avoidance Proximity Sensor:
- Operating Voltage: 5 V DC
- Current Consumption: typically 5–25 mA, with peaks around 300 mA
- Detection Range: Adjustable from 3 cm to 80 cm
- Output Type: Digital NPN (Normally High)
- Sensor Type: Diffuse-reflective infrared
- Dimensions: Approximately 1.7 cm × 4.5 cm
- Cable Length: Around 0.45 m
- Operating Temperature: –25 °C to +55 °C
Uses:
- Obstacle detection for robots and autonomous vehicles
- Object detection in automation systems and conveyors
- Parking and reverse assistance for vehicles
- DIY electronics and Arduino-based projects
- Industrial presence detection
Benefits:
- Affordable and space-saving design
- Adjustable range allows flexible use in various scenarios
- Works reliably even in bright environments
- Quick response time suitable for real-time applications
- Low power consumption makes it ideal for battery-powered devices
- Easy to integrate with microcontrollers and other digital systems
Package includes:
- 1x E18-D80NK IR Obstacle Avoidance Proximity Sensor
Industryparts.pk is the Best Online Shopping website for E18-D80NK IR Obstacle Avoidance Proximity Sensor. Here you get E18-D80NK IR Obstacle Avoidance Proximity Sensor at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
