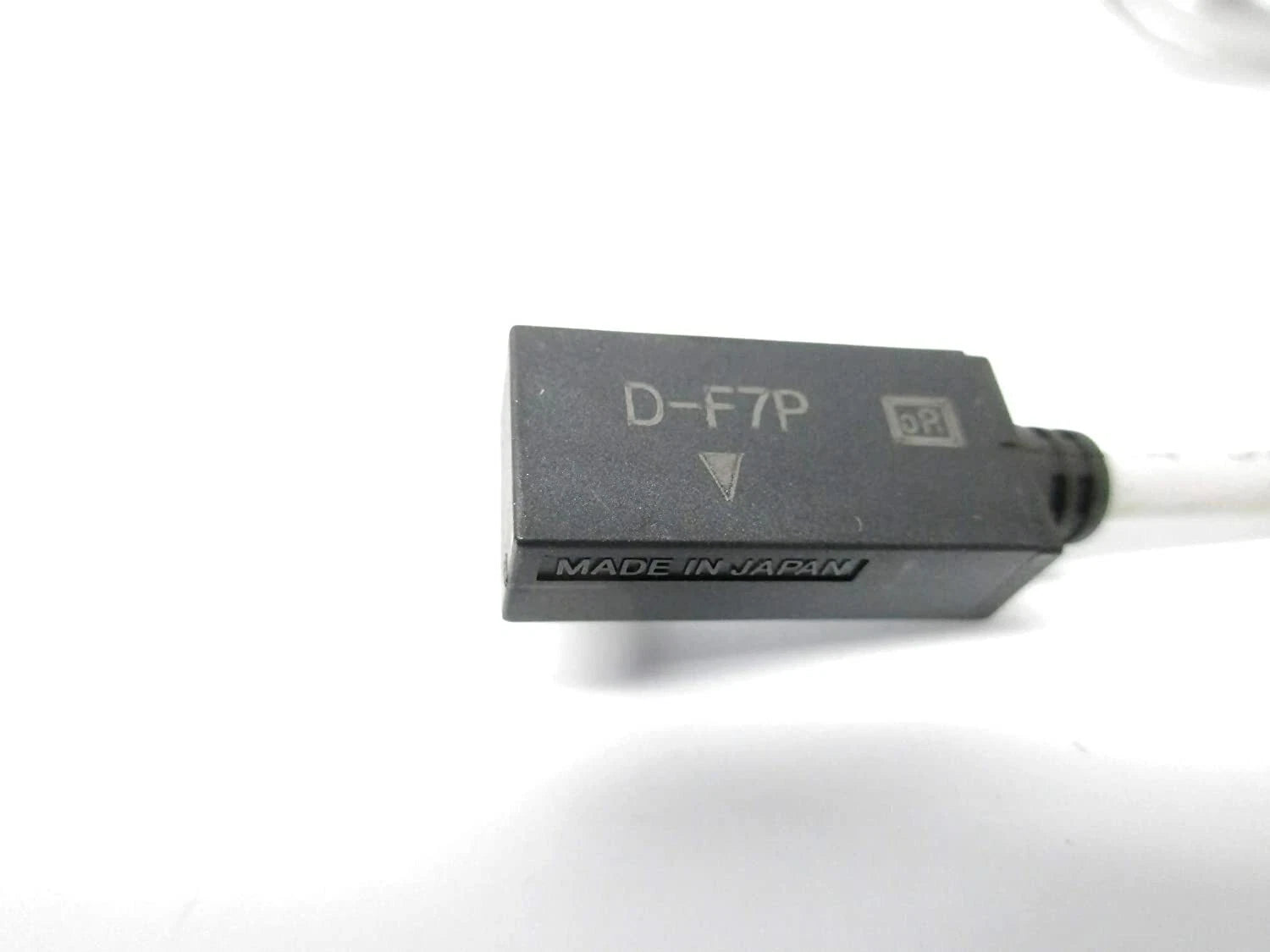

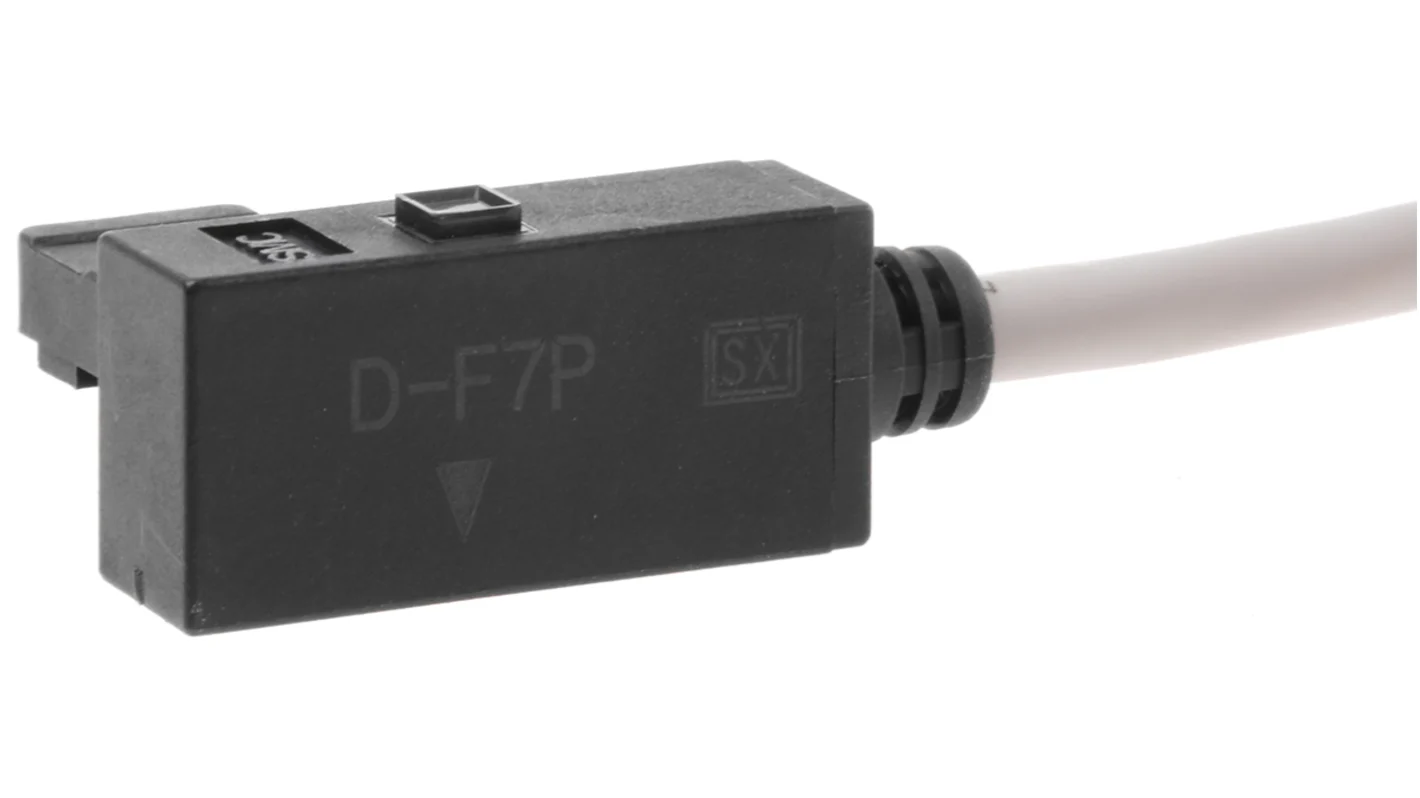

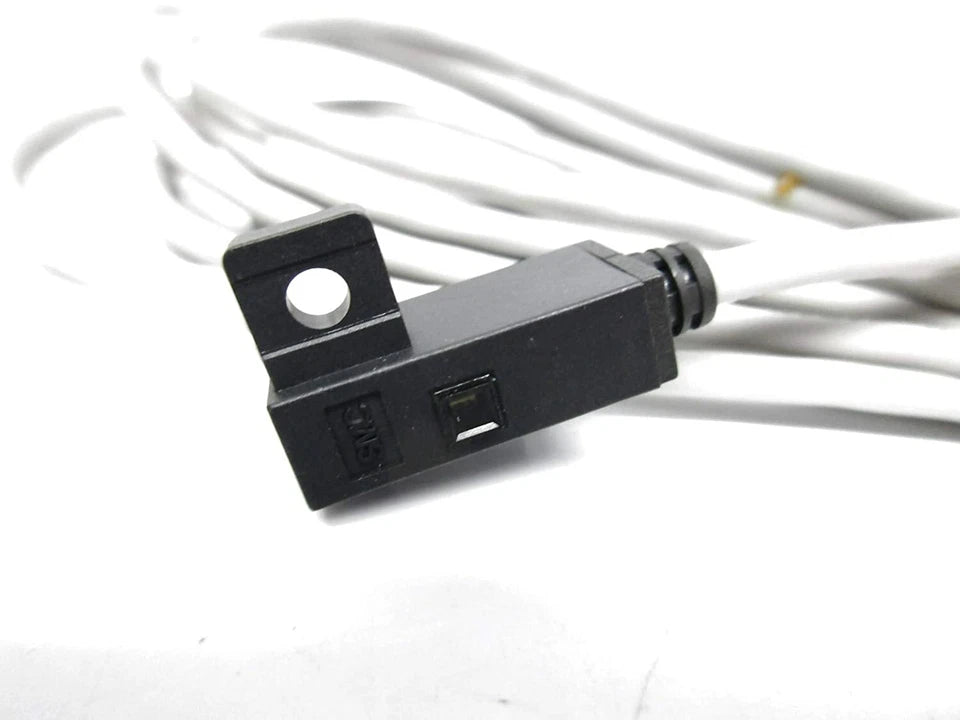

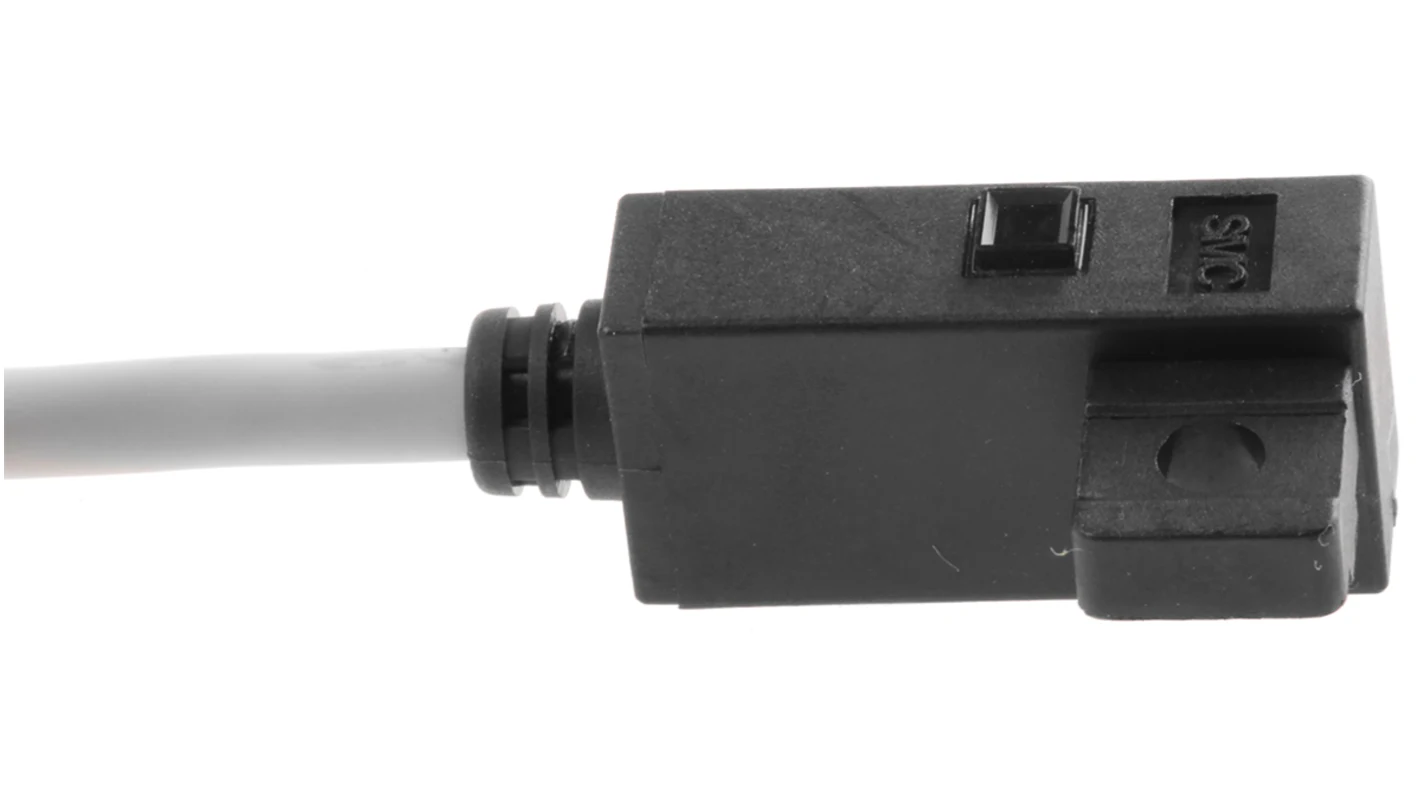

The D-F7P Auto-Switch is a compact and easy-to-use sensor switch designed for use with pneumatic cylinders. It automatically detects the position of the piston inside the cylinder and sends a signal when it reaches a certain point. This helps machines run more smoothly and safely by knowing exactly when to start or stop moving parts. The D-F7P is easy to install with a simple slide-in mounting and works well in many types of machines. It is durable, reliable, and great for automation systems that need accurate position sensing.
Features of D-F7P AUTO-SWITCH:
- Compact and slim design
- Easy slide-in installation
- LED indicator for operation status
- Strong magnetic sensing performance
- Pre-wired for quick connection
Specifications of D-F7P AUTO-SWITCH:
- Type: Auto-switch for pneumatic cylinders
- Mounting: Direct mounting on cylinder groove
- Output: Reed switch, normally open
- Power supply: 24V DC
- Cable length: 3 meters (standard)
- LED indicator: Yes
- Operating temperature: -10°C to 60°C
Uses:
- Detecting piston position in pneumatic cylinders
- Used in factory automation systems
- Ideal for packaging, assembly, and sorting machines
- Suitable for compact machinery with limited space
Benefits:
- Improves machine control accuracy
- Reduces installation time and effort
- Helps prevent mechanical damage by sensing positions correctly
- Durable design ensures long service life
- Increases safety in automated operations
Package includes:
- 1x D-F7P AUTO-SWITCH
