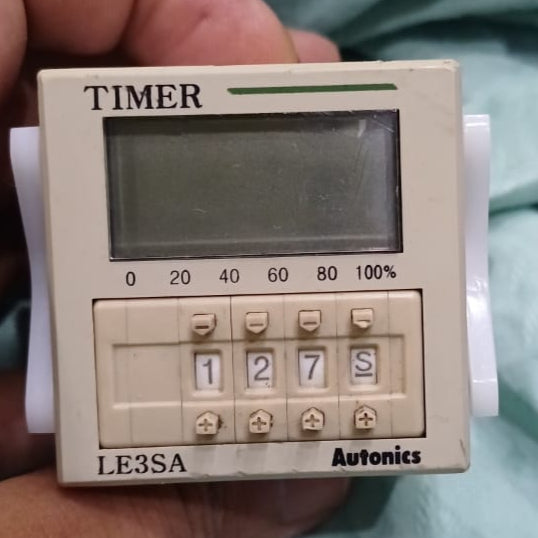

The Autonics LE3SA Timer is a compact digital timer designed for industrial automation, offering precise time control for various applications. It's known for its wide power supply range, easy-to-use thumbwheel switches for settings, and a clear LCD display that shows time progression.
Features of the Autonics LE3SA TIMER:
- Wide Power Supply: Operates on a universal power supply of 24-240VAC (50/60Hz) and 24-240VDC, offering flexibility in different electrical environments.
- Easy Mode Switching: Features a simple switch for changing between Up/Down counting modes.
- Selectable Functions: Functions can be easily selected using front digital switches.
- Graphic Output Contact Status Display: Visually indicates the status of output contacts (Normally Open/Normally Closed).
- BAR Graph Display: Shows time progression in 5% increments, providing a quick visual reference of the timing cycle.
- Compact Size: With DIN W48×H48mm dimensions, it's designed to save space in control panels.
- Thumbwheel Switch Setting: Allows for simple and precise setting of time values.
Specification of the Autonics LE3SA TIMER:
- Model: LE3SA
- Display Method: 3-digit 7-segment LCD
- Power Supply: 24-240VAC 50/60Hz, 24-240VDC (Universal)
- Allowable Voltage Range: 90 to 110% of rated voltage
- Power Consumption: Max. 3.3VA (AC), Max. 1.5W (DC)
- Time Range: Multi-range, from 0.01 seconds to 9990 hours (e.g., 0.01s-9.99s, 0.1s-99.9s, 1s-999s, 0.1min-99.9min, 1min-999min, 0.1h-99.9h, 1h-999h, 10h-9990h, 0m01s-9m59s, 0h01m-9h59m)
- Operation Mode: Power ON Delay mode (fixed for LE3SA, LE3S has 10 programmable modes)
- Control Output: Time limit DPDT (2c) contact type
- Contact Capacity: 250VAC 3A resistive load
- Repeat Error: Max. ±0.01% ±0.05sec.
- Return Time: Max. 100ms
- Unit Weight: Approx. 105g
Uses:
- Industrial Automation: Used in manufacturing lines to control the timing of processes, such as conveyor belt operations, batch mixing, or machine cycles.
- Process Control: Regulates the duration of specific steps in chemical processes, heating/cooling cycles, or fluid dispensing.
- Building Management Systems: Controls lighting, ventilation, or security systems based on predetermined schedules.
- Packaging Machinery: Ensures precise timing for sealing, filling, or labeling operations.
- Motor Control: Manages the start-up or shutdown sequences of motors and pumps.
Benefits:
- High Precision: Offers accurate timing control crucial for consistent and reliable automated processes.
- Versatile Application: Its multi-range timing capabilities and wide power supply make it adaptable to diverse industrial and commercial settings.
- User-Friendly Interface: Thumbwheel switches and clear LCD display simplify setup and monitoring, reducing potential errors.
- Space-Saving Design: Its compact DIN W48×H48mm size allows for efficient panel mounting, optimizing space in control cabinets.
- Reliable Operation: Designed for industrial environments with good resistance to noise, vibration, and shock, ensuring stable performance.
- Clear Status Indication: The graphic output contact status and BAR graph display provide immediate visual feedback on the timer's operation.
Package includes:
- 1x Autonics LE3SA TIMER
