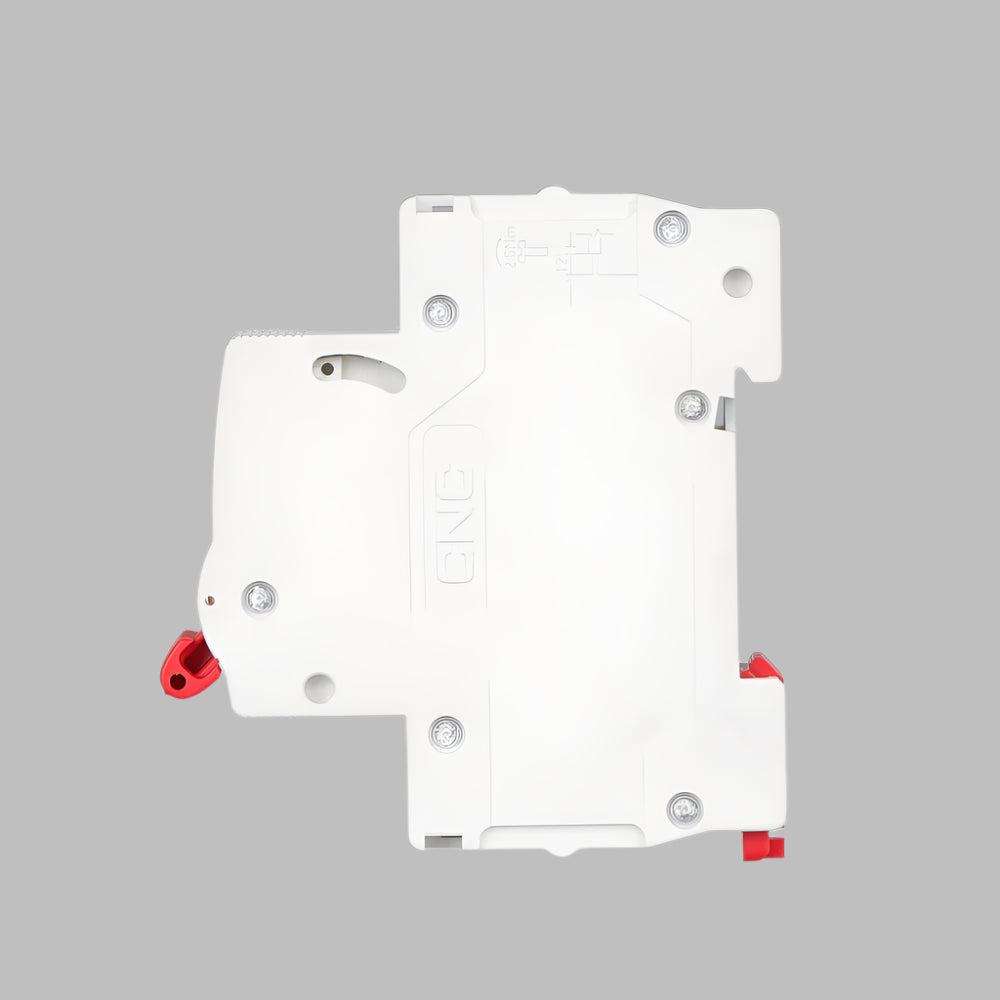

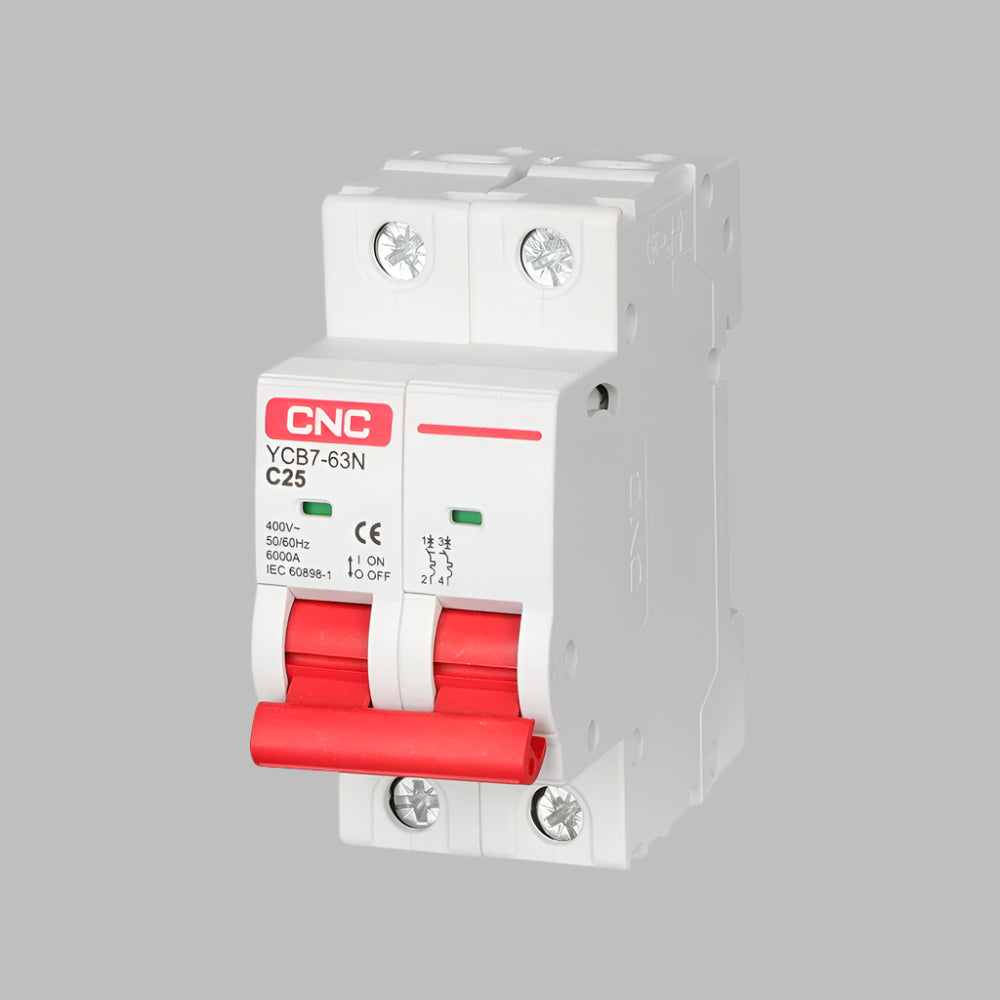

The YCB7-63N AC series miniature circuit breaker is suitable for overcurrent protection of building line facilities and similar purposes in AC 50/60Hz, rated voltage 230V/400V, rated current up to 63A circuits. They have isolation, overload, and short circuit protection functions, and can also be used for infrequent operation and switching of lines under normal circumstances. Circuit breakers are suitable for various places such as industry, commerce, high-rise buildings, and residential buildings.
Features of CNC YCB7-63N 2-Pole AC Miniature Circuit Breaker:
- Dual-Pole Protection: Simultaneously disconnects both live and neutral wires, enhancing safety.
- Overload and Short-Circuit Protection: Safeguards electrical circuits from damage due to excessive current.
- Thermal Magnetic Trip Mechanism: Combines thermal and magnetic tripping for precise fault detection.
- Multiple Tripping Curves: Available in B, C, and D curves to suit various applications.
- High Breaking Capacity: Rated at 6kA, ensuring reliable interruption of fault currents.
- Compact Design: Space-saving structure suitable for modern electrical panels.
- DIN Rail Mounting: Easy installation on standard 35mm DIN rails.
- Durable Construction: Mechanical life of up to 20,000 operations and electrical life of 10,000 operations.
- IP20 Protection Rating: Provides basic protection against solid objects.
- Compliance: Meets IEC/EN 60898-1 standards for circuit breakers.
Specifications of CNC YCB7-63N 2-Pole AC Miniature Circuit Breaker:
- Model: YCB7-63N
- Number of Poles: 2P
- Rated Voltage (Ue): 230/400V AC
- Rated Current (In): 10A to 63A
- Rated Frequency: 50/60Hz
- Rated Breaking Capacity (Icn): 6000A (6kA)
- Rated Insulation Voltage (Ui): 500V
- Impulse Withstand Voltage (Uimp): 4kV
- Tripping Characteristics: B, C, D curves
- Trip Type: Thermal magnetic release
- Mechanical Life: 20,000 operations
- Electrical Life: 10,000 operations
- Protection Degree: IP20
- Ambient Temperature: -5°C to +40°C
- Installation: 35mm DIN rail (EN 60715)
- Terminal Capacity: Up to 25mm² cables
Uses:
- Residential Buildings: Protects household circuits from overloads and short circuits.
- Commercial Establishments: Ensures safe operation of electrical systems in offices and shops.
- Industrial Facilities: Safeguards machinery and equipment from electrical faults.
- High-Rise Buildings: Provides reliable circuit protection in multi-story structures.
- Infrastructure Projects: Used in various infrastructure applications requiring dependable circuit protection.
Benefits:
- Enhanced Safety: Quickly disconnects faulty circuits, reducing the risk of electrical fires.
- Versatile Application: Suitable for a wide range of environments and electrical systems.
- Long Service Life: Durable design ensures prolonged operational reliability.
- Easy Installation: DIN rail compatibility simplifies mounting and maintenance.
- Compliance Assurance: Adheres to international standards, ensuring quality and safety.
Package includes:
- 1x CNC YCB7-63N 2-Pole AC Miniature Circuit Breaker
