The CHINT NP2 Series Push Buttons are a range of industrial control components designed for various applications, offering configurations like normally open (NO) and normally closed (NC) contacts. Most models have a standard 22mm mounting size, are color-coded (Green, Red), and some include illumination for better visibility. A mushroom head option is available for emergency stops. These durable buttons are built for industrial use, feature a modular design for combining contact blocks, and ensure reliable electrical contacting
Features of CHINT NP2 Series Push Button:
- Variety of Configurations: Offers a range of contact configurations (NO, NC).
- Standard Mounting Size: 22mm mounting diameter (most models).
- Color-Coded: Different colors (Green, Red) for easy identification and function differentiation.
- Illuminated Options: Some models offer illumination for better visibility.
- Mushroom Head Option: Provides a larger surface area for easier operation, especially in emergency situations.
- Durable Construction: Designed for industrial use.
- Modular Design: Contact blocks can be combined.
- Reliable Contacting: Designed for consistent electrical contact.
Specifications of CHINT NP2 Series Push Button:
- Series: CHINT NP2
- Mounting Hole Diameter: 22mm (standard), 40mm (NP2-BS542)
- Contact Types:
- NO (Normally Open)
- NC (Normally Closed)
- Colors: Green, Red
- Illumination: Available in some models (LED)
- Standards Compliance: IEC/EN 60947-5-1 (or equivalent)
- Rated Insulation Voltage (Ui): 690V
- Conventional Thermal Current (Ith): 10A
- Electrical Life: AC 5 x 10^5 operation cycles, DC 2 x 10^5 operation cycles
- Mechanical Life: 1 million operation cycles.
- Wiring: Screw-type terminals.
Model:
- NP2-BA31: Green, 22mm, 1NO (Non-Illuminated)
- NP2-BA41: Red, 22mm, 1NC (Non-Illuminated)

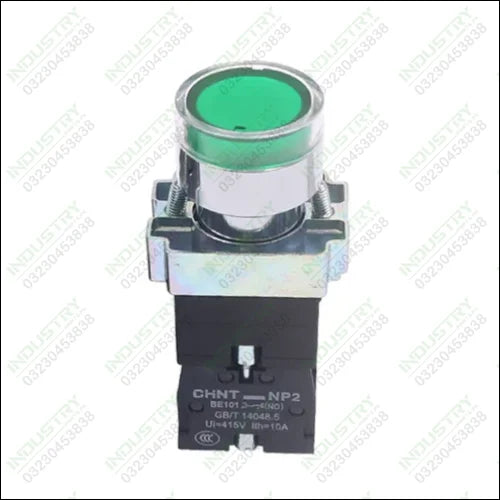

- NP2-BW3361: Green, 22mm, 1NO (Illuminated)

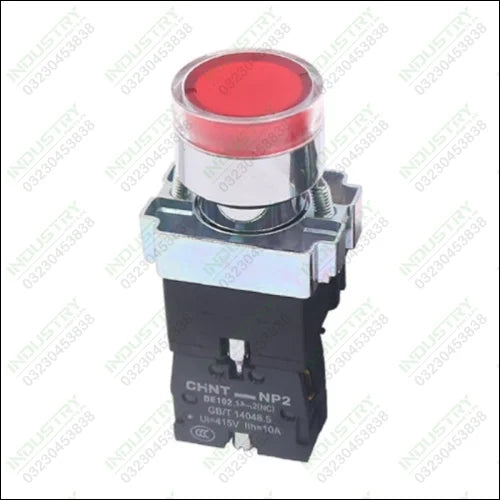

- NP2-BW3462: Red, 22mm, 1NC (Illuminated)
- NP2-BS542:

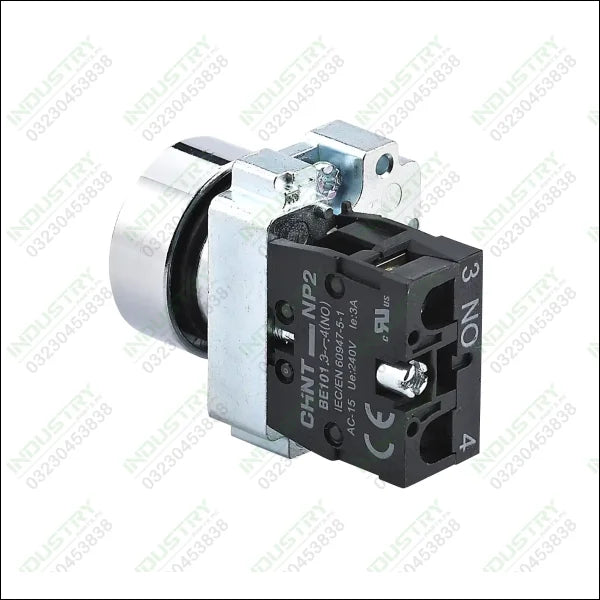

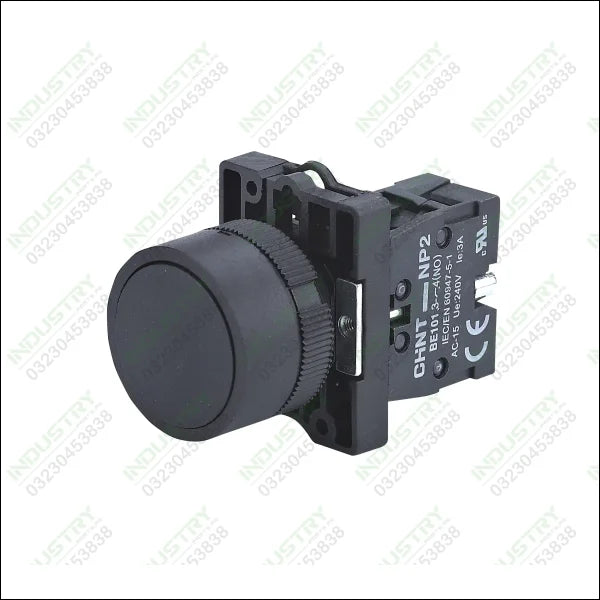

- NP2-BE101: Contact block, 1NO

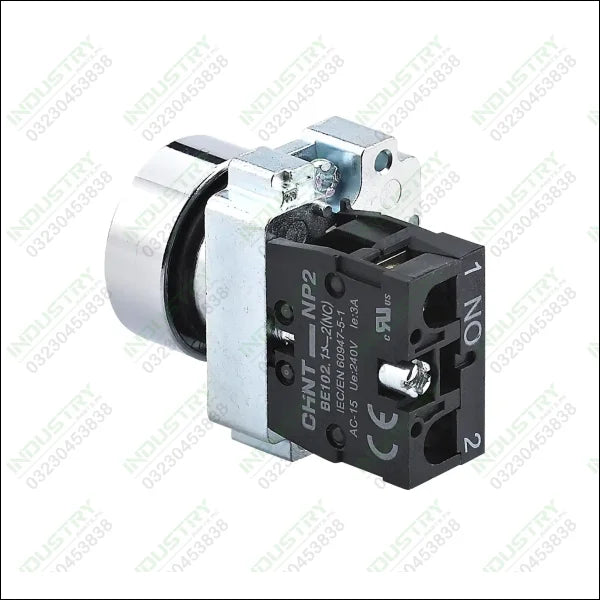

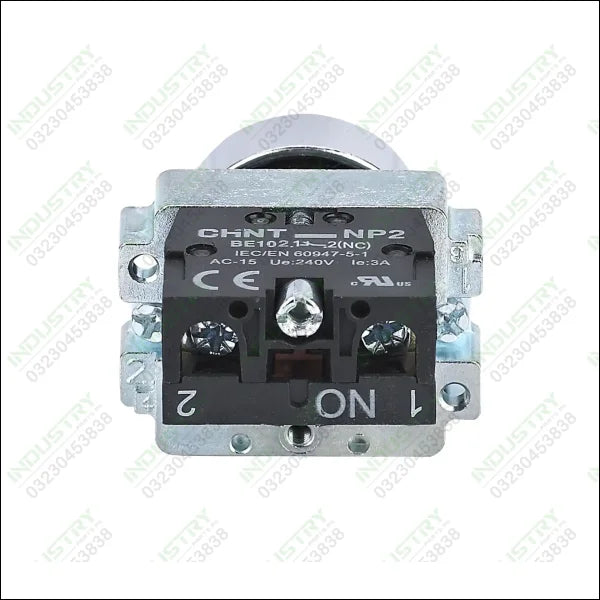

- NP2-BE102: Contact block, 1NO
Uses:
- Industrial Control Panels: Starting/stopping machinery, signaling.
- Operator Interfaces: Machine control, system monitoring.
- Emergency Stops: Providing a large, easy-to-operate button for safety.
- Pilot Devices: In control circuits to activate other components.
- General Circuit Control: Switching electrical circuits.
Benefits:
- Reliable Control: Provides dependable switching functionality.
- Easy Identification: Color-coded buttons prevent errors.
- Clear Indication: Illuminated versions provide visual status.
- Increased Safety: Mushroom head buttons for emergency stops.
- Versatile Application: Suitable for a wide range of industrial uses.
- Easy Installation: Standard mounting simplifies panel assembly.
- Durable Design: Withstands harsh industrial environments.
Package includes:
- 1x CHINT ND9-22D/4 or ND16-22D/4 Indication Lights
