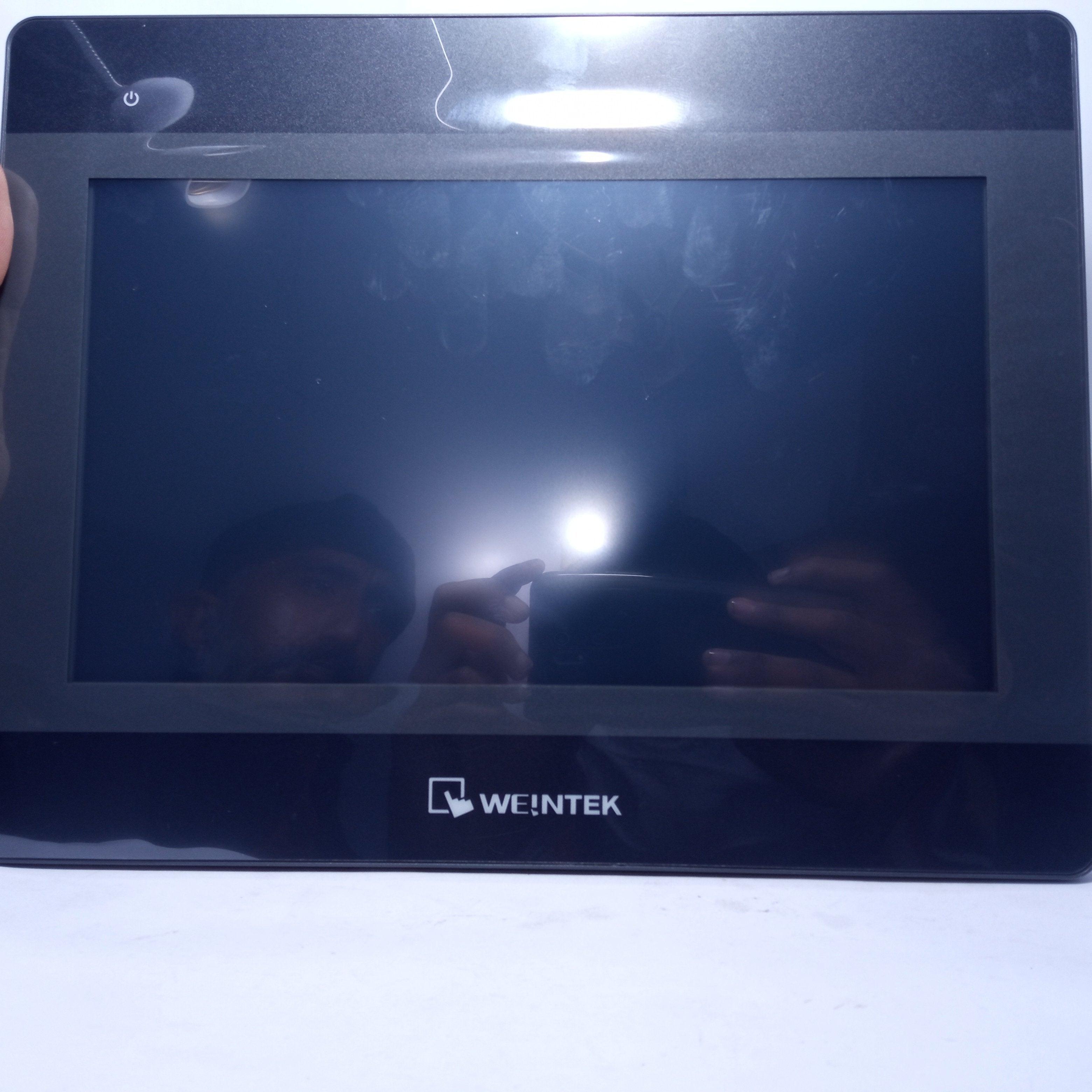

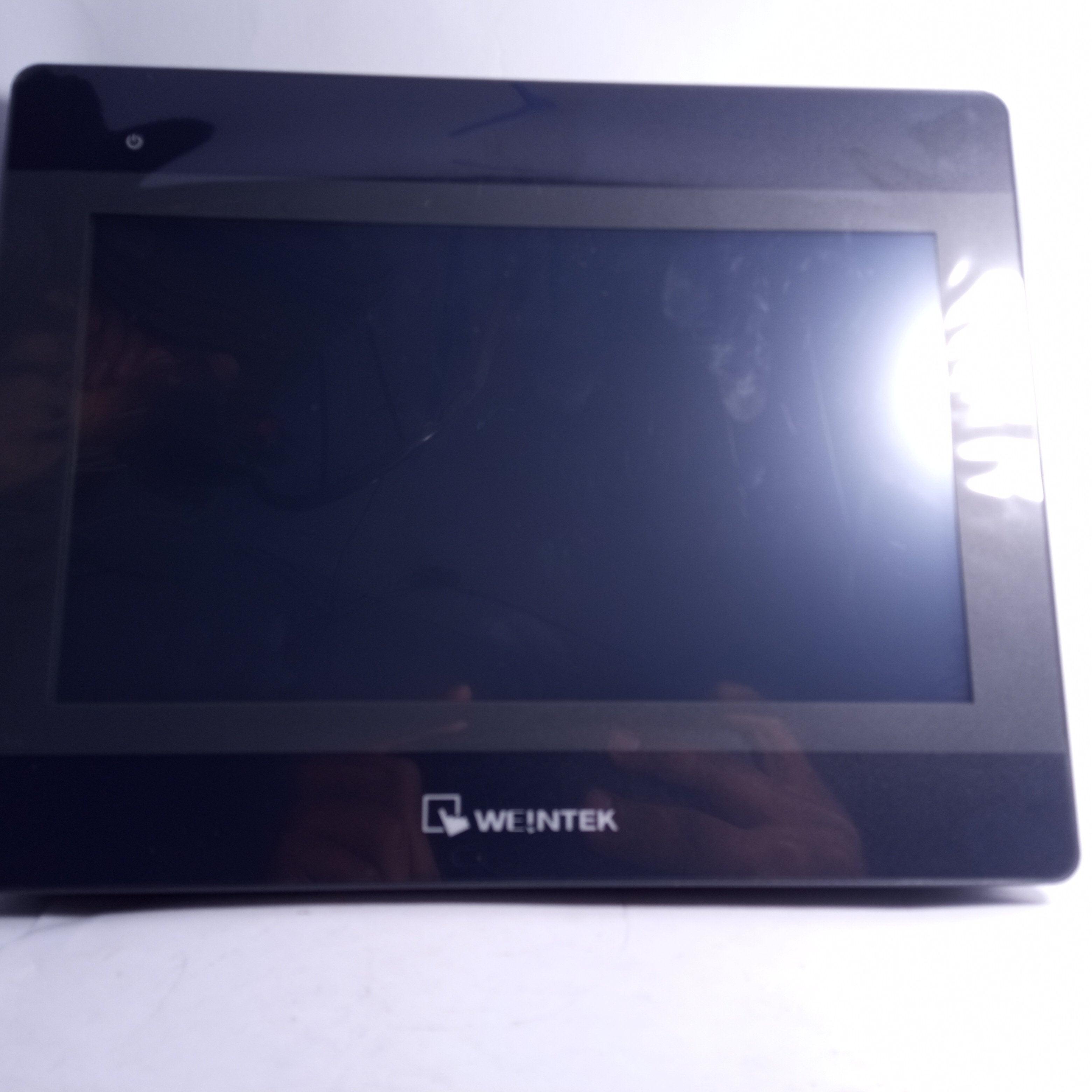

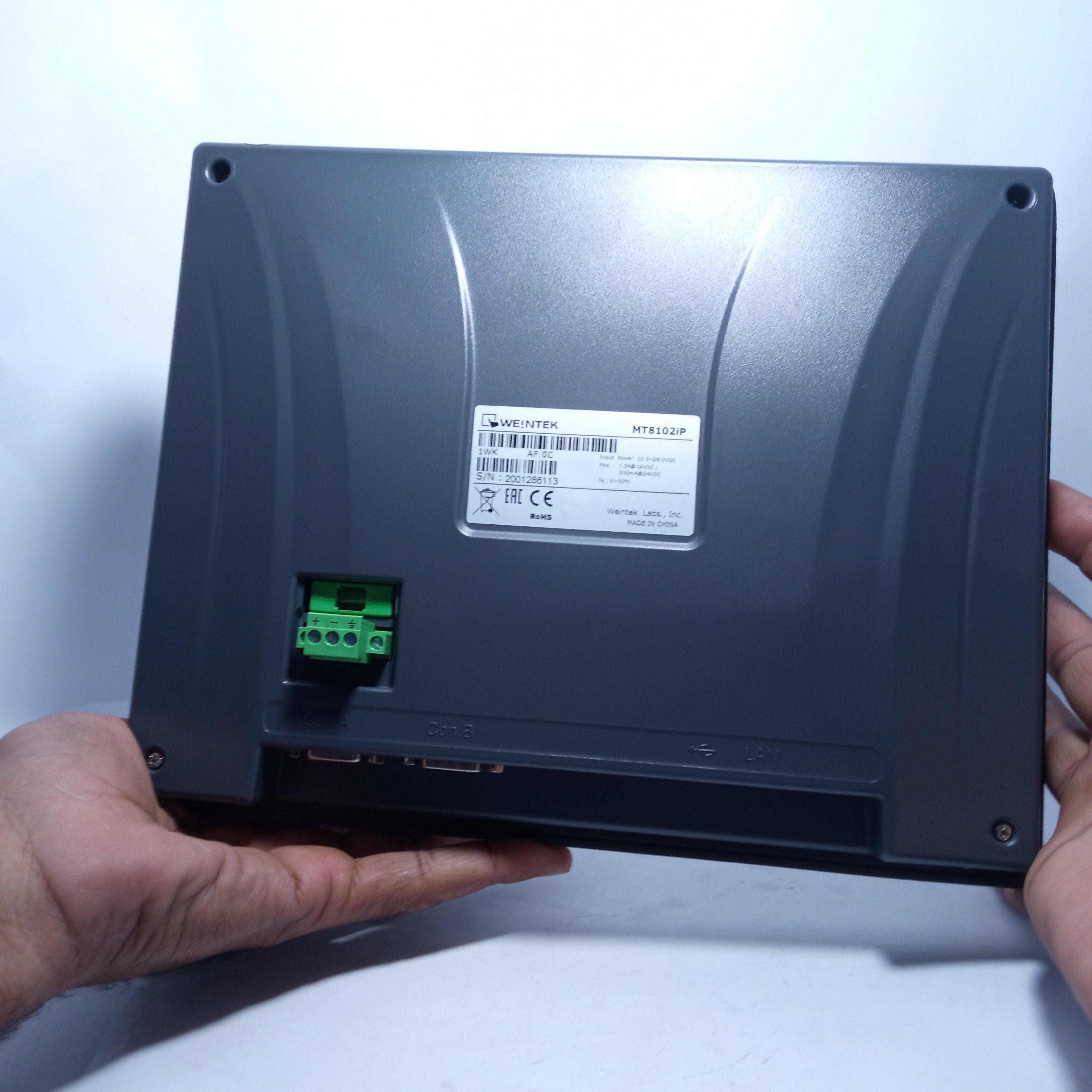

The 10 Inch Weintek HMI MT8102iP is a high-performance industrial Human Machine Interface (HMI) designed for reliable monitoring and control of automation systems. Featuring a 10-inch color touch screen, this HMI provides a clear, user-friendly interface for interacting with PLCs, inverters, and industrial machines.
Manufactured by Weintek, a globally trusted brand in industrial HMI solutions, the MT8102iP offers stable performance, fast response, and excellent compatibility with multiple PLC brands. Its rugged design makes it suitable for harsh industrial environments, ensuring long service life and dependable operation.
This HMI panel is widely used in factory automation, production lines, packaging machines, CNC systems, conveyors, and process control applications. The intuitive touch interface improves operational efficiency by allowing operators to monitor data, control processes, and troubleshoot systems easily.
Easy to install and program, the Weintek MT8102iP 10” HMI is an ideal choice for industrial automation projects across Pakistan.
Features:
-
Large 10-inch color touch screen display
-
Fast and responsive touch operation
-
Compatible with multiple PLC brands
-
Industrial-grade durable design
-
Easy integration in automation systems
Specification:
- Display Display 10.1” TFT
- Resolution 1024 x 600
- Brightness (cd/m2) 350
- Contrast Ratio 500:1
- Backlight Type LED
- Backlight Life Time >20,000 hrs.
- Colors 16.7M
- LCD Viewing Angle (T/B/L/R) 60/60/70/70
- Touch Panel Type 4-wire Resistive Type
- Accuracy Active Area Length (X)±2%, Width(Y)±2%
- Memory Flash 128 MB
- RAM 128 MB
- Processor ARM RISC 528MHz

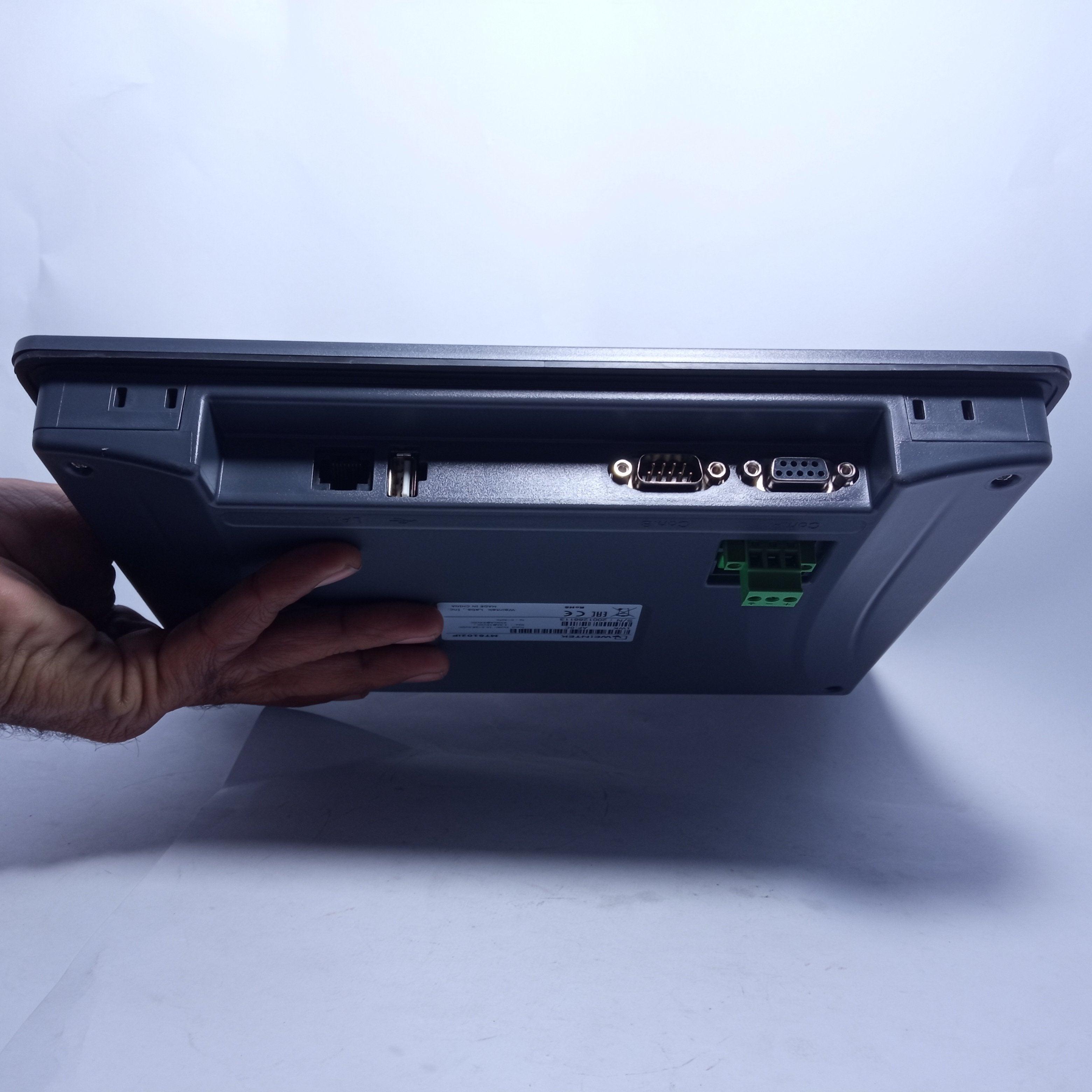

- I/O Port
- SD Card Slot N/A
- USB Host USB 2.0 x 1
- USB Client N/A
- Ethernet 10/100 Base-T x 1
- COM Port Con.A: COM2 RS-485 2W/4W, COM3 RS-485 2W
- Con.B: COM1 RS-232 4W, COM3 RS-232 2W*
- RS-485 Dual Isolation N/A
- CAN Bus N/A
- HDMI N/A
- Audio Output N/A
- Video Input N/A
- RTC Built-in
- Power
- Input Power 10.5 ~ 28VDC
- Power Isolation Built-in
- Power Consumption 1.3A@12VDC ; 650mA@24VDC
- Voltage Resistance 500VAC (1 min.)
- Isolation Resistance Exceed 50M? at 500VDC
- Vibration Endurance 10 to 25Hz (X, Y, Z direction 2G 30 minutes)
PCB Coating N/A Enclosure Plastic Dimensions WxHxD 271 x 213 x 36.4 mm Panel Cutout 260 x 202 mm Weight Approx. 1 kg Mount Panel mount Environment Protection Structure NEMA4 / IP65 Compliant Front Panel Storage Temperature -20° ~ 60°C (-4° ~ 140°F) Operating Temperature 0° ~ 50°C (32° ~ 122°F) Relative Humidity 10% ~ 90% (non-condensing) Certificate CE CE marked Software EasyBuilder Pro *Only Tx & Rx (no RTS/CTS) may be used for COM1 RS-232 when COM3 RS-232 is also used. HMI with 10.1" TFT LCD Display
Uses:
-
PLC-based automation systems
-
Industrial machine control panels
-
Production and assembly lines
-
Packaging and conveyor systems
-
Process monitoring and control
Industryparts.pk is the Best Online Shopping website for 10" Weintek HMI MT8102iP in Pakistan. Here you get 10" Weintek HMI MT8102iP at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
Package Includes

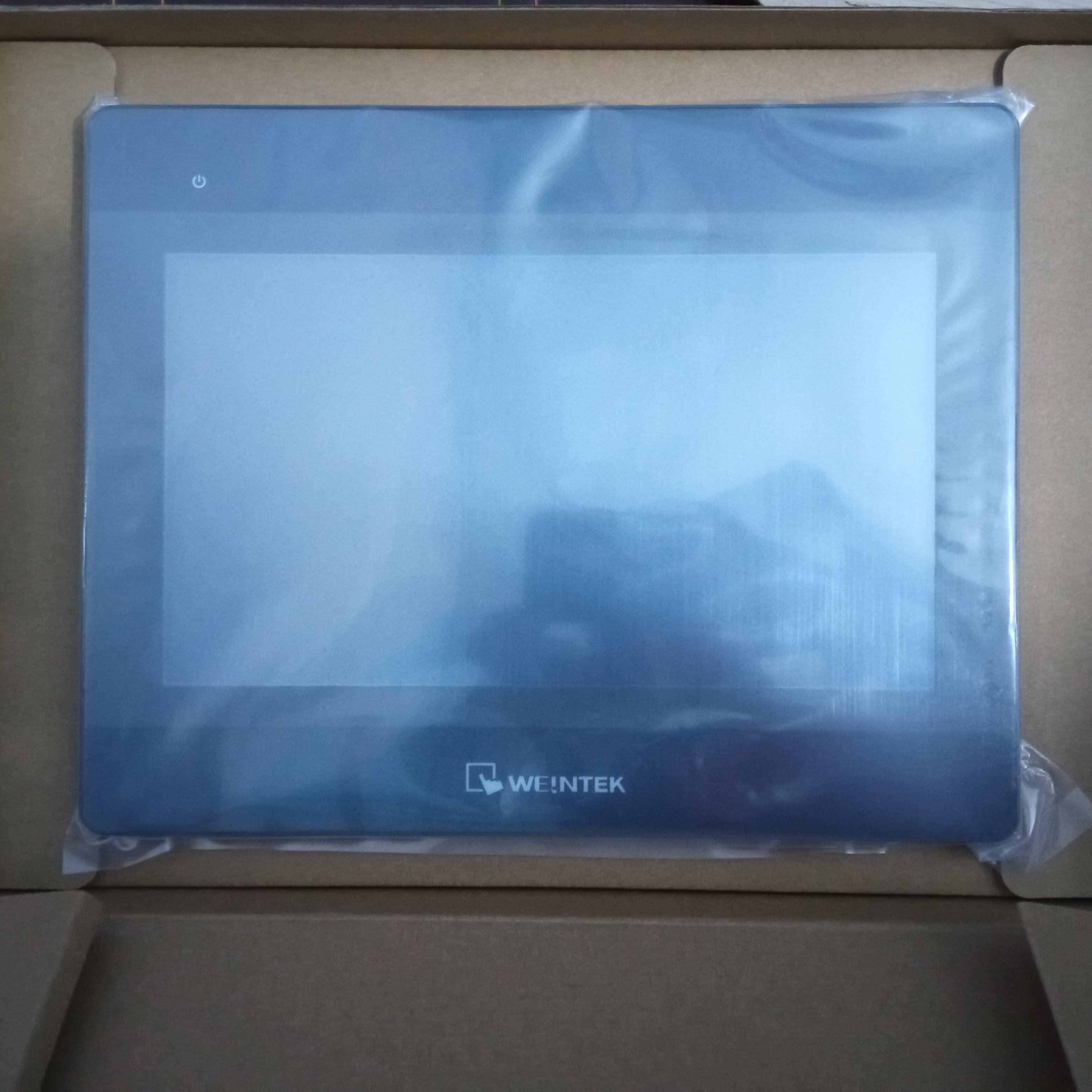

1 x 10" Weintek HMI MT8102iP
