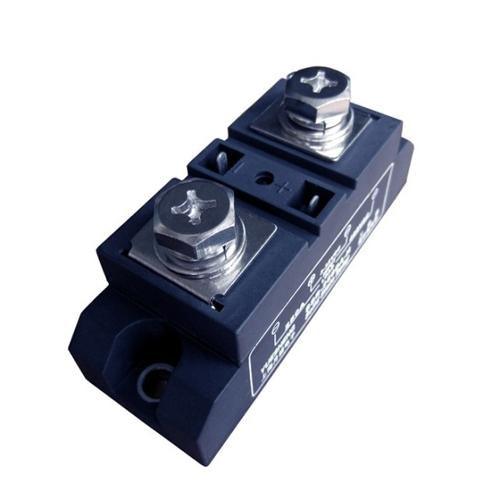

A cheap yet reliable industrial solid-state relay (SSR), is available with 80 Amp, 100 Amp, and 120 Amp load current. This DC to AC SSR is an ideal module for automatic control systems like petrochemical equipment, pharmaceutical machines, food machines, packaging machines, etc., especially suitable for corrosive, humid, dusty, and other harsh environments.

Specification:

• Model GYSSR80DA(H2) GYSSR100DA(H2) GYSSR200DA(H2)
• Control Voltage 3-32VDC
• Control Current DC 7-32mA
• Load Current 80A 100A 120A
• Load Voltage 24-600V AC
• On-State Voltage Drop ≤1.5V
• Off-State Leakage Current ≤4mA
• Off-State Time ≤10mS
• Dielectric Strength 2500V AC
• Insulation Resistance 1000MΩ/ 500V DC
• Ambient Temperature -20 ~ +70℃
• Mounting Method Bolt Fixing
• Working Indicator LED
• Weight 145g
• Dimension (L*W*H) 94*25*38mm

Dimension (Unit: mm)

Wiring Diagram

Operation Note

1. For the restive load, it can not exceed 60% of the rated current of the SSR.
2. For the inductive or capacities load, it can not exceed 40% of the rated current of the SSR.
3. For the electric motor, it can not exceed 20% of the rated current of the SSR.
4. A proper radiator or heat sink should be equipped for the industrial solid-state relay. If the load cooling condition is not good, it is necessary to leave some margin. Avoid the load short circuit because over current and short circuits are the main causes of permanent damage to the internal SCR of the SSR.
5. Overcurrent protection: Using a fast fuse and air switch is one of the methods for overcurrent protection; the fuse is also available for small capacity.
6. Overvoltage protection: It can adopt the parallel voltage-dependent resistor (MOV). The MOV area decides the absorption power, and its thickness decides the protective voltage value. Generally, 471/10D voltage-dependent resistor is suitable for 220V series SSR, 681/10D voltage-dependent resistor for 380V series SSR, and 821/10D voltage-dependent resistor for 480V series SSR.

Tips: Usage of Solid State Relay – Capacitive Load

Although the capacitive load is not very common, the solid-state relay will also be used for it sometimes. Much attention should be paid to the low-impedance capacitive load, and the di/dt of the SSR can not be exceeded. If there is no extra limitation to the impedance, the capacitive load di/dt can approach infinity during powering. It is a very useful way to limit the capacitive load di/dt by zero-crossing switching type SSR. When using a solid-state relay, the safety range of maximum blocking voltage should be considered. If it discharges near the peak of the line voltage, it will cause a destructive di/dt value, which will easily make the load breaker, so the transient voltage of the capacitive load must be limited. For a large capacitive load, it is necessary to limit the di/it within the stipulated value by series circuit impedance, which can protect the SSR from suffering the accidental yet unavoidable high transient voltage.

Industryparts.pk is the Online Shopping website for industrial Solid State Relay 200 DA, DC to AC SSR. Here you get industrial Solid State Relay 200 DA, DC to AC SSR at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Include Package

1 x Industrial Solid State Relay 200 DA, DC to AC SSR
