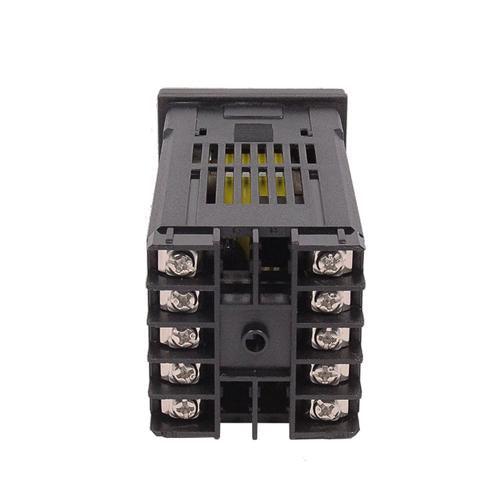

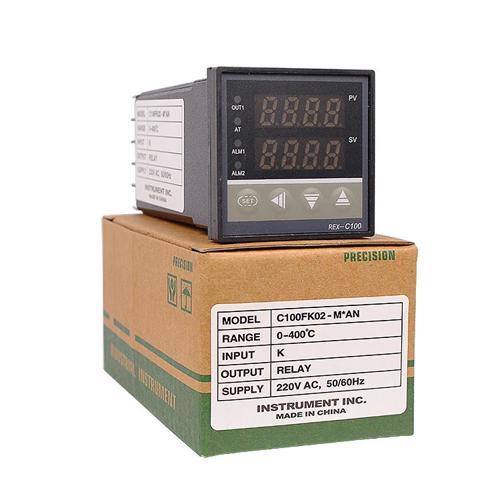

Dual Digital Rkc Pid Temperature Controller Rex-C100 Relay Output

SKU:BR4844

Regular price Rs 2,500
Regular price Rs 2,500 Sale price Rs 2,500
Sale Sold out


This REX-C100 110-240V Digital PID Temperature Controller Kit features an all input and relay output design. Two rows of the 4-digit display allow the user to have a clear view of process value (PV) and setting value (SV). It also provides LED indicators of output, alarm, and self-tuning control. Crafted from high-grade materials, it is tough and durable for long-lasting use. With high quality and stable performance, it surely is worth your investment. Click and order now!

Features:

  • Output and self-tuning can be indicated by LED
  • Accurate temperature control

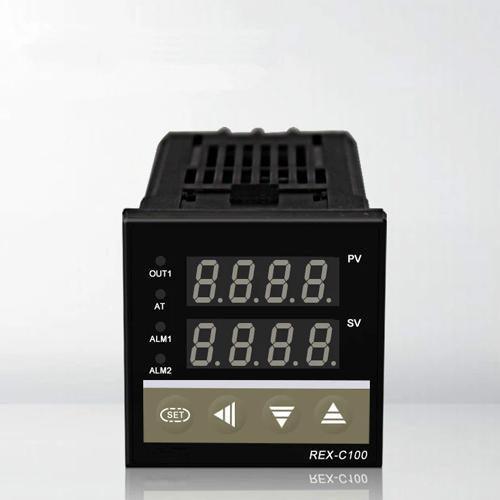

  • Two rows of the 4-digit display show process value (PV) and setting value (SV)
  • LED indicators of output, alarm, and self-tuning control
  • High quality, stable performance
  • Support all input and relay output, with alarm

Specifications:

  • Product model: REX-C100FK02-M*AN
  • Output: RELAY
  • Dimensions:about 48mm×48mm×110mm(APP)
  • Measuring accuracy: ±0.5%FS
  • Cold-end compensation tolerance: ±2 Celsius (can be modified by software in 0~50 Celsius )
  • Resolution: 14 bit
  • Sampling cycle: 0.5 Sec
  • Process value (PV), Setting value (SV)
  • Output, alarm, and self-tuning can be indicated by LED
  • PIN control (including ON/OFF, step-type PID, and continuous PID)
  • Self-tuning control
  • Relay output: contact capacity 250V AC 3A (resistive load)
  • Alarm function output: 2 way
  • Contact capacity of output: 250V AC 3A (resistive load)
  • Setting value (SV): identical to measuring range (PV)
  • Proportional band (P): 0~full range (ON/OFF control when set to 0)
  • Detective temperature range:0 to 400 Celsius
  • Insulation resistance: >50M ohm(500V DC)
  • Insulation resistance: 1500V AC/min
  • Power Consumption: 10 VA
  • Service environment: 0~50 Celsius,
  • environment with no corrosive gas 30~85% RH

Industryparts.pk is the Best Online Shopping website for Dual Digital Rkc Pid Temperature Controller Rex-C100 Relay Output. Here you get Dual Digital Rkc Pid Temperature Controller Rex-C100 Relay Output at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package Includes:

1 x Dual Digital Rkc Pid Temperature Controller Rex-C100 Relay/SSR Output
